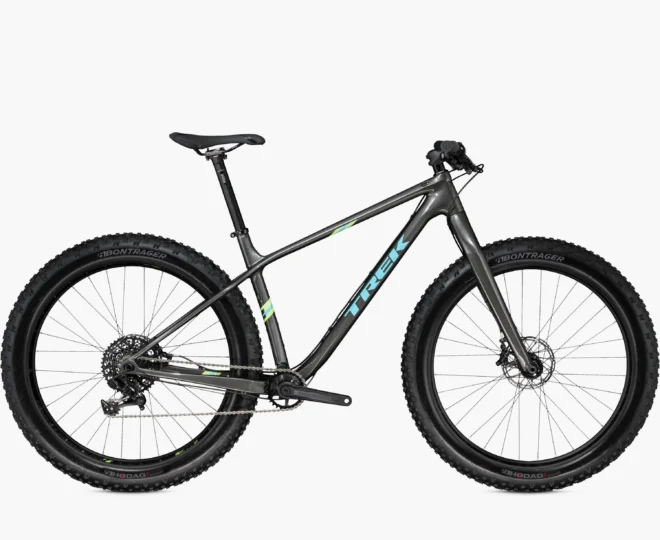

2016 Trek Farley 9.6

Archived: 2016 Trek Farley 9.6 · Fat Bike · Published sizes: 15.5, 17.5, 19.5, 21.5"

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: OCLV Mountain Carbon, E2 tapered head tube, internal derailleur & dropper post routing, Carbon Armor, PF121, 197mm Stranglehold adjustable thru axle dropouts · Fork: · Aluminum

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Group: SRAM GX1 · Shifters: SRAM GX1, 11 speed · Rear derailleur: SRAM GX1, Type 2 · Crankset: Race Face Aeffect, 28T · Bottom bracket: PF121 · Rear cogs: SRAM XG-1150, 10-42, 11 speed · Chain: SRAM PC 1130

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Avid DB 3 hydraulic disc

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 27.5 · Rims: Bontrager Jackalope Tubeless Ready, 80mm rim · Hubs: 150x15 front, 197x12 rear · Front tire: Bontrager Hodag, Tubeless Ready, 120tpi, aramid bead, 27.5x3.8"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: FSA IS-2 carbon, E2, sealed alloy cartridge · Handlebar: Bontrager Race Lite, 31.8mm, 15mm rise · Stem: Bontrager Elite, 31.8mm, 7 degree, Blendr compatible · Seatpost: Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset · Saddle: Bontrager Evoke 2, chromoly rails

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
