Uses front tire 700C×25; rear size isn’t listed.
Velopedia Bicycle Archive

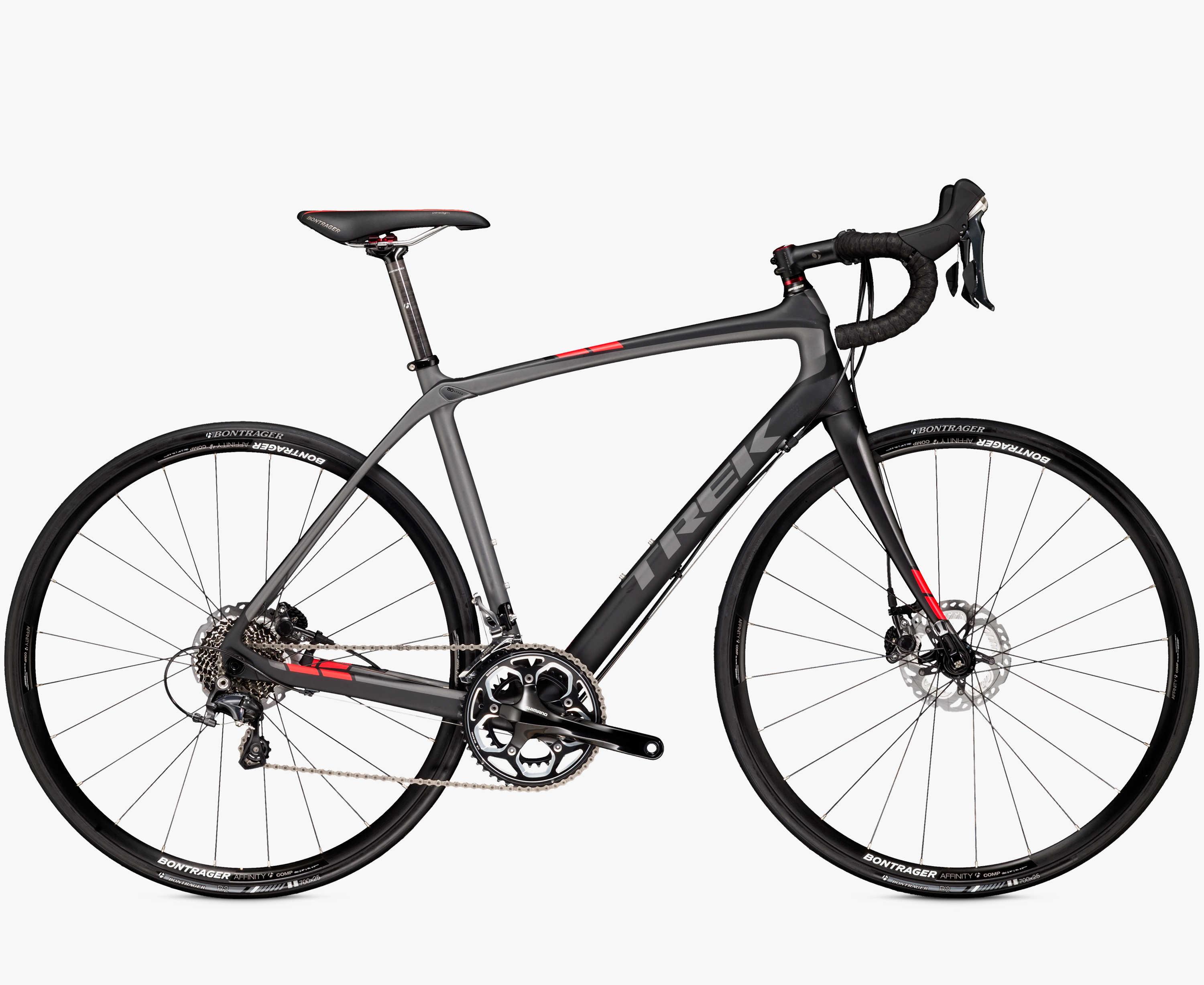

2016 Trek Domane 4.5 Disc
Original specifications: Shimano Ultegra · 11-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #1540674- Model year
- 2016
- Category
- Road
- Original MSRP
- $3,099.99
- Sizes
- 50, 52, 54, 56, 58, 60, 62cm
- Colors
- Matte Trek Black/Dnister Black/Viper Red
- In this record
- 21 specifications · archived image · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2016 archived details
- Published colors
- Matte Trek Black/Dnister Black/Viper Red
- Frame
- Carbon Fiber
- Original equipment
- Shimano Ultegra mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCarbon Fiber · Shimano Ultegra mix · 700c
Frameset
| Frame Construction | 400 Series OCLV Carbon, IsoSpeed, Power Transfer Construction, disc balanced post mount, 142x12 Closed Convert dropout, hidden fender mounts, E2 tapered head tube, BB90, DuoTrap compatible, 3S chain keeper |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | IsoSpeed |
| Fork Material | Carbon Fiber |
Drivetrain
| Component Group | Shimano Ultegra mix |
|---|---|
| Shifters | Shimano RS685 hydraulic, 11 speed |
| Front Derailleur | Shimano |
| Rear Derailleur | Shimano Ultegra |
| Crankset | Shimano RS500, 50/34 (compact) |
| Rear Cogs | Shimano 105, 11-32, 11 speed |
| Chain | Shimano 105 |
Brakes
| Brakes | Shimano RS685 hydraulic disc, 160mm rotors |
|---|
Cockpit & Contact Points
| Headset | FSA Integrated, sealed cartridge bearings, 1-1/8" top, 1.5" bottom |
|---|---|
| Handlebar | Bontrager Race Lite IsoZone, VR-CF, 31.8mm |
| Stem | Bontrager Elite, 31.8mm, 7 degree, w/Blendr computer & light mounts |
| Saddle | Bontrager Paradigm R, hollow chromoly rails |
| Seatpost | Bontrager carbon, 2-bolt head, 27.2mm, 8mm offset |
Wheels & Tires
| Hubs | 15mm front hub, 142x12 rear hub |
|---|---|
| Rims | Bontrager Affinity Comp Tubeless Ready |
| Front Tire | Bontrager R2 Hard-Case Lite, aramid bead, 700x25c |
| Wheel Size | 700c |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Shimano SLX/105 CN-HG601 11-Speed Chain
Replacement option
aramid bead, 700x25c

Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x25
700x25c
Replacement option
11-32, 11 speed
More parts (8)Fewer parts
hollow chromoly rails
50/34 (compact)
VR-CF, 31.8mm
31.8mm, 7 degree, w/Blendr computer & light mounts
2-bolt head, 27.2mm, 8mm offset
sealed cartridge bearings, 1-1/8" top, 1.5" bottom
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Bontrager R2 Hard-Case Lite, aramid bead, 700x25c
- Drivetrain
- 11-speed
- Seatpost diameter
- 27.2 mm
Equipment inspection checks 11 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: 400 Series OCLV Carbon, IsoSpeed, Power Transfer Construction, disc balanced post mount, 142x12 Closed Convert dropout, hidden fender mounts, E2 tapered head tube, BB90, DuoTrap compatible, 3S chain keeper · Fork: IsoSpeed · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Ultegra mix · Shifters: Shimano RS685 hydraulic, 11 speed · Front derailleur: Shimano · Rear derailleur: Shimano Ultegra · Crankset: Shimano RS500, 50/34 (compact) · Rear cogs: Shimano 105, 11-32, 11 speed · Chain: Shimano 105
Brakes
Inspect the brakes →Archived: Brakes: Shimano RS685 hydraulic disc, 160mm rotors
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Rims: Bontrager Affinity Comp Tubeless Ready · Hubs: 15mm front hub, 142x12 rear hub · Front tire: Bontrager R2 Hard-Case Lite, aramid bead, 700x25c
Controls and contact points
Archived: Headset: FSA Integrated, sealed cartridge bearings, 1-1/8" top, 1.5" bottom · Handlebar: Bontrager Race Lite IsoZone, VR-CF, 31.8mm · Stem: Bontrager Elite, 31.8mm, 7 degree, w/Blendr computer & light mounts · Seatpost: Bontrager carbon, 2-bolt head, 27.2mm, 8mm offset · Saddle: Bontrager Paradigm R, hollow chromoly rails
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
