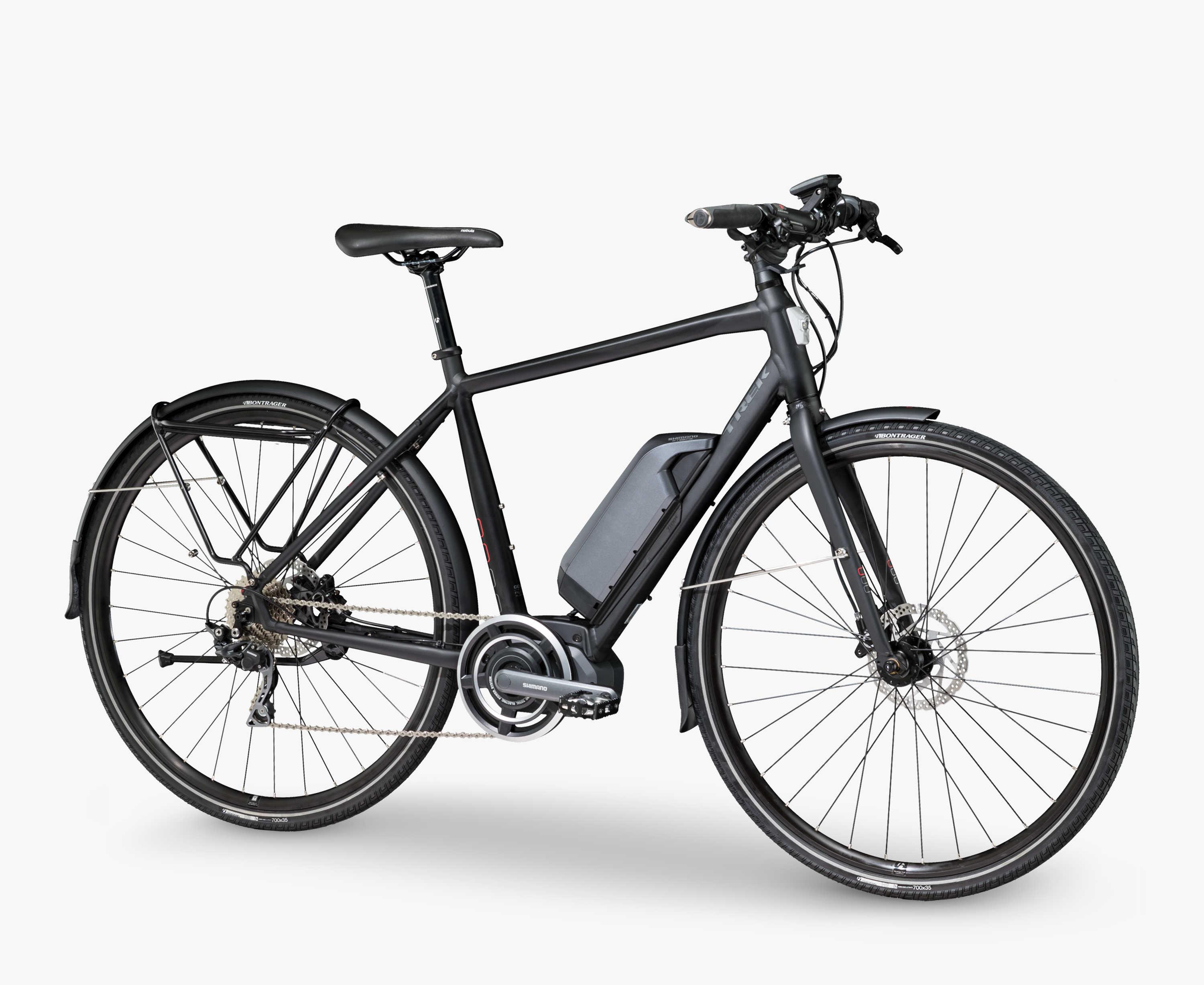

2016 Trek Conduit+

Original specifications: Shimano Deore · 10-speed rear derailleur · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1306545
Model year
2016
Category
Hybrid
Original MSRP
$2,999.99
Sizes
15, 17.5, 20, 22.5"
Colors
Matt Trek Black
In this record
18 specifications · 2 archived images · original MSRP
Sponsored affiliate link
Original buildAluminum · Shimano mix · 700c

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

1517.52022.5"

Published colors

Matt Trek Black

Frameset

Frame ConstructionAlpha Gold Aluminum, custom designed for Shimano STEPS system, with Lync on-board lighting system, internal cable routing
Frame MaterialAluminum

Drivetrain

Component GroupShimano mix
ShiftersShimano Deore, 10 speed
Rear DerailleurShimano Deore, Shadow Plus
CranksetShimano, for STEPS
Rear CogsShimano HG62, 11-32, 10 speed
ChainKMC X10e

Brakes

BrakesShimano M355 hydraulic disc

Cockpit & Contact Points

HeadsetVP Slimstak, sealed semi-cartridge bearings
HandlebarBontrager alloy, 31.8mm, 15mm rise
StemBontrager Elite, 31.8mm, 7 degree, comes w/computer & light mounts
SaddleBontrager H1
SeatpostBontrager alloy, 2-bolt head, 27.2mm, 8mm offset

Wheels & Tires

HubsAlloy
RimsAlloy disc
Front TireBontrager H2 Hard-Case Ultimate, reflective sidewall, 700x35c
Wheel Size700c

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
Bontrager H2 Hard-Case Ultimate

reflective sidewall, 700x35c

Retailer offers
Cassette / rear cogs · Original
Shimano HG62

11-32, 10 speed

Saddle · Original
Bontrager H1
More parts (5)Fewer parts
Crankset · Original
Shimano

for STEPS

Rear derailleur · Original
Shimano Deore

Shadow Plus

Shifters · Original
Shimano Deore

10 speed

Stem · Original
Bontrager Elite

31.8mm, 7 degree, comes w/computer & light mounts

Seatpost · Original
Bontrager alloy

2-bolt head, 27.2mm, 8mm offset

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager H2 Hard-Case Ultimate, reflective sidewall, 700x35c
Drivetrain
10-speed
Seatpost diameter
27.2 mm
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Alpha Gold Aluminum, custom designed for Shimano STEPS system, with Lync on-board lighting system, internal cable routing

Archived: Group: Shimano mix · Shifters: Shimano Deore, 10 speed · Rear derailleur: Shimano Deore, Shadow Plus · Crankset: Shimano, for STEPS · Rear cogs: Shimano HG62, 11-32, 10 speed · Chain: KMC X10e

Archived: Brakes: Shimano M355 hydraulic disc

Archived: Wheel size: 700c · Rims: Alloy disc · Hubs: Alloy · Front tire: Bontrager H2 Hard-Case Ultimate, reflective sidewall, 700x35c

Controls and contact points

Archived: Headset: VP Slimstak, sealed semi-cartridge bearings · Handlebar: Bontrager alloy, 31.8mm, 15mm rise · Stem: Bontrager Elite, 31.8mm, 7 degree, comes w/computer & light mounts · Seatpost: Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset · Saddle: Bontrager H1

Archived: Trek Conduit+ · electric-assist identification
