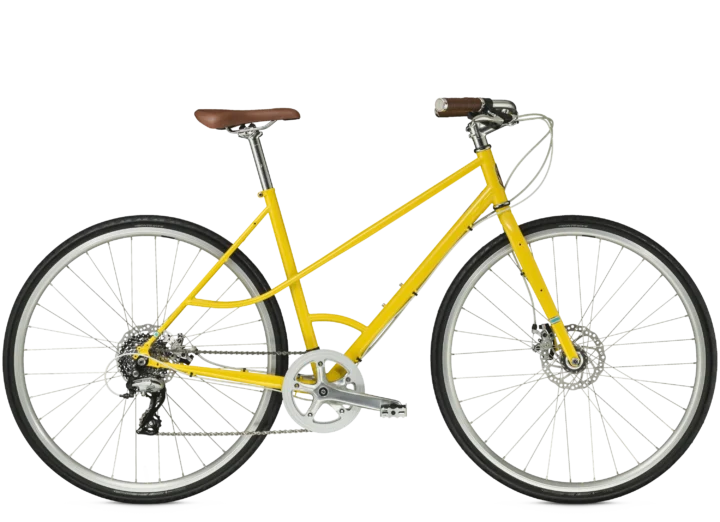

2015 Trek Chelsea 8
Urban/Commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $609.99
- Sizes
- 49, 53, 56cm
- Colors
- Canary Yellow
- Archive ID
- 1299255
Current market
Checking current listings…Frameset
| Frame Construction | Trek Custom Steel Mixtie w/inboard rear disc brake mounts, rack & fender mounts |
|---|
| Frame Material | Steel |
|---|
| Fork | High-tensile steel |
|---|
| Fork Material | High tensile Steel |
|---|
Drivetrain
| Component Group | Commuter mix |
|---|
| Shifters | Shimano Altus M310, 8 speed |
|---|
| Front Derailleur | None |
|---|
| Rear Derailleur | Shimano Acera |
|---|
| Crankset | Forged alloy 3 piece, 45T |
|---|
| Rear Cogs | SRAM PG-830, 11-32, 8 speed |
|---|
| Chain | KMC X9 |
|---|
| Pedals | Nylon body w/alloy cage |
|---|
Brakes
| Brakes | Tektro Novela mechanical disc brakes, 160mm rotors, Tektro adjustable-reach alloy levers |
|---|
Cockpit & Contact Points
| Headset | 1-1/8" Threadless |
|---|
| Handlebar | Bontrager Urban, 31.8mm, 25mm rise |
|---|
| Stem | Bontrager Race Lite, 31.8mm, 7 degree |
|---|
| Saddle | Bontrager H1 WSD |
|---|
| Seatpost | Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset |
|---|
Wheels & Tires
| Hubs | Formula DC20 alloy, Formula DC22 alloy |
|---|
| Rims | 32-hole double-walled alloy |
|---|
| Front Tire | Bontrager AW1 Hard-Case Lite, 700x32c |
|---|
| Wheel Size | 700c |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
