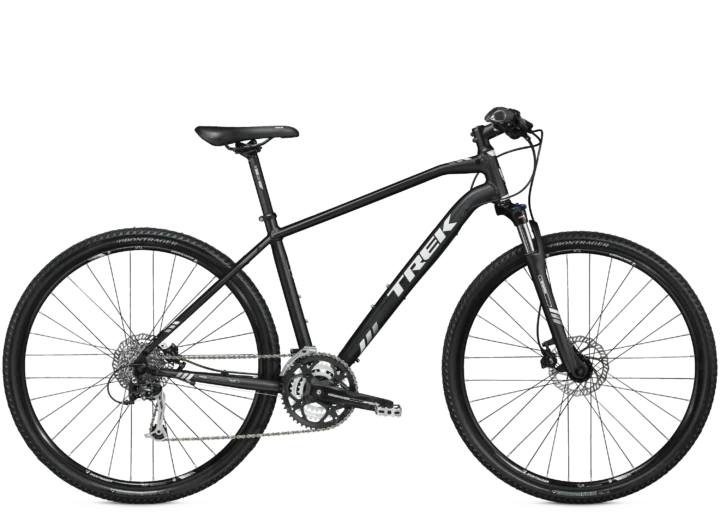

2015 Trek 8.4 DS

Original specifications: Shimano Alivio · 9-speed rear derailleur · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1206860
Model year
2015
Category
City & Commuter
Original MSRP
$879.99
Sizes
15.5, 17.5, 19, 21, 22.5"
Colors
Matte Trek Black/Trek White, Viper Red
In this record
21 specifications · 2 archived images · original MSRP
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2015 archived details

Published colors
Matte Trek Black/Trek White, Viper Red
Frame
Aluminum
Original equipment
Commuter mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildAluminum · Commuter mix · 700c

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

15.517.5192122.5"

Published colors

Matte Trek Black/Trek WhiteViper Red

Frameset

Frame ConstructionAlpha Gold Aluminum, DuoTrap S compatible, rack and fender mounts
Frame MaterialAluminum
ForkSR Suntour NEX, coil spring, preload, hydraulic lockout, 63mm travel

Drivetrain

Component GroupCommuter mix
ShiftersShimano Acera M390, 9 speed
Front DerailleurShimano Acera
Rear DerailleurShimano Alivio
CranksetFSA Dyna Drive, 48/36/26
Rear CogsSRAM PG-950 11-32, 9 speed
ChainKMC X9
PedalsNylon body w/alloy cage, toe-clip/strap

Brakes

BrakesTektro HDC-300 hydraulic disc brakes w/Tektro hydraulic levers

Cockpit & Contact Points

HeadsetCartridge bearings, sealed
HandlebarBontrager Low Riser, 31.8mm, 15mm rise
StemBontrager Elite Blendr, w/computer & light mounts, 31.8mm, 7 degree
SaddleBontrager H1
SeatpostBontrager SSR, 2-bolt clamp, 27.2mm, 12mm offset

Wheels & Tires

HubsFormula DC20 alloy, Formula DC22 alloy
RimsBontrager TLR disc, 32-hole
Front TireBontrager LT3, 700x38c
Wheel Size700c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes48/36/26T · 11–32T · 9-speed
Lowest0.81:1 Highest4.36:1 Total range537%
Estimated speed At 90 RPM Lowest gear6.0 mph Highest gear32.1 mph

Uses front tire 700C×38; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Cassette / rear cogs · Original
SRAM PG-950 11-32

9 speed

Retailer offers
Chain · Original
KMC X9
Front tire · Original
Bontrager LT3

700x38c

Replacement search: 700cx38 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (9)Fewer parts
Saddle · Original
Bontrager H1
Crankset · Original
FSA Dyna Drive

48/36/26

Front derailleur · Original
Shimano Acera
Rear derailleur · Original
Shimano Alivio
Shifters · Original
Shimano Acera M390

9 speed

Stem · Original
Bontrager Elite Blendr

w/computer & light mounts, 31.8mm, 7 degree

Seatpost · Original
Bontrager SSR

2-bolt clamp, 27.2mm, 12mm offset

Rims · Original
Bontrager TLR disc

32-hole

Hubs · Original
Formula DC20 alloy

Formula DC22 alloy

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager LT3, 700x38c
Drivetrain
9-speed
Seatpost diameter
27.2 mm
Equipment inspection checks 12 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 12 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Alpha Gold Aluminum, DuoTrap S compatible, rack and fender mounts · Fork: SR Suntour NEX, coil spring, preload, hydraulic lockout, 63mm travel

Archived: Fork: SR Suntour NEX, coil spring, preload, hydraulic lockout, 63mm travel

Archived: Group: Commuter mix · Shifters: Shimano Acera M390, 9 speed · Front derailleur: Shimano Acera · Rear derailleur: Shimano Alivio · Crankset: FSA Dyna Drive, 48/36/26 · Rear cogs: SRAM PG-950 11-32, 9 speed · Chain: KMC X9

Archived: Brakes: Tektro HDC-300 hydraulic disc brakes w/Tektro hydraulic levers

Archived: Wheel size: 700c · Rims: Bontrager TLR disc, 32-hole · Hubs: Formula DC20 alloy, Formula DC22 alloy · Front tire: Bontrager LT3, 700x38c

Controls and contact points

Archived: Headset: Cartridge bearings, sealed · Handlebar: Bontrager Low Riser, 31.8mm, 15mm rise · Stem: Bontrager Elite Blendr, w/computer & light mounts, 31.8mm, 7 degree · Seatpost: Bontrager SSR, 2-bolt clamp, 27.2mm, 12mm offset · Saddle: Bontrager H1 · Pedals: Nylon body w/alloy cage, toe-clip/strap
