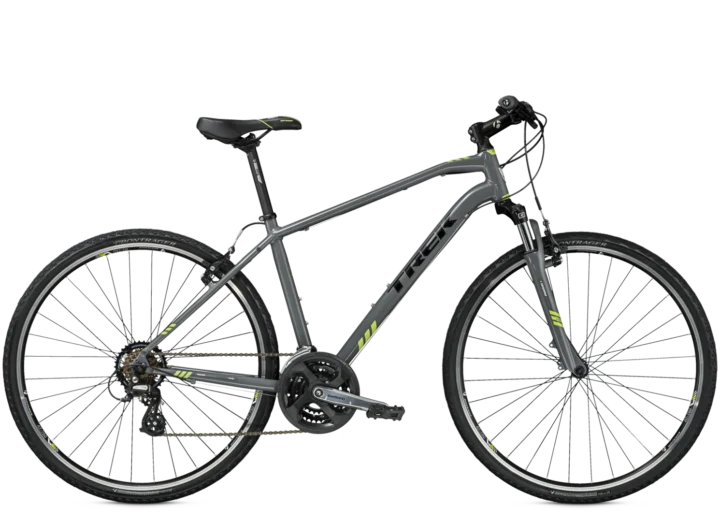

2015 Trek 8.2 DS

Original specifications: Shimano Altus · 7-speed rear derailleur · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1106708
Model year
2015
Category
City & Commuter
Original MSRP
$549.99
Sizes
15.5, 17.5, 19, 21, 22.5"
Colors
Ti/Viper Red, Paramount Grey/Volt Green
In this record
22 specifications · 2 archived images · original MSRP
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2015 archived details

Published colors
Ti/Viper Red, Paramount Grey/Volt Green
Frame
Aluminum
Original equipment
Commuter mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAluminum · Commuter mix · 700c

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

15.517.5192122.5"

Published colors

Ti/Viper RedParamount Grey/Volt Green

Frameset

Frame ConstructionAlpha Gold Aluminum, DuoTrap S compatible, rack and fender mounts
Frame MaterialAluminum
ForkSR Suntour NEX, coil spring, preload, 63mm travel
Fork MaterialSuspension

Drivetrain

Component GroupCommuter mix
ShiftersShimano Altus EF51, 7 speed
Front DerailleurShimano Tourney
Rear DerailleurShimano Altus M310
CranksetShimano M131, 48/38/28 w/chainguard
Rear CogsSunRace Freewheel 14-34, 7 speed
ChainKMC Z51
PedalsWellgo nylon platform

Brakes

BrakesTektro alloy linear-pull brakes, Shimano Altus levers

Cockpit & Contact Points

Headset1-1/8" semi-cartridge bearings
HandlebarBontrager Riser, steel, 30mm rise
StemBontrager Approved, 25.4mm, 25 degree
SaddleBontrager SSR
SeatpostBontrager SSR, 27.2mm, 12mm offset

Wheels & Tires

HubsFormula FM21 alloy, Formula FM31 alloy
RimsBontrager AT-750 double-walled alloy
Front TireBontrager LT1, 700x38c
Wheel Size700c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes48/38/28T · 14–34T · 7-speed
Lowest0.82:1 Highest3.43:1 Total range416%
Estimated speed At 90 RPM Lowest gear6.1 mph Highest gear25.2 mph

Uses front tire 700C×38; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z51
Cassette / rear cogs · Original
SunRace Freewheel 14-34

7 speed

Front tire · Original
Bontrager LT1

700x38c

Replacement search: 700cx38 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (10)Fewer parts
Brake pads · Original
Tektro alloy linear-pull brakes

Shimano Altus levers

Saddle · Original
Bontrager SSR
Crankset · Original
Shimano M131

48/38/28 w/chainguard

Front derailleur · Original
Shimano Tourney
Rear derailleur · Original
Shimano Altus M310
Shifters · Original
Shimano Altus EF51

7 speed

Stem · Original
Bontrager Approved

25.4mm, 25 degree

Seatpost · Original
Bontrager SSR

27.2mm, 12mm offset

Rims · Original
Bontrager AT-750 double-walled alloy
Hubs · Original
Formula FM21 alloy

Formula FM31 alloy

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager LT1, 700x38c
Drivetrain
7-speed
Seatpost diameter
27.2 mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Alpha Gold Aluminum, DuoTrap S compatible, rack and fender mounts · Fork: SR Suntour NEX, coil spring, preload, 63mm travel · Suspension

Archived: Fork: SR Suntour NEX, coil spring, preload, 63mm travel

Archived: Group: Commuter mix · Shifters: Shimano Altus EF51, 7 speed · Front derailleur: Shimano Tourney · Rear derailleur: Shimano Altus M310 · Crankset: Shimano M131, 48/38/28 w/chainguard · Rear cogs: SunRace Freewheel 14-34, 7 speed · Chain: KMC Z51

Archived: Brakes: Tektro alloy linear-pull brakes, Shimano Altus levers

Archived: Wheel size: 700c · Rims: Bontrager AT-750 double-walled alloy · Hubs: Formula FM21 alloy, Formula FM31 alloy · Front tire: Bontrager LT1, 700x38c

Controls and contact points

Archived: Headset: 1-1/8" semi-cartridge bearings · Handlebar: Bontrager Riser, steel, 30mm rise · Stem: Bontrager Approved, 25.4mm, 25 degree · Seatpost: Bontrager SSR, 27.2mm, 12mm offset · Saddle: Bontrager SSR · Pedals: Wellgo nylon platform
