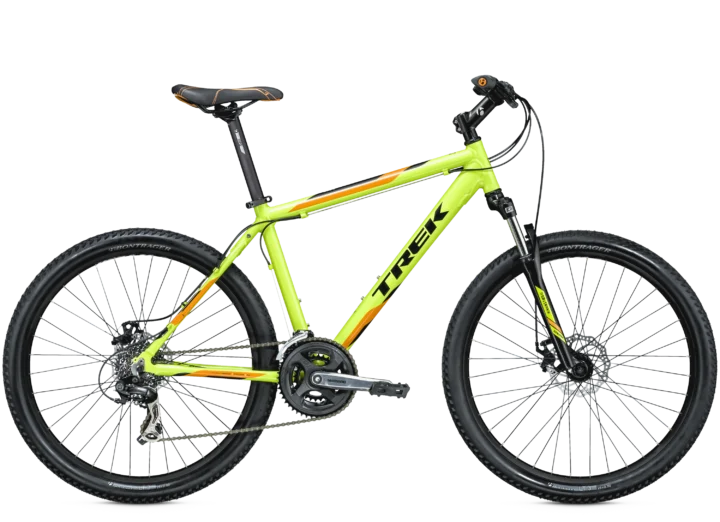

2015 Trek 3500 Disc
Original specifications: Shimano Tourney · 7-speed rear derailleur · 26 wheels.
Planning to sell? Draft your listing
At a glance
Archive #1253391- Model year
- 2015
- Category
- Mountain
- Original MSRP
- $489.99
- Sizes
- 13, 16, 18, 19.5, 21, 22.5"
- Colors
- Volt Green, Black Titanite/Fastback Orange
- In this record
- 22 specifications · 2 archived images · original MSRP
Model history 3 other years
Browse other years
Compare side by side
Identification clues
2015 archived details
- Published colors
- Volt Green, Black Titanite/Fastback Orange
- Frame
- Aluminum
- Original equipment
- Mountian mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · Mountian mix · 26
Frameset
| Frame Construction | Alpha Silver Aluminum w/semi-integrated head tube, rack & fender mounts |
|---|---|
| Frame Material | Aluminum |
| Fork | SR Suntour M-3030, coil spring, preload, 75mm travel |
| Fork Material | Suspension |
Drivetrain
| Component Group | Mountian mix |
|---|---|
| Shifters | Shimano Altus EF51, 7 speed |
| Front Derailleur | Shimano Tourney |
| Rear Derailleur | Shimano Tourney TX35 |
| Crankset | Shimano M131, 48/38/28 |
| Rear Cogs | SRAM PG-730 12-32, 7 speed |
| Chain | KMC Z51 |
| Pedals | Wellgo nylon platform |
Brakes
| Brakes | HL 280 mechanical disc brakes, Shimano Altus levers |
|---|
Cockpit & Contact Points
| Headset | 1-1/8" threadless |
|---|---|
| Handlebar | Bontrager Riser, 25.4mm, steel, 30mm rise |
| Stem | Bontrager Approved, 25.4mm, 25 degree |
| Saddle | Bontrager Evoke 1 |
| Seatpost | Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset |
Wheels & Tires
| Hubs | Formula DC20 alloy, Formula DC27 alloy |
|---|---|
| Rims | Bontrager AT-550 36-hole |
| Front Tire | Bontrager LT3, 26x2.0" |
| Wheel Size | 26 |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
26x2.0"
Replacement search: 26x2 bicycle tire Before ordering: Check rim type and tire clearance.More parts (9)Fewer parts
48/38/28
7 speed
25.4mm, 25 degree
2-bolt head, 31.6mm, 12mm offset
Formula DC27 alloy
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Bontrager LT3, 26x2.0"
- Drivetrain
- 7-speed
- Seatpost diameter
- 31.6 mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Alpha Silver Aluminum w/semi-integrated head tube, rack & fender mounts · Fork: SR Suntour M-3030, coil spring, preload, 75mm travel · Suspension
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour M-3030, coil spring, preload, 75mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountian mix · Shifters: Shimano Altus EF51, 7 speed · Front derailleur: Shimano Tourney · Rear derailleur: Shimano Tourney TX35 · Crankset: Shimano M131, 48/38/28 · Rear cogs: SRAM PG-730 12-32, 7 speed · Chain: KMC Z51
Brakes
Inspect the brakes →Archived: Brakes: HL 280 mechanical disc brakes, Shimano Altus levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26 · Rims: Bontrager AT-550 36-hole · Hubs: Formula DC20 alloy, Formula DC27 alloy · Front tire: Bontrager LT3, 26x2.0"
Controls and contact points
Archived: Headset: 1-1/8" threadless · Handlebar: Bontrager Riser, 25.4mm, steel, 30mm rise · Stem: Bontrager Approved, 25.4mm, 25 degree · Seatpost: Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset · Saddle: Bontrager Evoke 1 · Pedals: Wellgo nylon platform
