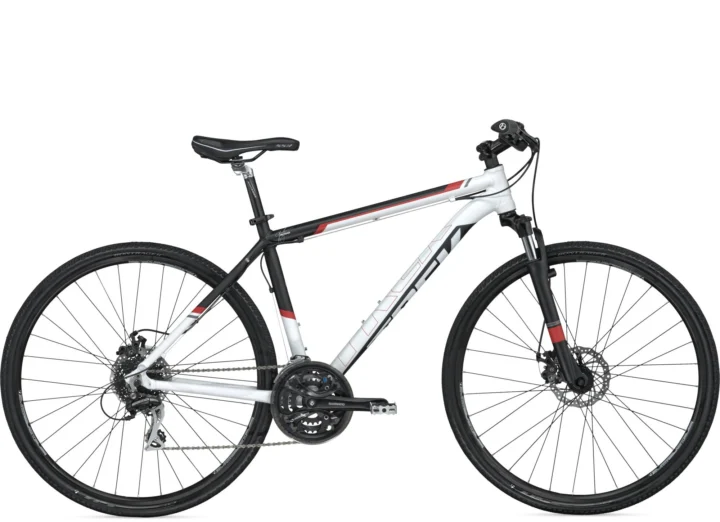

2012 Trek 8.3 DS

Original specifications.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #3059736
Model year
2012
Category
City & Commuter
Original MSRP
$579.99
Sizes
15, 17.5, 19, 21, 22.5
Colors
Matte Ti/Matte Black, Matte White/Matte Black
In this record
15 specifications · 2 archived images · original MSRP
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2012 archived details

Published colors
Matte Ti/Matte Black, Matte White/Matte Black
Frame
Alpha Gold Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildAlpha Gold Aluminum

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

1517.5192122.5

Published colors

Matte Ti/Matte BlackMatte White/Matte Black

Frameset

Frame MaterialAlpha Gold Aluminum
ForkSR Suntour NEX 4610 63mm

Drivetrain

ShiftersShimano Acera Rapidfire 8spd
Front DerailleurShimano Altus
Rear DerailleurShimano Acera 8spd
CranksetShimano Acera 48/36/26t
CassetteShimano HG-31 8spd 11-32
Pedalsnylon flat pedal

Brakes

BrakesTektro Novela mechanical disc

Cockpit & Contact Points

HandlebarBontrager Low Riser 25mm
StemBontrager Approved
SaddleBontrager SSR
SeatpostBontrager SSR

Wheels & Tires

RimsBontrager 750 disc, alloy
Front TireBontrager H5 700x38c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes48/36/26T · 11–32T · 8-speed
Lowest0.81:1 Highest4.36:1 Total range537%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Cassette · Original
Shimano HG-31 8spd 11-32
Front tire · Original
Bontrager H5 700x38c Replacement search: 700cx38 bicycle tire Before ordering: Check rim type and tire clearance.
Saddle · Original
Bontrager SSR
More parts (6)Fewer parts
Crankset · Original
Shimano Acera 48/36/26t
Front derailleur · Original
Shimano Altus
Rear derailleur · Original
Shimano Acera 8spd
Shifters · Original
Shimano Acera Rapidfire 8spd
Stem · Original
Bontrager Approved
Seatpost · Original
Bontrager SSR

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager H5 700x38c
Drivetrain
8-speed
Sponsored affiliate link
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Alpha Gold Aluminum · Fork: SR Suntour NEX 4610 63mm

Archived: Fork: SR Suntour NEX 4610 63mm

Archived: Shifters: Shimano Acera Rapidfire 8spd · Front derailleur: Shimano Altus · Rear derailleur: Shimano Acera 8spd · Crankset: Shimano Acera 48/36/26t · Cassette: Shimano HG-31 8spd 11-32

Archived: Brakes: Tektro Novela mechanical disc

Archived: Rims: Bontrager 750 disc, alloy · Front tire: Bontrager H5 700x38c

Controls and contact points

Archived: Handlebar: Bontrager Low Riser 25mm · Stem: Bontrager Approved · Seatpost: Bontrager SSR · Saddle: Bontrager SSR · Pedals: nylon flat pedal
