Velopedia Bicycle Archive

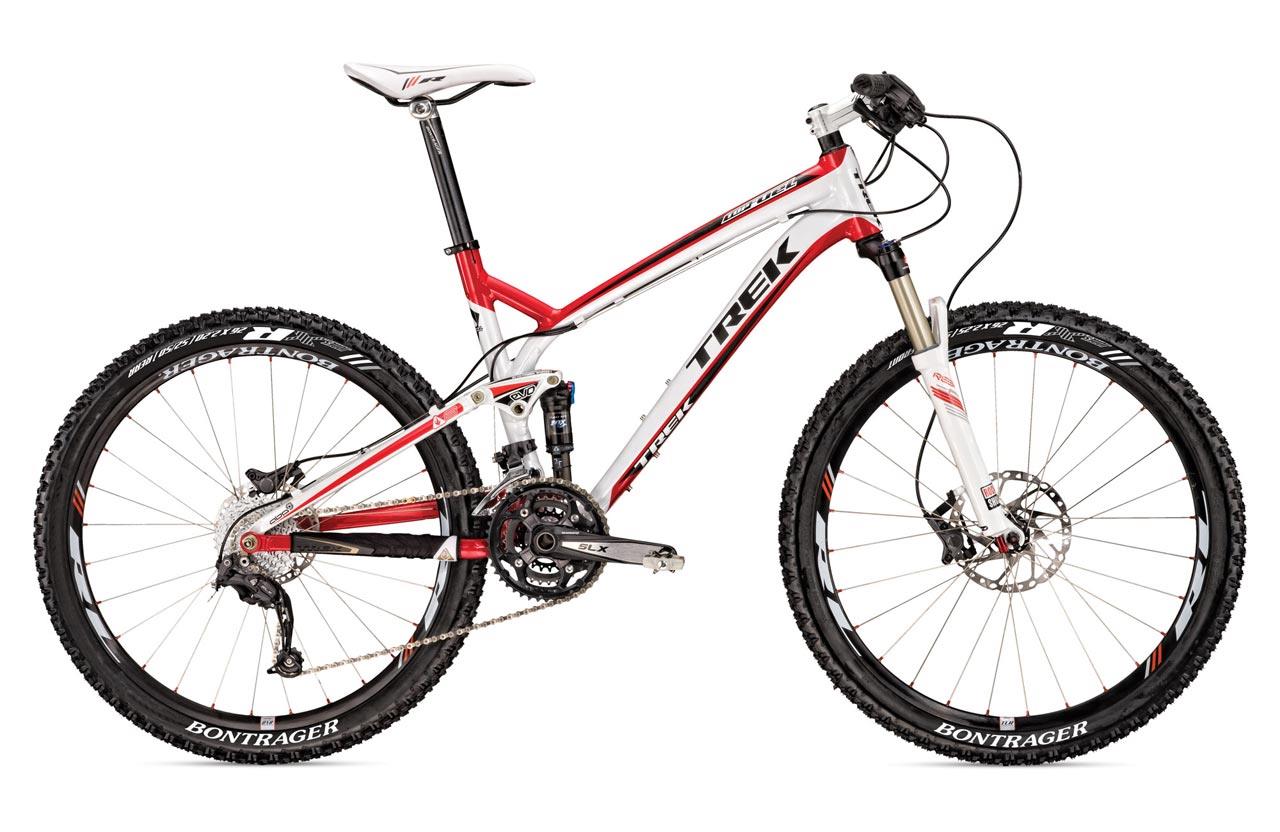

2010 Trek Top Fuel 8
Mountain bike, front & rear suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $3,149.99
- Sizes
- 15.5", 17.5", 18.5", 19.5", 21.5"
- Colors
- Chi Red/Pearl White
- Archive ID
- 19968
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Alpha Red Aluminum |
| Fork | RockShox Reba SL, 100mm travel |
| Fork Material | Magnesium/aluminum, single crown crown |
| Rear Shock | Fox Float RP2, 100mm travel |
Drivetrain
| Component Group | Shimano SLX mix |
|---|---|
| Shifters | Shimano SLX |
| Front Derailleur | Shimano SLX |
| Rear Derailleur | Shimano SLX Shadow |
| Crankset | Shimano SLX, 44/32/22 teeth |
| Cassette | SRAM PG-970 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Pedals | Crank Brothers Custom Candy C |
Brakes
| Brakes | Shimano SLX disc brakes, Shimano SLX Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Cane Creek ZS-3 |
|---|---|
| Handlebar | Bontrager Race Flat |
| Handlebar Extensions | Not included |
| Stem | Bontrager Race Lite |
| Saddle | Bontrager Race |
| Seatpost | Bontrager Race Lite, 31.6mm diameter |
Wheels & Tires
| Hubs | Bontrager Race Lite Centerlock Disc |
|---|---|
| Rims | Bontrager Race Lite Disc |
| Front Tire | Front: 26 x 2.25" Bontrager Jones XR, Rear: 26 x 2.00" Bontrager Jones XR |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
