Velopedia Bicycle Archive

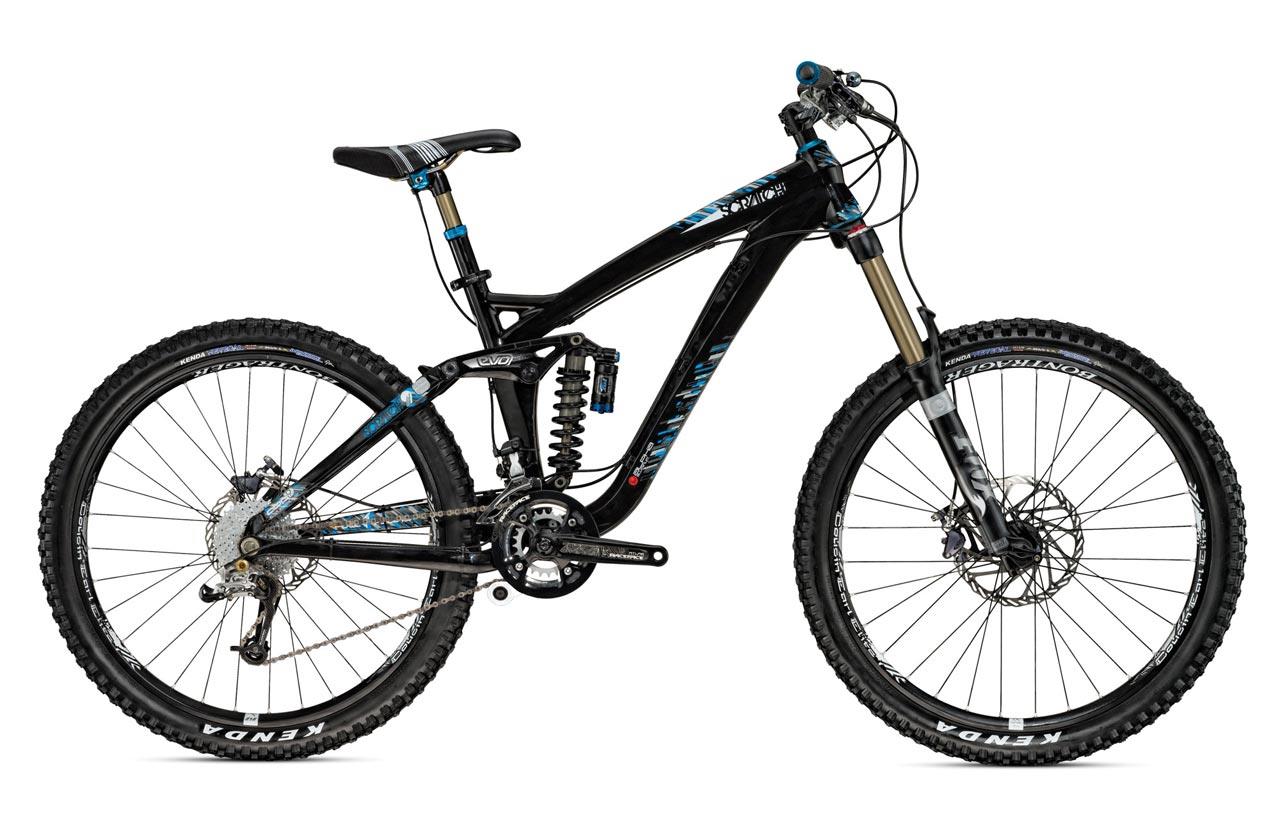

2010 Trek Scratch 9
Mountain bike, front & rear suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $5,979.99
- Sizes
- 15.5", 17.5", 19.5", 21.5"
- Colors
- Gloss Black
- Archive ID
- 19983
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Alpha Red Aluminum |
| Fork | Fox 36 Vanilla RC2 w/20mm QR Thru Axle, 160mm travel |
| Fork Material | Alloy, single crown crown |
| Rear Shock | Fox DHX RC4, 170mm travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X.0 Trigger |
| Front Derailleur | Shimano Deore, direct mount |
| Rear Derailleur | SRAM X.0 |
| Crankset | Race Face Atlas, 36/24 teeth |
| Cassette | SRAM PG-970 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Pedals | Wellgo MG-1 |
Brakes
| Brakes | Avid Elixer CR Mag Disc brakes, Avid Elixer CR Mag Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" - 1 1/2" Cane Creek Frustum SE Light |
|---|---|
| Handlebar | Bontrager Big Earl |
| Handlebar Extensions | Not included |
| Stem | Bontrager Rhythm |
| Saddle | Bontrager Rhythm |
| Seatpost | Crank Brothers Joplin with Remote, 31.6mm diameter |
Wheels & Tires
| Hubs | Bontrager Cousin Earl Elite Disc |
|---|---|
| Rims | Bontrager Cousin Earl Elite, Tubeless Ready |
| Front Tire | 26 x 2.35" Bontrager FR-4 |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
