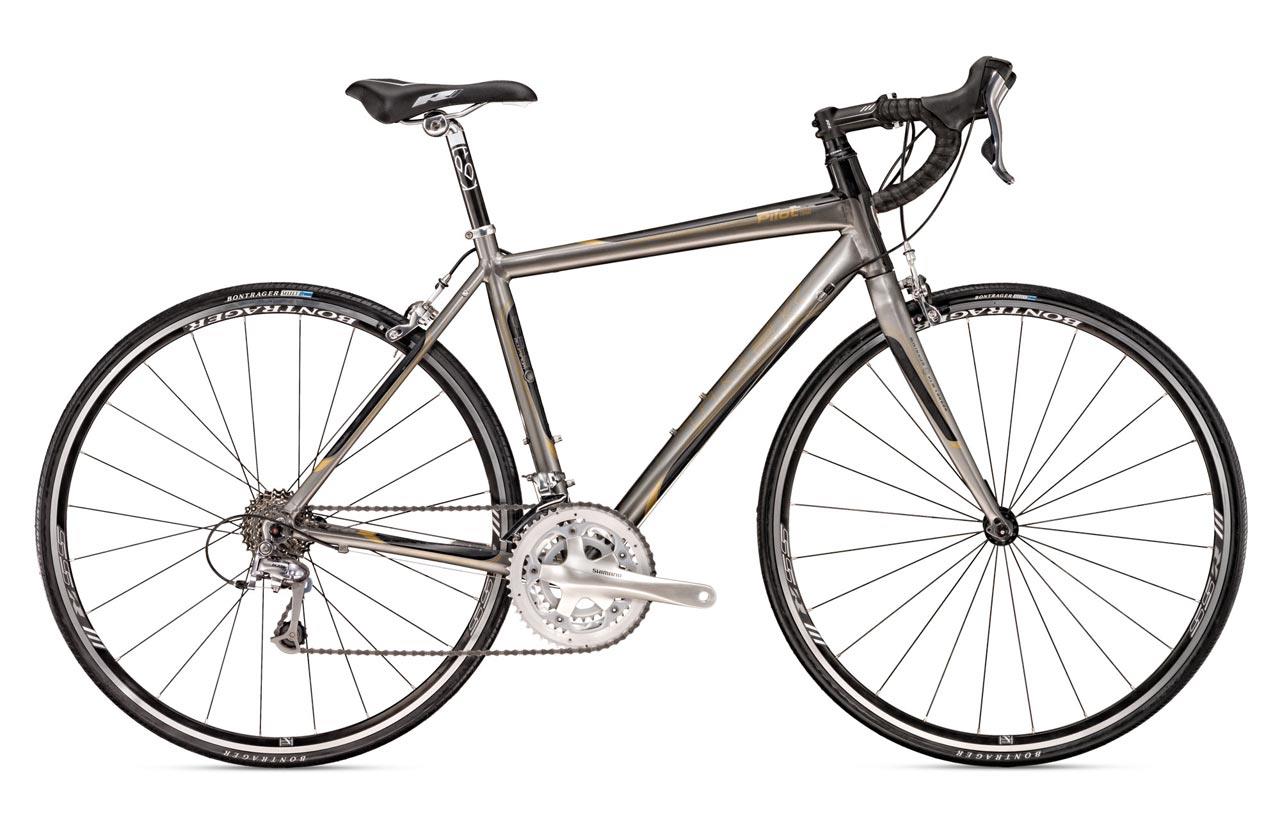

2010 Trek Pilot 2.1 WSD
Road/sport bicycle from the Velopedia historical specification archive.
- Original MSRP
- $1,369.99
- Sizes
- Womens 47cm, womens 50cm, womens 53cm, womens 55cm, womens 58cm
- Colors
- Dark Charcoal/Chocolate
- Archive ID
- 19903
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Alpha Black Aluminum |
| Fork | Bontrager Satellite Plus |
| Fork Material | Carbon, aero crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Road Mix |
|---|---|
| Shifters | Shimano 105 STI |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Crankset | Shimano R553, 50/39/30 teeth |
| Cassette | Shimano 105 |
| Rear Cogs | 10-speed, 12 - 27 teeth |
| Pedals | N/A |
Brakes
| Brakes | Alloy Dual Pivot brakes, Shimano 105 STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset integrated |
|---|---|
| Handlebar | Bontrager VR WSD |
| Handlebar Extensions | Not included |
| Stem | Bontrager Race Lite |
| Saddle | Bontrager inForm R1 WSD |
| Seatpost | Bontrager carbon |
Wheels & Tires
| Hubs | Bontrager SSR |
|---|---|
| Rims | Bontrager SSR |
| Front Tire | 700 x 25c Bontrager Race AW |
| Wheel Size | 700c wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
