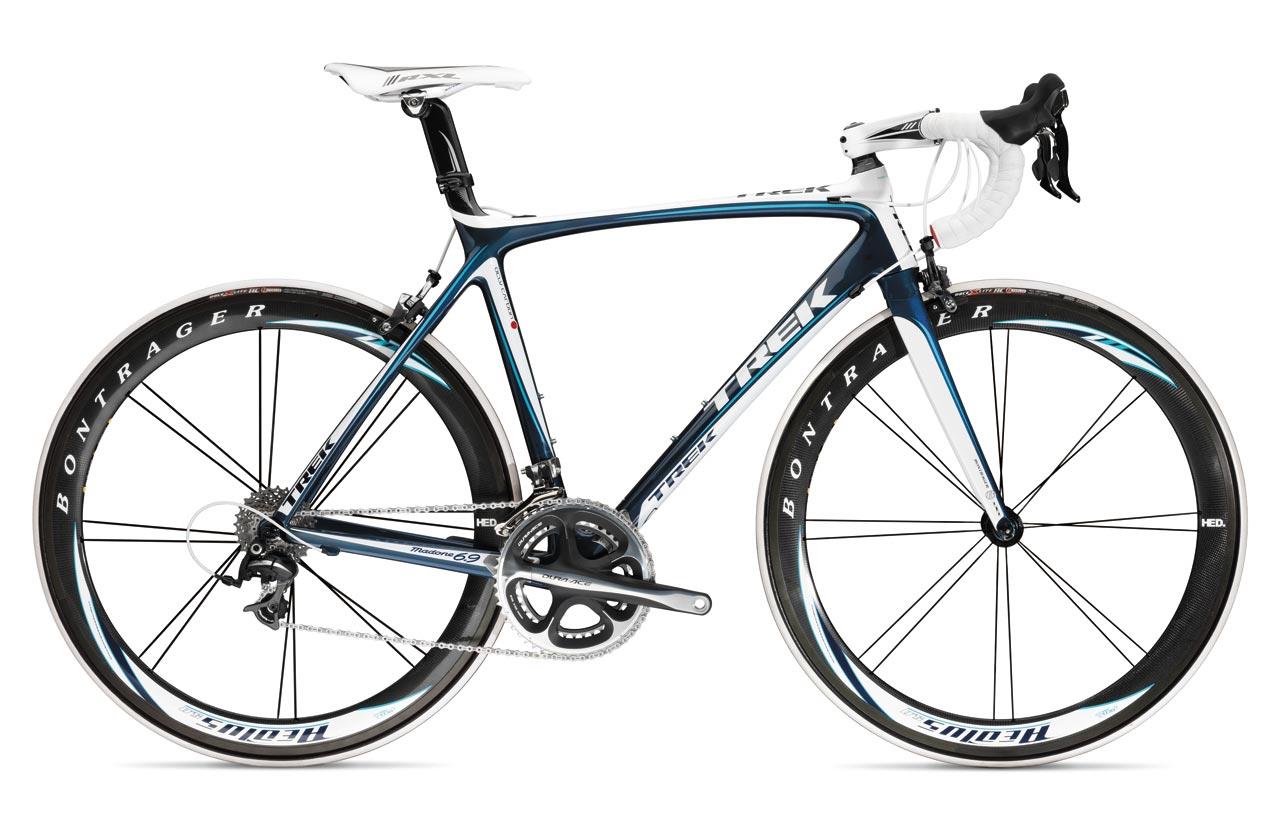

2009 Trek Madone 6.9 Pro D/A

Archived: 2009 Trek Madone 6.9 Pro D/A · Road race & triathlon · Published sizes: 50cm, 52cm, 54cm, 56cm, 58cm, 60cm, 62cm

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Bonded · Fork: Bontrager Race XXX Lite · Carbon/carbon steerer, aero crown

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Group: Shimano Dura-Ace · Shifters: Shimano Dura-Ace STI · Front derailleur: Shimano Dura-Ace, 34.9mm clamp · Rear derailleur: Shimano Dura-Ace · Crankset: Shimano Dura-Ace, 39/53 teeth · Cassette: Shimano Dura-Ace · Rear cogs: 10-speed, 11 - 25 teeth

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano Dura-Ace brakes, Shimano Dura-Ace STI levers

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 700c wheels · Rims: Bontrager Aeolus 5.0 Carbon · Hubs: Bontrager Aeolus 5.0 carbon · Front tire: 700 x 23c Bontrager Race X Lite AC

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: 1 1/8" - 1 1/2" integrated Cane Creek IS-8 · Handlebar: Bontrager Race XXX Lite VR · Stem: Bontrager Race XXX Lite · Seatpost: Carbon seat mast cap · Saddle: Bontrager Race X Lite

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
