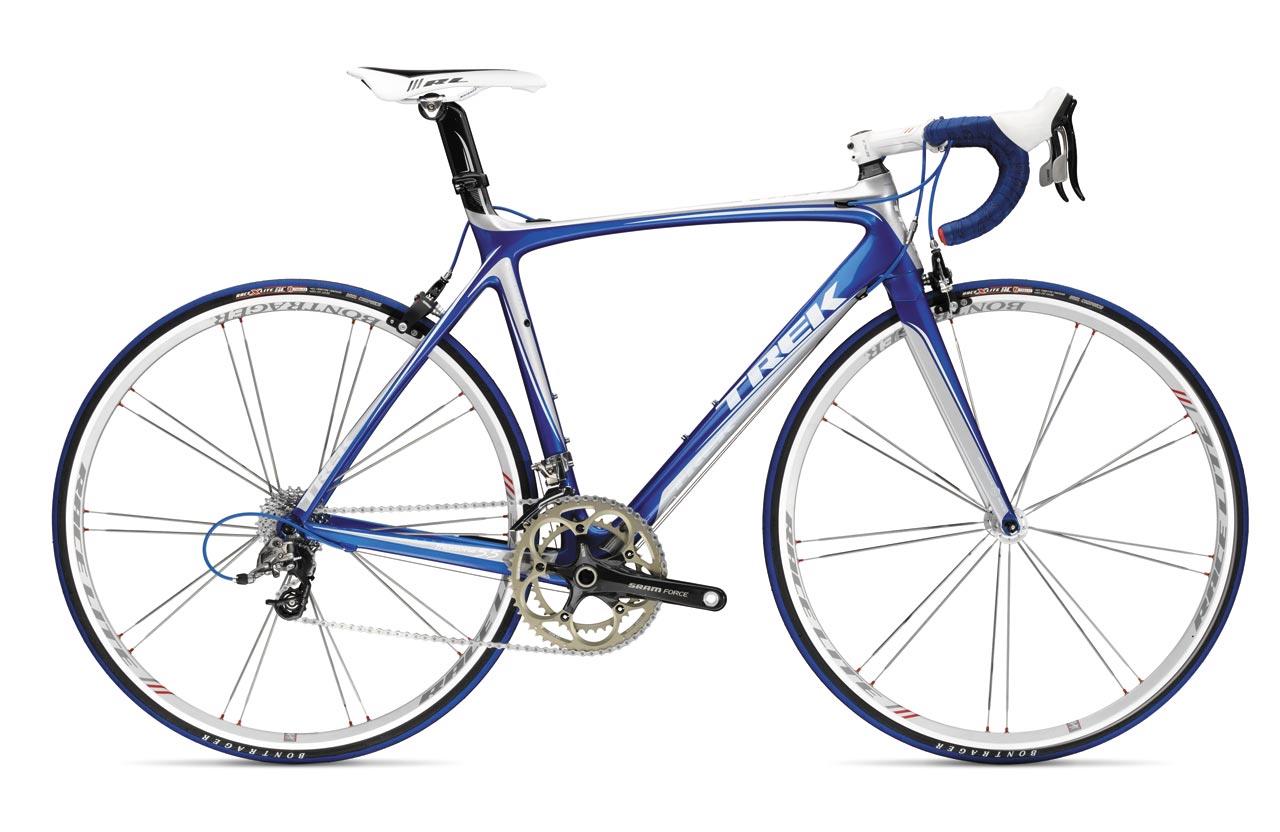

2009 Trek Madone 5.5 Pro
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $4,619.99
- Sizes
- 50cm, 52cm, 54cm, 56cm, 58cm, 60cm, 62cm
- Colors
- Bright Silver/Carrera Blue
- Archive ID
- 17497
Frameset
| Frame Construction | Bonded |
|---|---|
| Frame Material | OCLV Black Carbon |
| Fork | Bontrager Race X Lite |
| Fork Material | Carbon/aluminum steerer, aero crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Sram Force mix |
|---|---|
| Shifters | SRAM Force Double Tap |
| Front Derailleur | SRAM Force, 34.9mm clamp |
| Rear Derailleur | SRAM Force |
| Crankset | SRAM Force, 39/53 teeth |
| BB Shell Width | 90mm |
| Cassette | SRAM OG-1070 |
| Rear Cogs | 10-speed, 11 - 26 teeth |
| Chain | Shimano Dura-Ace |
| Pedals | N/A |
Brakes
| Brakes | Bontrager Speed Limit brakes, SRAM Force Double Tap levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" - 1 1/2" integrated Cane Creek IS-8 |
|---|---|
| Handlebar | Bontrager Race Lite VR |
| Handlebar Extensions | Not included |
| Stem | Bontrager Race X Lite |
| Saddle | Bontrager Race Lite |
| Seatpost | Carbon seat mast cap |
Wheels & Tires
| Hubs | Bontrager Race Lite |
|---|---|
| Rims | Bontrager Race Lite |
| Front Tire | 700 x 23c Bontrager Race X Lite AC |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
