Velopedia Bicycle Archive

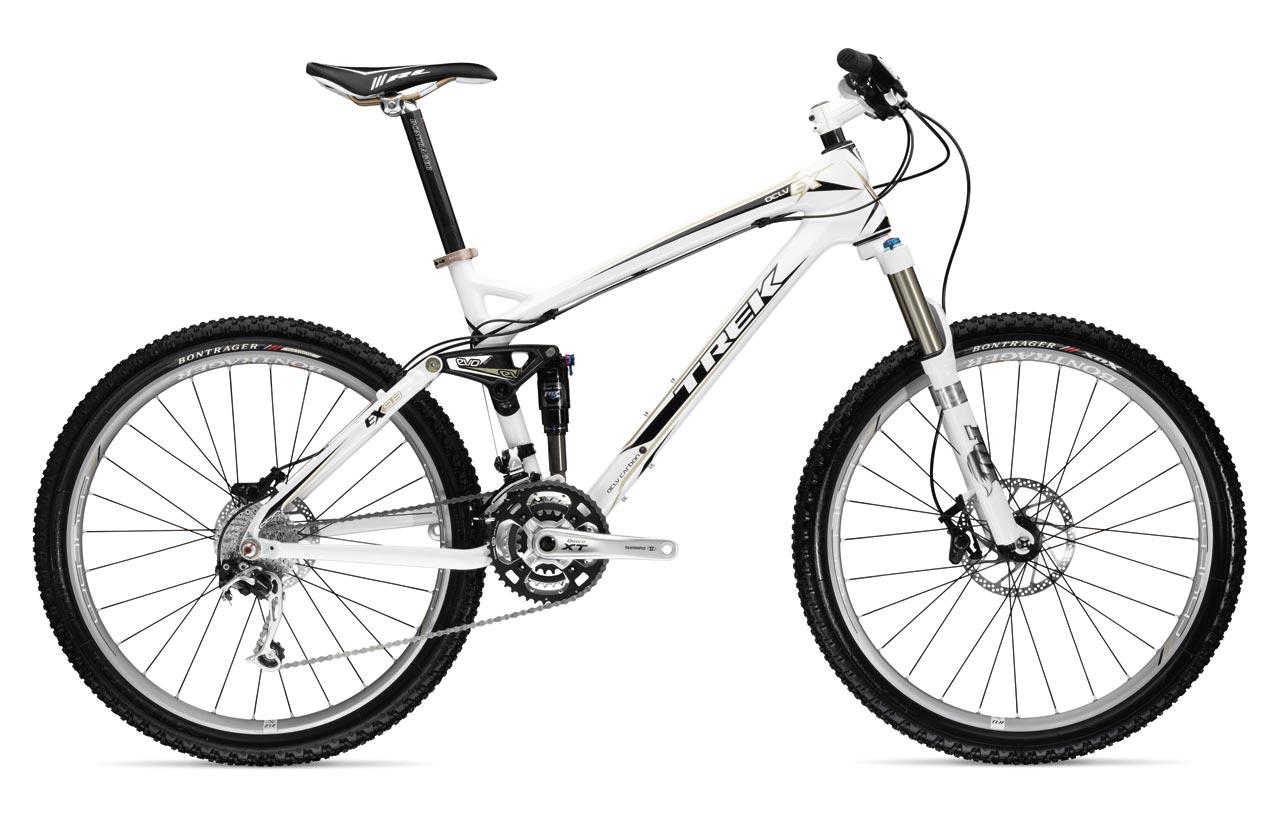

2009 Trek Fuel EX 9.8

Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.

Original MSRP
$4,399.99
Sizes
15.5", 17.5", 18.5", 19.5", 21.5"
Colors
Pearl White Carbon
Archive ID
17797

Frameset

Frame ConstructionBonded
Frame MaterialOCLV Black Carbon
ForkFox F120 RL, 120mm travel
Fork MaterialSingle crown
Rear ShockFox Float RP2 XV, 120mm travel

Drivetrain

Component GroupShimano Deore XT
ShiftersShimano Deore XT
Front DerailleurShimano Deore XT
Rear DerailleurShimano Deore XT Shadow
CranksetShimano Deore XT, 22/32/44 teeth
CassetteSRAM PG-970
Rear Cogs9-speed, 11 - 32 teeth
PedalsN/A

Brakes

BrakesShimano Deore XT Ti hydraulic disc w/180mm rotor brakes, Shimano Deore XT Ti levers

Cockpit & Contact Points

Headset1 1/8" integrated VP A76C-TK
HandlebarBontrager Race X Lite Carbon
Handlebar ExtensionsNot included
StemBontrager Race X Lite
SaddleBontrager Race Lite w/Hollow cromoly rails
SeatpostBontrager Race Lite

Wheels & Tires

HubsBontrager Rhythm Elite Disc
RimsBontrager Rhythm Elite Disc, tubeless ready
Front TireFront: 26 x 2.20" Bontrager Jones XR, Rear: 26 x 2.25" Bontrager Jones XR
Wheel Size26" wheels

More 2009 Trek Bicycles

View all

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
