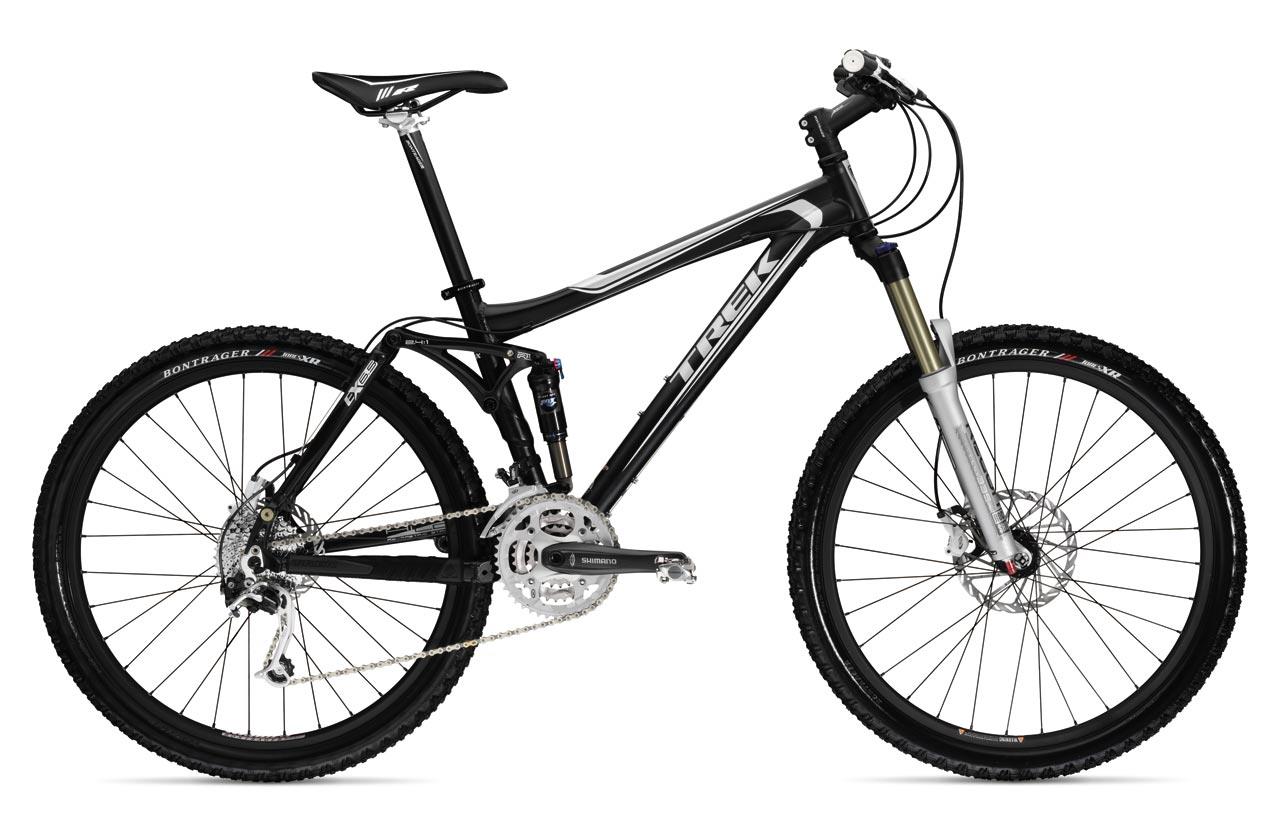

2009 Trek Fuel EX 6.5
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,979.99
- Sizes
- 15.5", 17.5", 18.5", 19.5", 21.5"
- Colors
- Satin Black/Satin Silver
- Archive ID
- 17790
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Alpha Red Aluminum |
| Fork | RockShox Recon 335 SL, 130mm travel |
| Fork Material | Single crown |
| Rear Shock | Fox Float RP2, 120mm travel |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | Shimano Deore XT Shadow |
| Crankset | Shimano M521, 22/32/44 teeth |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Pedals | Shimano 505 |
Brakes
| Brakes | Avid Juicy 3 Hydraulic w/185mm Rotor brakes, Avid Juicy 3, hydraulic disc levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated VP A76C-TK |
|---|---|
| Handlebar | Bontrager Race |
| Handlebar Extensions | Not included |
| Stem | Bontrager SSR |
| Saddle | Bontrager Race Basic |
| Seatpost | Bontrager Race |
Wheels & Tires
| Hubs | Front: Bontrager Sealed, Rear: Shimano M525 SL |
|---|---|
| Rims | Bontrager Ranger |
| Front Tire | Front: 26 x 2.20" Bontrager Jones XR, Rear: 26 x 2.25" Bontrager Jones XR |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
