Velopedia Bicycle Archive

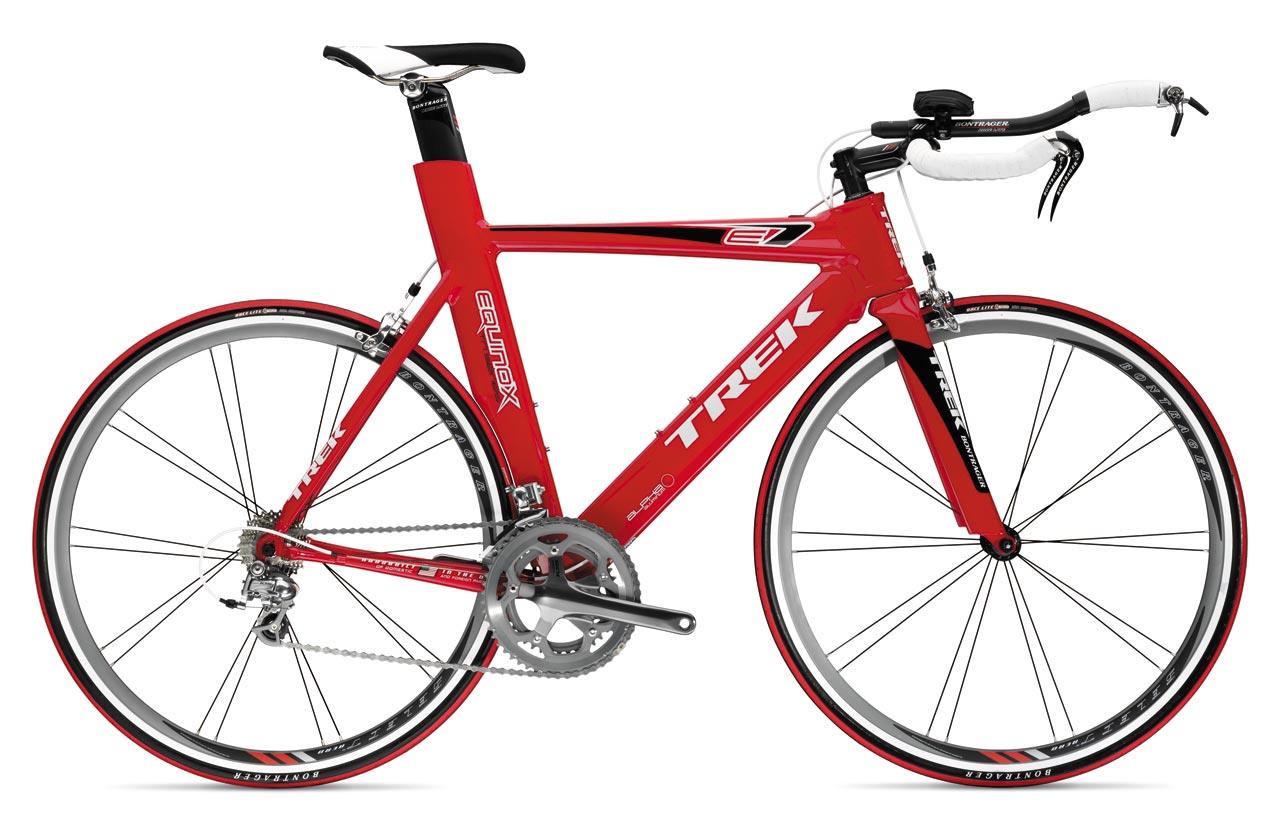

2009 Trek Equinox 7
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $2,089.99
- Sizes
- 50cm, 52cm, 54cm, 56cm, 58cm, 60cm
- Colors
- Chi Red
- Archive ID
- 17650
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Alpha Red Aluminum |
| Fork | Bontrager Race Lite TT |
| Fork Material | Carbon/Alloy Steerer, aero crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano 105 |
|---|---|
| Shifters | Shimano Dura-Ace Bar End |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Crankset | Shimano 105, 39/53 teeth |
| Cassette | Shimano 105 |
| Rear Cogs | 10-speed, 11 - 25 teeth |
| Pedals | N/A |
Brakes
| Brakes | Alloy Dual Pivot brakes, Bontrager Race Lite Aero levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Cane Creek IS2 |
|---|---|
| Handlebar | Bontrager Race Bullhorn |
| Handlebar Extensions | Bontrager Race Lite |
| Stem | Bontrager Race Lite |
| Saddle | Bontrager Race Lite TT |
| Seatpost | Bontrager Race Lite TTX |
Wheels & Tires
| Hubs | Bontrager Select Aero |
|---|---|
| Rims | Bontrager Select Aero, 20-hole/24-hole |
| Front Tire | 700 x 23c Bontrager Race Lite |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
