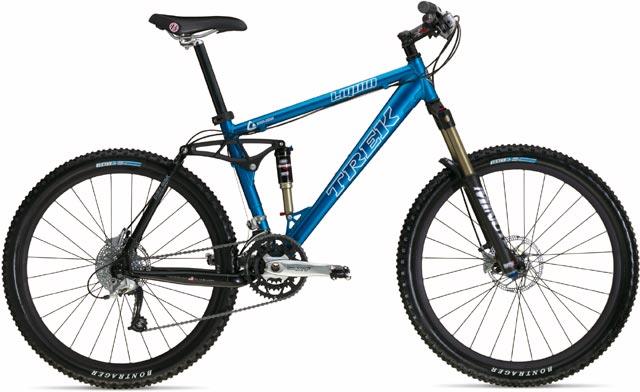

2004 Trek Liquid 55

Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.

Original MSRP
$2,999.99
Sizes
15.5", 17.5", 19.5", 21.5"
Colors
Blue
Archive ID
31536

Current market

Checking current listings…

Frameset

Frame ConstructionTIG-welded
Frame MaterialAluminum
ForkAnswer Manitou Minute 2:00 w/spv
Fork MaterialAluminum, single crown
Rear ShockAnswer Manitou Swinger 3-Way, 5.0" travel (adjustable)

Drivetrain

Component GroupMountain Mix
ShiftersShimano Deore XT RapidFire
Front DerailleurShimano Deore XT
Rear DerailleurShimano Deore XT SGS
CranksetBontrager Race Lite, 22/32/44 teeth
Rear Cogs9-speed, 11 - 34 teeth
Chain1/2 x 3/32"
PedalsShimano PD-M520 SPD

Brakes

BrakesShimano Deore XT M765 hydraulic disc brakes, Shimano Deore XT M756 hydraulic levers

Cockpit & Contact Points

Headset1 1/8" threadless Aheadset
HandlebarBontrager Race Lite
Handlebar ExtensionsNot included
StemBontrager Race X Lite
SaddleBontrager FS 2000
SeatpostBontrager Race Lite

Wheels & Tires

HubsBontrager Race Lite Disc
RimsBontrager Race Lite Disc, 24-hole/28-hole
SpokesStainless steel, 14ga. (2.0mm) straight gauge
Spoke NipplesBrass nipples
Front Tire26 x 2.20" Bontrager ACX tubeless
Wheel Size26" wheels
