Velopedia Bicycle Archive

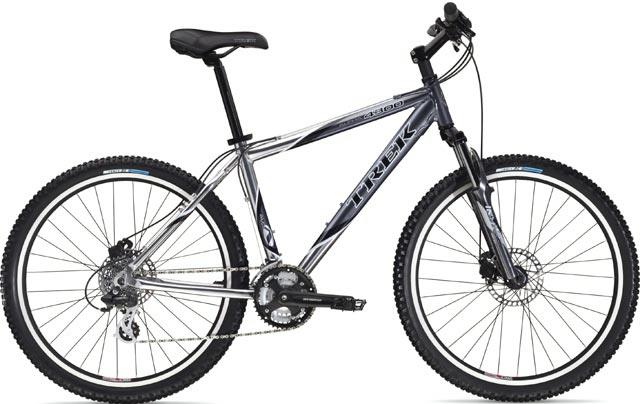

2003 Trek 4300 Disc
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $439.99
- Sizes
- 13", 15.5", 17.5", 19.5", 21.5"
- Colors
- Black Chrome/Ball Burnished, Metallic Orange
- Archive ID
- 30462
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum |
| Fork | InSync Grind 323, 70mm travel |
| Fork Material | Aluminum, single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Altus EF-29 |
| Front Derailleur | Shimano C050 |
| Rear Derailleur | Shimano Acera |
| Crankset | Suntour XCC-150, 24/34/42 teeth |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | Union 600, 1/2 x 3/32" |
| Pedals | Aluminum platform |
Brakes
| Brakes | Shimano BR-M475 Mechanical Disc brakes, Shimano EF-29 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset |
|---|---|
| Handlebar | Aluminum, 1.25" rise |
| Handlebar Extensions | Not included |
| Stem | Aluminum threadless |
| Saddle | Trek ATB |
| Seatpost | Aluminum micro-adjust |
Wheels & Tires
| Hubs | Shimano Alivio disc |
|---|---|
| Rims | Matrix 750, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 1.95" Bontrager Jones AC |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
