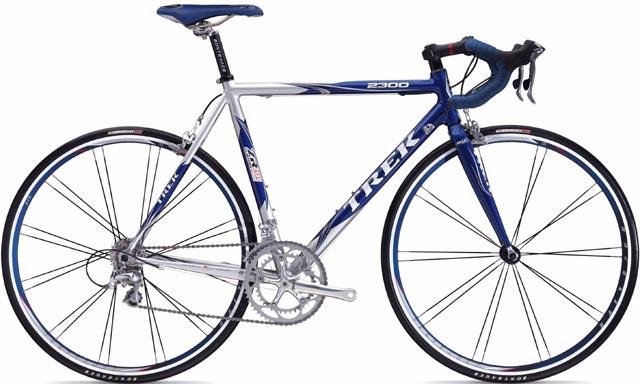

2003 Trek 2300
Original specifications: Shimano Ultegra drivetrain · 700c wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #91958- Model year
- 2003
- Category
- Road
- Original MSRP
- $1,979.99
- Sizes
- 50cm, 52cm, 54cm, 56cm, 58cm, 60cm, 63cm
- Colors
- Blue Dusk/Bright Silver
- Geometry
- Legacy reference
- In this record
- 26 specifications · archived image · original MSRP · geometry
Model history 11 other years
Browse other years
Compare side by side
Identification clues
2003 archived details
- Published colors
- Blue Dusk/Bright Silver
- Frame
- Aluminum
- Original equipment
- Shimano Ultegra
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · Shimano Ultegra · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum |
| Fork | Bontrager Race Lite Carbon |
| Fork Material | Carbon fiber w/aluminum steerer, aero crown |
Drivetrain
| Component Group | Shimano Ultegra |
|---|---|
| Shifters | Shimano Ultegra STI Dual Control |
| Front Derailleur | Shimano Ultegra |
| Rear Derailleur | Shimano Ultegra GS |
| Crankset | Shimano Ultegra, 39/53 teeth |
| Bottom Bracket | Shimano BB-6500, 109.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | 1/2 x 3/32" |
| Pedals | Not included |
Brakes
| Brakes | Shimano Ultegra Dual Pivot brakes, Shimano Ultegra STI Dual Control levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Cane Creek IS-2 integrated |
|---|---|
| Handlebar | Bontrager Race |
| Handlebar Extensions | Not included |
| Stem | Bontrager Race |
| Saddle | Selle San Marco Era |
| Seatpost | Bontrager Race |
Wheels & Tires
| Hubs | Bontrager Race Lite |
|---|---|
| Rims | Bontrager Race Lite, 20-hole/24-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) bladed |
| Front Tire | 700 x 23c Bontrager Race X-Lite |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 5 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 571 mm |
| Head-tube angle | 73.8° |
| Seat-tube angle | 73° |
| Chainstay / rear center | 417 mm |
| Wheelbase | 999 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
109.5mm spindle
39/53 teeth
More parts (8)Fewer parts
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Bontrager Race X-Lite
- Drivetrain
- 9-speed
- Bottom bracket / shell
- Shimano BB-6500, 109.5mm spindle · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Bontrager Race Lite Carbon · Carbon fiber w/aluminum steerer, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Ultegra · Shifters: Shimano Ultegra STI Dual Control · Front derailleur: Shimano Ultegra · Rear derailleur: Shimano Ultegra GS · Crankset: Shimano Ultegra, 39/53 teeth · Bottom bracket: Shimano BB-6500, 109.5mm spindle · Rear cogs: 9-speed, 12 - 25 teeth · Chain: 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Shimano Ultegra Dual Pivot brakes, Shimano Ultegra STI Dual Control levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Bontrager Race Lite, 20-hole/24-hole · Hubs: Bontrager Race Lite · Front tire: 700 x 23c Bontrager Race X-Lite
Controls and contact points
Archived: Headset: 1 1/8" integrated Cane Creek IS-2 integrated · Handlebar: Bontrager Race · Stem: Bontrager Race · Seatpost: Bontrager Race · Saddle: Selle San Marco Era · Pedals: Not included
