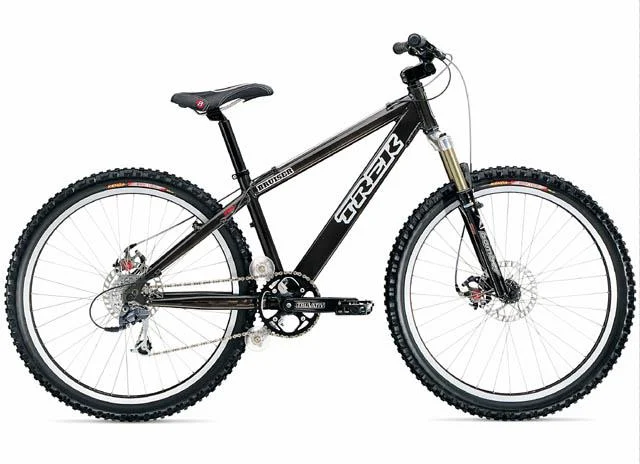

2002 Trek Bruiser Two
Original specifications: Shimano Deore LX · 8-speed · mechanical rear derailleur · 26" wheels · legacy reference geometry.
Selling this bike? Create a shareable bike record
At a glance
- Model year
- 2002
- Category
- Mountain
- Original MSRP
- $1,049.99
- Sizes
- 14.5", 16"
- Colors
- Grey
- Geometry
- Legacy reference
- In this record
- 24 specifications · archived image · original MSRP · geometry
- Archive ID
- 37563
Model history 1 other year
Original buildAluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum |
| Fork | Marzocchi Bomber Z-4, 4.0" travel |
| Fork Material | Aluminum, single triple-clamp crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Alivio RapidFire Plus |
| Front Derailleur | Chain retention device |
| Rear Derailleur | Shimano Deore LX |
| Crankset | TruVativ Hussefelt DH, 38 teeth |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | 1/2 x 3/32" |
| Pedals | Wellgo BMX |
Brakes
| Brakes | Avid Mechanical Disc brakes, Promax 4.0T levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Dia-Compe STR |
|---|---|
| Handlebar | Aluminum, 2" rise |
| Handlebar Extensions | Not included |
| Stem | Aluminum 4 bolt |
| Saddle | Bontrager FS 2000, 8mm rails |
| Seatpost | Aluminum micro-adjust |
Wheels & Tires
| Hubs | Aluminum disc |
|---|---|
| Rims | Aluminum, triple wall |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Front Tire | 26 x 2.35" Kenda Kinetics |
| Wheel Size | 26" wheels |
Geometry
Model-level measurements; the frame size was not recorded. Use these as a historical reference, not for size-specific fit.
Reference frame view
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 569 mm |
| Head-tube angle | 70° |
| Seat-tube angle | 71° |
| Chainstay / rear center | 419.1 mm |
| Wheelbase | 1038.9 mm |
| Fork offset / rake | 40.6 mm |
The preserved source contains one model-level geometry set without an identified frame size.
Gearing
Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.
Parts & serviceability
Find replacement parts
More parts (2)
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases.
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2002 Trek Bruiser Two · Mountain bike, front suspension · Published sizes: 14.5", 16"
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Marzocchi Bomber Z-4, 4.0" travel · Aluminum, single triple-clamp crown
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi Bomber Z-4, 4.0" travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Alivio RapidFire Plus · Front derailleur: Chain retention device · Rear derailleur: Shimano Deore LX · Crankset: TruVativ Hussefelt DH, 38 teeth · Rear cogs: 8-speed, 11 - 32 teeth · Chain: 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Avid Mechanical Disc brakes, Promax 4.0T levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Aluminum, triple wall · Hubs: Aluminum disc · Front tire: 26 x 2.35" Kenda Kinetics
Controls and contact points
Archived: Headset: 1 1/8" threadless Dia-Compe STR · Handlebar: Aluminum, 2" rise · Stem: Aluminum 4 bolt · Seatpost: Aluminum micro-adjust · Saddle: Bontrager FS 2000, 8mm rails · Pedals: Wellgo BMX
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
