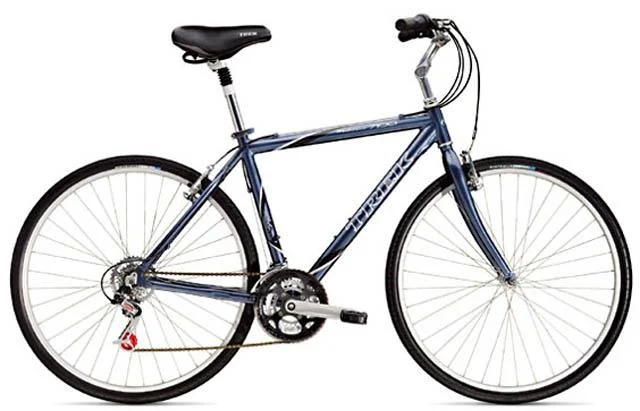

2002 Trek 7100

Original specifications: Shimano Tourney · 7-speed · mechanical rear derailleur · 700c wheels · legacy reference geometry.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #37618
Model year
2002
Category
Hybrid
Original MSRP
$299.99
Sizes
15", 17.5", 20", 22.5", 25", womens 15", womens 17", womens 20"
Colors
Blue, Silver/Green
Geometry
Legacy reference
In this record
24 specifications · archived image · original MSRP · geometry
Model history 10 other years

Browse other years

Compare side by side

Identification clues

2002 archived details

Published colors
Blue, Silver/Green
Frame
Aluminum
Original equipment
Hybrid Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAluminum · Hybrid Mix · 700c wheels

Manufacturer catalog

Published sizes and colors

8 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

15"17.5"20"22.5"25"womens 15"womens 17"womens 20"

Published colors

BlueSilver/Green

Frameset

Frame ConstructionTIG-welded
Frame MaterialAluminum
ForkTrek
Fork MaterialHi-tensile steel, unicrown crown

Drivetrain

Component GroupHybrid Mix
ShiftersSRAM Verio
Front DerailleurShimano C051
Rear DerailleurShimano Tourney TY-40GS
CranksetSun Race FC-M35, 28/38/48 teeth
Rear Cogs7-speed, 13 - 34 teeth
Chain1/2 x 3/32"
PedalsPlatform, resin

Brakes

BrakesAluminum linear-pull brakes, aluminum levers

Cockpit & Contact Points

Headset1 1/8" sealed mechanism
HandlebarSteel, rise
Handlebar ExtensionsNot included
StemAluminum, adjustable
SaddleTrek Webspring Comfort
SeatpostAluminum, suspension

Wheels & Tires

HubsAluminum, Q/R
RimsMatrix 550
SpokesStainless steel, 14ga. (2.0mm) straight gauge
Front Tire700 x 38c Bontrager Select
Wheel Size700c wheels

Geometry

Legacy reference · 5 measurements

Historical measurements. Frame size unknown.

All geometry measurementsLegacy reference · 5 measurements
MeasurementLegacy reference
Top tube548.6 mm
Head-tube angle70.5°
Seat-tube angle74°
Chainstay / rear center444.5 mm
Wheelbase1056.6 mm

Frame size not recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

Published build48/38/28T · 13–34T · 7-speed
Lowest0.82:1 Highest3.69:1 Total range448%
Estimated speed At 90 RPM Lowest gear6.1 mph Highest gear27.2 mph

Uses front tire 700C×38; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
700 x 38c Bontrager Select
Chain · Original
1/2 x 3/32" Replacement search: 7-speed bicycle chain Before ordering: Check chain width and length.
Brake pads · Original
Aluminum linear-pull brakes

aluminum levers

More parts (1)Fewer parts
Rear derailleur · Original
Shimano Tourney TY-40GS

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 38c Bontrager Select
Drivetrain
7-speed
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Trek · Hi-tensile steel, unicrown crown

Archived: Group: Hybrid Mix · Shifters: SRAM Verio · Front derailleur: Shimano C051 · Rear derailleur: Shimano Tourney TY-40GS · Crankset: Sun Race FC-M35, 28/38/48 teeth · Rear cogs: 7-speed, 13 - 34 teeth · Chain: 1/2 x 3/32"

Archived: Brakes: Aluminum linear-pull brakes, aluminum levers

Archived: Wheel size: 700c wheels · Rims: Matrix 550 · Hubs: Aluminum, Q/R · Front tire: 700 x 38c Bontrager Select

Controls and contact points

Archived: Headset: 1 1/8" sealed mechanism · Handlebar: Steel, rise · Stem: Aluminum, adjustable · Seatpost: Aluminum, suspension · Saddle: Trek Webspring Comfort · Pedals: Platform, resin
