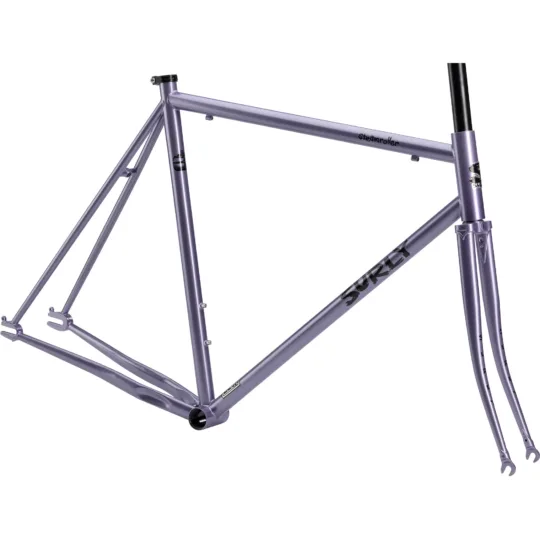

Surly Steamroller Frameset - Anxious Lavender

Original specifications: 700C wheels · geometry for 5 published sizes.

Share owner experience

At a glance

Model year: Not published by manufacturer
Category: City & Commuter
Original MSRP: $699.00
Sizes: 49cm, 53cm, 56cm, 59cm, 62cm
Colors: Anxious Lavender
Geometry: 5 manufacturer sizes
In this record: 5 specifications · 5 archived images · original MSRP · geometry
Archive ID: 900000476

Learn more about Surly →

Original buildSteel · 700C

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

49cm53cm56cm59cm62cm

Published colors

Anxious Lavender

Frameset

Frame Construction	Surly Steamroller - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Frame Material	Steel
Fork	Surly Steamroller - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, E.D. coated
Fork Material	Steel

Wheels & Tires

Wheel Size	700C

Geometry

5 sizes · 14 measurements

Frame measurements by size.

Measurement	49cm	53cm	56cm	59cm	62cm
Seat tube	515 mm	555 mm	585 mm	615 mm	645 mm
Effective top tube	528 mm	546 mm	568 mm	588 mm	609 mm
Head tube	83 mm	109 mm	136 mm	163 mm	196 mm
Head-tube angle	72.5°	73°	73.5°	74°	74°
Seat-tube angle	74.5°	74°	73.5°	73°	73°
Chainstay / rear center	398 mm	398 mm	398 mm	398 mm	398 mm
Wheelbase	957 mm	967 mm	979 mm	988 mm	1008 mm
Bottom-bracket drop	70 mm	70 mm	70 mm	70 mm	70 mm
Bottom-bracket height	275 mm	275 mm	275 mm	275 mm	275 mm
Reach	388 mm	394 mm	403 mm	408 mm	420 mm
Stack	505 mm	531 mm	559 mm	586 mm	618 mm
Standover height	754 mm	784 mm	812 mm	839 mm	869 mm
Fork offset / rake	38 mm	38 mm	38 mm	38 mm	38 mm
Fork length / axle-to-crown	375 mm	375 mm	375 mm	375 mm	375 mm

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
