Velopedia Bicycle Archive

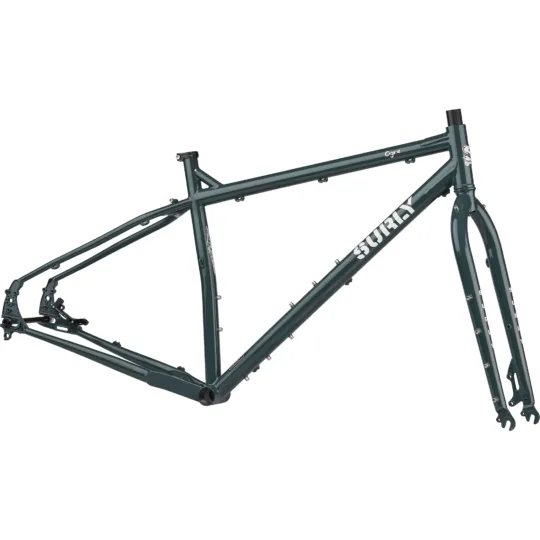

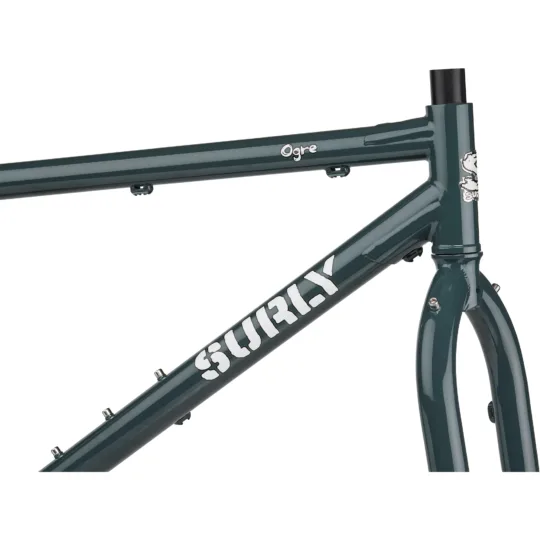

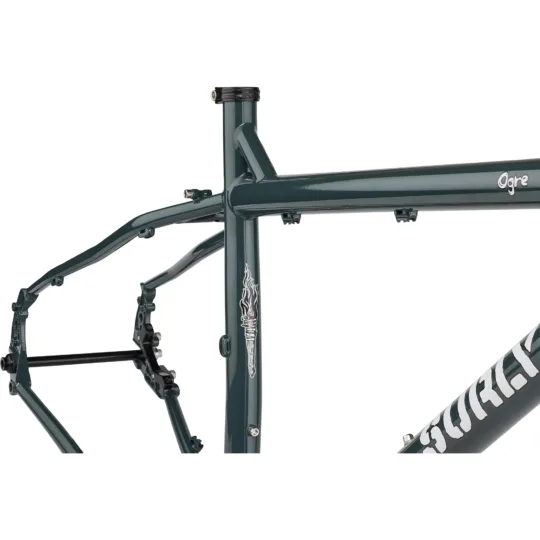

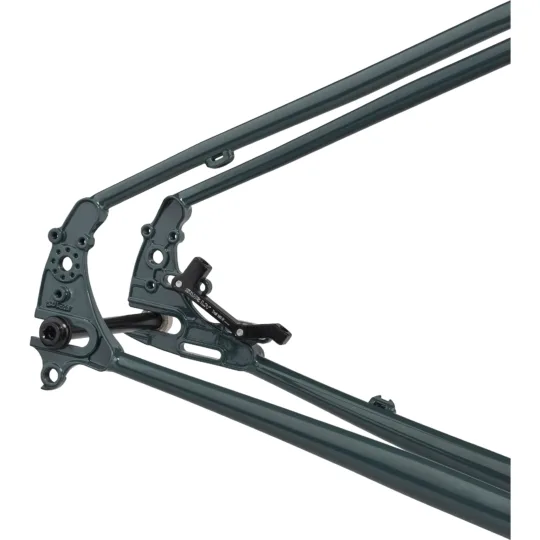

Surly Ogre Frameset - Orlok's Shadow

Original specifications: 29"; 27.5" wheels · geometry for 4 published sizes.

Share owner experience

At a glance

Model year: Not published by manufacturer
Category: Touring
Original MSRP: $899.00
Sizes: S, M, L, XL
Colors: Orlok's Shadow
Geometry: 4 manufacturer sizes
In this record: 5 specifications · 5 archived images · original MSRP · geometry
Archive ID: 900000368

Learn more about Surly →

Original buildSteel · 29"; 27.5"

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Orlok's Shadow

Frameset

Frame Construction	100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Frame Material	Steel
Fork	100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Fork Material	Steel

Wheels & Tires

Wheel Size	29"; 27.5"

Geometry

4 sizes · 14 measurements

Frame measurements by size.

Measurement	Small	Medium	Large	X-Large
Seat tube	406.4 mm	457.2 mm	508 mm	558 mm
Effective top tube	575 mm	595 mm	615 mm	640 mm
Head tube	110 mm	120 mm	130 mm	150 mm
Head-tube angle	71.5°	72°	72°	72°
Seat-tube angle	73°	73°	73°	73°
Chainstay / rear center	440 mm	440 mm	440 mm	440 mm
Wheelbase	1049.4 mm	1064.5 mm	1084.6 mm	1110 mm
Bottom-bracket drop	68 mm	68 mm	68 mm	68 mm
Bottom-bracket height	311 mm	311 mm	311 mm	311 mm
Reach	395.5 mm	410.5 mm	427.6 mm	447 mm
Stack	592 mm	603.4 mm	613 mm	632 mm
Standover height	763.5 mm	795.7 mm	824.5 mm	857.85 mm
Fork offset / rake	45 mm	45 mm	45 mm	45 mm
Fork length / axle-to-crown	445 mm	445 mm	445 mm	445 mm

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
