Velopedia Bicycle Archive

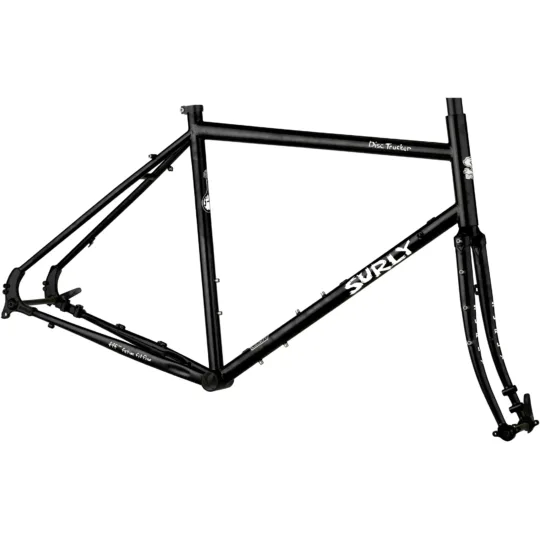

Surly Disc Trucker Frameset

Original specifications: 26"; 700C wheels · geometry for 5 published sizes.

Share owner experience

At a glance

Model year: Not published by manufacturer
Category: Touring
Original MSRP: From $749.00
Sizes: 42cm, 46cm, 50cm, 52cm, 54cm, 56cm, 58cm, 60cm, 62cm, 64cm
Colors: Grandpa's Khakis, Hi-Viz Black, Pea Lime Soup
Geometry: 5 manufacturer sizes
In this record: 5 specifications · 14 archived images · original MSRP · geometry
Archive ID: 900000356

Learn more about Surly →

Original buildSteel · 26"; 700C

Manufacturer catalog

Published sizes and colors

10 sizes · 3 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

42cm46cm50cm52cm54cm56cm58cm60cm62cm64cm

Published colors

Grandpa's KhakisHi-Viz BlackPea Lime Soup

Frameset

Frame Construction	Surly Disc Trucker - 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated \| Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Frame Material	Steel
Fork	Surly Disc Trucker - 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, brazed lugs, E.D. coated \| Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Material	Steel

Wheels & Tires

Wheel Size	26"; 700C

Geometry

5 sizes · 13 measurements

Frame measurements by size.

Measurement	56cm	58cm	60cm	62cm	64cm
Seat tube	560 mm	580 mm	600 mm	620 mm	640 mm
Effective top tube	575 mm	590 mm	605 mm	620 mm	635 mm
Head tube	175 mm	195 mm	215 mm	235 mm	250 mm
Head-tube angle	72°	72°	72°	72°	72°
Seat-tube angle	73°	72.5°	72.5°	72°	72°
Chainstay / rear center	450 mm	450 mm	450 mm	450 mm	450 mm
Wheelbase	1051 mm	1060 mm	1075.5 mm	1084 mm	1090 mm
Bottom-bracket drop	80 mm	80 mm	80 mm	80 mm	80 mm
Reach	387.5 mm	391 mm	400 mm	402 mm	412.5 mm
Stack	613 mm	632 mm	651.5 mm	670.5 mm	685 mm
Standover height	813 mm	831 mm	850 mm	869 mm	885 mm
Fork offset / rake	45 mm	45 mm	45 mm	45 mm	45 mm
Fork length / axle-to-crown	390 mm	390 mm	390 mm	390 mm	390 mm

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
