Velopedia Bicycle Archive

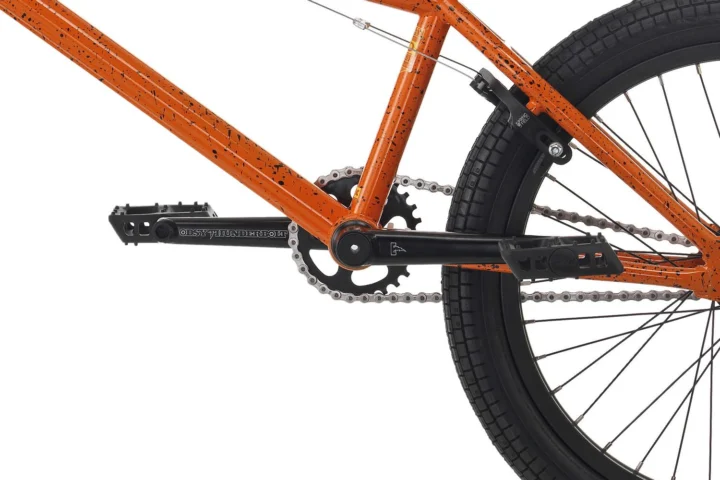

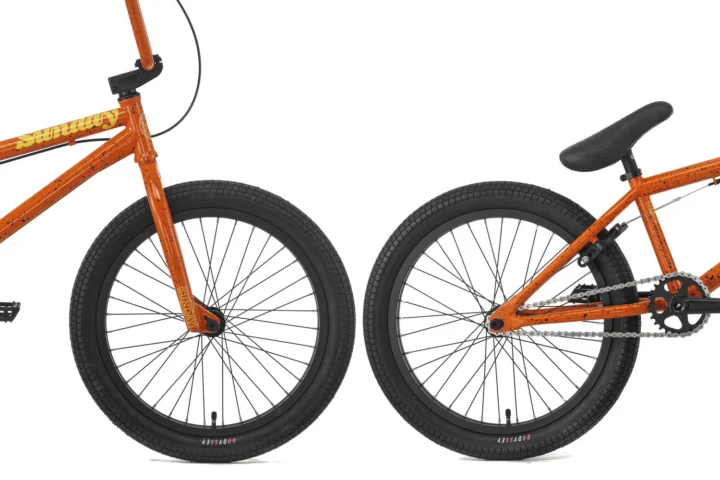

2015 Sunday Pro Aaron Ross

Original specifications: BMX mix drivetrain · 25.85lbs published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1421347
Model year
2015
Category
BMX
Original MSRP
$799.00
Sizes
20.75" TT
Weight
25.85lbs
In this record
20 specifications · 4 archived images · original MSRP
Campaign
Original buildFull Chromoly, Wave Down Tube · BMX mix

Manufacturer catalog

Published sizes and colors

1 size

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

20.75" TT

Frameset

Frame ConstructionTig welded
Frame MaterialFull Chromoly, Wave Down Tube
ForkPRO Full Chromoly w/ 1PC Steerer Tube
Fork MaterialChromoly steel

Drivetrain

Component GroupBMX mix
Crankset175mm, Odyssey Thunderbolt RHD, Sunday Sabretooth, 28T, 6061 CNC
Bottom Bracket22mm Sealed Mid
Rear Cogs9t
ChainKMC Z-510HX
PedalsOdyssey Twisted PC

Brakes

BrakesOdyssey Monolever Medium, Odyssey Springfield

Cockpit & Contact Points

HeadsetSunday Integrated, Sunday M16 AL Pre-Load Bolt
HandlebarSunday Full Chromoly 9" Rise, 12° Back, 4° Upsweep
StemSunday Freeze Top-Load Stem 52mm
SaddleOdyssey Aaron Ross Signature Tripod
SeatpostOdyssey Tripod Aftermarket

Wheels & Tires

HubsOdyssey Quartet, 3/8" Bolt, 36H, Odyssey Quartet, 3/8" Bolt, 36H, 9T
RimsOdyssey Quadrant Rim 36H
SpokesSteel Black
Front TireOdyssey Aaron Ross Signature 20 x 2.35 (F & R)

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Published build28T · 9T
Ratio3.11:1

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Front tire · Original
Odyssey Aaron Ross Signature 20 x 2.35 (F & R) Replacement search: 20x2.35 bicycle tire Before ordering: Check rim type and tire clearance.
Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Odyssey Aaron Ross Signature 20 x 2.35 (F & R)
Drivetrain
BMX mix
Bottom bracket / shell
22mm Sealed Mid
Campaign
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: Tig welded · Fork: PRO Full Chromoly w/ 1PC Steerer Tube · Chromoly steel

Drivetrain

Check drivetrain wear →

Archived: Group: BMX mix · Crankset: 175mm, Odyssey Thunderbolt RHD, Sunday Sabretooth, 28T, 6061 CNC · Bottom bracket: 22mm Sealed Mid · Rear cogs: 9t · Chain: KMC Z-510HX

Brakes

Inspect the brakes →

Archived: Brakes: Odyssey Monolever Medium, Odyssey Springfield

Wheels and tires

Check wheels and tires →

Archived: Rims: Odyssey Quadrant Rim 36H · Hubs: Odyssey Quartet, 3/8" Bolt, 36H, Odyssey Quartet, 3/8" Bolt, 36H, 9T · Front tire: Odyssey Aaron Ross Signature 20 x 2.35 (F & R)

Controls and contact points

Archived: Headset: Sunday Integrated, Sunday M16 AL Pre-Load Bolt · Handlebar: Sunday Full Chromoly 9" Rise, 12° Back, 4° Upsweep · Stem: Sunday Freeze Top-Load Stem 52mm · Seatpost: Odyssey Tripod Aftermarket · Saddle: Odyssey Aaron Ross Signature Tripod · Pedals: Odyssey Twisted PC
