2015 Sunday Blueprint

Original specifications: 20 wheels.

Share owner experience

At a glance

Archive #1310901

Model year: 2015
Category: BMX
Original MSRP: $300.00
Sizes: 20" TT
Colors: Blood Orange
In this record: 20 specifications · 2 archived images · original MSRP

Original buildHi-Ten Frame · 20

Manufacturer catalog

Published sizes and colors

1 size · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

20" TT

Published colors

Blood Orange

Frameset

Frame Construction	welded
Frame Material	Hi-Ten Frame
Fork	Blueprint w/ Welded Pre-Load Bolt
Fork Material	Steel

Drivetrain

Crankset	170mm, 3-piece, Chromoly, Sunday , 25T, Steel
Bottom Bracket	19mm American
Rear Cogs	9t
Chain	KMC Z410
Pedals	Wellgo

Brakes

Brakes	Odyssey Springfield

Cockpit & Contact Points

Headset	Traditional 1-1/8"
Handlebar	Sunday 9" Rise, 12° Back, 4° Upsweep
Stem	Sunday Freeze Front-Load Stem 48mm
Saddle	Sunday Cloud Seat and Post Combo
Seatpost	Integrated

Wheels & Tires

Hubs	Sunday, Low-Flange, Looseball, 36H, Unsealed 9T Cassette Hub, 36H
Rims	20" Rim, 36H
Spokes	Steel Black
Front Tire	Sunday Current 20 x 2.25" (F & R)
Wheel Size	20

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

Published build25T · 9T

Ratio2.78:1

Estimated speed At 90 RPM Gear15.2 mph

Uses front tire 20×2.25; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

Sunday Current 20 x 2.25" (F & R) Replacement search: 20x2.25 bicycle tire Before ordering: Check rim type and tire clearance.

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Sunday Current 20 x 2.25" (F & R)
Bottom bracket / shell: 19mm American

Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.

This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.

Display name Required Email address Required · private Ownership Required When or how long you owned it Required Frame size Required Primary type of riding Required Rider height Optional

Overall owner experience Required · at least 120 characters0 of 120 minimum characters Would you own one again? Optional

Add fit, maintenance and buyer detailsOptional · five additional fields

Fit and sizing observations Optional Long-term strengths Optional Problems or recurring maintenance Optional Parts replaced or upgraded Optional What a used buyer should inspect Optional

Your contribution goes directly to Velopedia’s private review queue. We’ll email an optional confirmation link plus a private edit and withdrawal link, but you do not need to confirm your email before an administrator can review or approve the submission.

Already contributed? Send me a fresh private edit link

For privacy, Velopedia shows the same confirmation whether or not an experience exists.

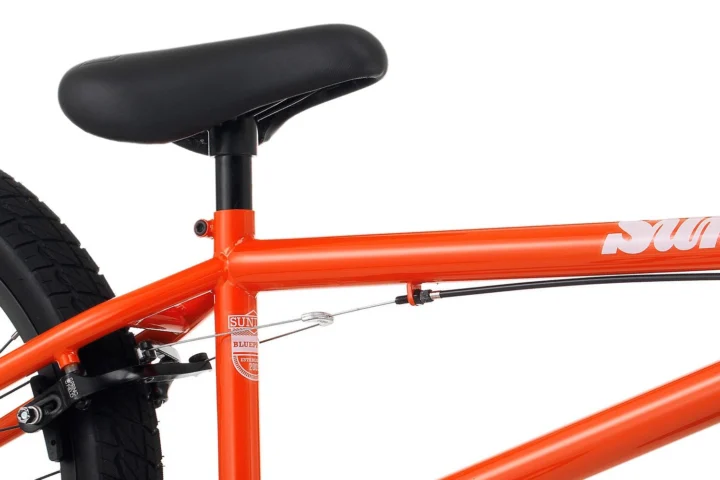

Gallery2 images
