2026 Specialized Tarmac SL8 Comp - Shimano 105 Di2
Original specifications: 7.68 kg (16 lb, 14.9 oz) published weight · geometry for 7 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001144- Model year
- 2026
- Category
- Road
- Original MSRP
- $4,699.99
- Sizes
- 44, 49, 52, 54, 56, 58, 61
- Colors
- Gloss Red Tint Over Silver Dust / Silver Dust, Satin Carbon / White
- Weight
- 7.68 kg (16 lb, 14.9 oz)
- Geometry
- 7 manufacturer sizes
- In this record
- 20 specifications · 8 archived images · original MSRP · geometry
Original buildCarbon Fiber
Frameset
| Frame Construction | Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano 105 Di2 R7170, 12-speed hydraulic disc |
|---|---|
| Front Derailleur | Shimano 105 R7170, braze-on |
| Rear Derailleur | Shimano 105 Di2 R7150. 12-speed |
| Crankset | Shimano 105 R7100, 52/36t |
| Bottom Bracket | Shimano Threaded BSA BB |
| Cassette | Shimano 105 CS-R7100, 12-speed, 11-34t |
| Chain | Shimano SLX CN-M7100, 12-speed |
Brakes
| Brakes | (F) Shimano 105 Hydraulic Brake / (R) Shimano 105 Hydraulic Brake |
|---|
Cockpit & Contact Points
| Headset | Stem headset spacers kit for SL7 stem & Roval Rapide cockpit use |
|---|---|
| Handlebar | Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp |
| Stem | Tarmac integrated stem, 6-degree |
| Saddle | Body Geometry Power Sport, steel rails |
| Seatpost | S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset |
Wheels & Tires
| Wheels | (F) DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples. / (R) DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples. |
|---|---|
| Front Tire | S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm |
| Rear Tire | S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements7 sizes · 19 measurements
| Measurement | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Seat tube | 433 mm | 445 mm | 456 mm | 473 mm | 494 mm | 515 mm | 545 mm |
| Effective top tube | 496 mm | 509 mm | 531 mm | 541 mm | 563 mm | 577 mm | 595 mm |
| Head tube | 99 mm | 109 mm | 120 mm | 137 mm | 157 mm | 184 mm | 204 mm |
| Head-tube angle | 70.5° | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
| Seat-tube angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 970 mm | 973 mm | 975 mm | 978 mm | 991 mm | 1006 mm | 1013 mm |
| Bottom-bracket drop | 74 mm | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Bottom-bracket height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Reach | 366 mm | 375 mm | 380 mm | 384 mm | 395 mm | 402 mm | 408 mm |
| Stack | 501 mm | 514 mm | 527 mm | 544 mm | 565 mm | 591 mm | 612 mm |
| Standover height | 723 mm | 735 mm | 746 mm | 768 mm | 786 mm | 808 mm | 834 mm |
| Fork offset / rake | 47 mm | 47 mm | 47 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front center | 572 mm | 574 mm | 577 mm | 579 mm | 592 mm | 606 mm | 613 mm |
| Trail | 71 mm | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Fork length / axle-to-crown | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Stem length | 70 mm | 80 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Handlebar width | 360 mm | 380 mm | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
120 TPI, folding bead, BlackBelt protection, 700x26mm

Specialized Roadsport Clincher Tire Black, 700x26
700x26c
Replacement option
12-speed, 11-34t
More parts (7)Fewer parts
52/36t
braze-on
12-speed hydraulic disc
6061, 70x125mm, 31.8mm clamp
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
- Rear tire
- S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
- Drivetrain
- 12-speed
- Bottom bracket / shell
- Shimano Threaded BSA BB
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc · Fork: FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano 105 Di2 R7170, 12-speed hydraulic disc · Front derailleur: Shimano 105 R7170, braze-on · Rear derailleur: Shimano 105 Di2 R7150. 12-speed · Crankset: Shimano 105 R7100, 52/36t · Bottom bracket: Shimano Threaded BSA BB · Cassette: Shimano 105 CS-R7100, 12-speed, 11-34t · Chain: Shimano SLX CN-M7100, 12-speed
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano 105 Hydraulic Brake / (R) Shimano 105 Hydraulic Brake
Wheels and tires
Check wheels and tires →Archived: Front tire: S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm · Rear tire: S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
Controls and contact points
Archived: Headset: Stem headset spacers kit for SL7 stem & Roval Rapide cockpit use · Handlebar: Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp · Stem: Tarmac integrated stem, 6-degree · Seatpost: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset · Saddle: Body Geometry Power Sport, steel rails
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

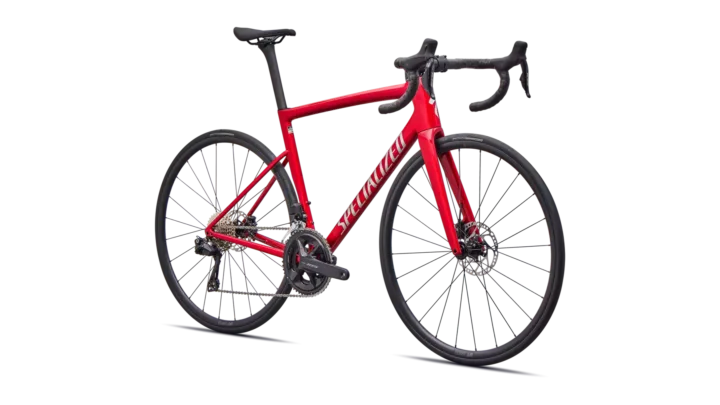

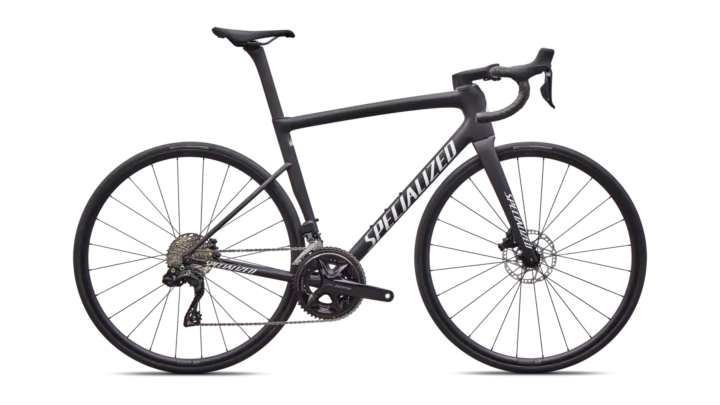

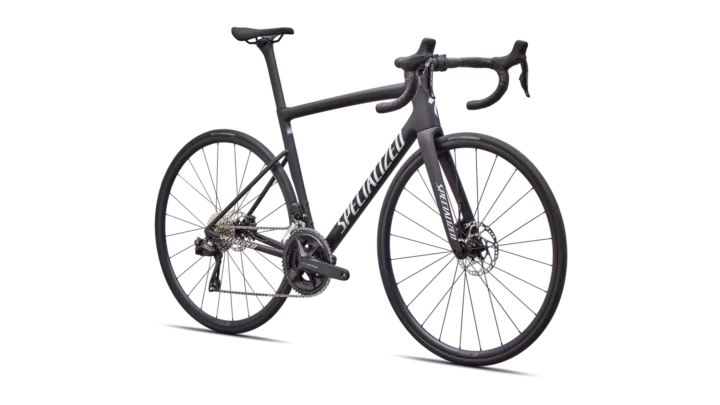

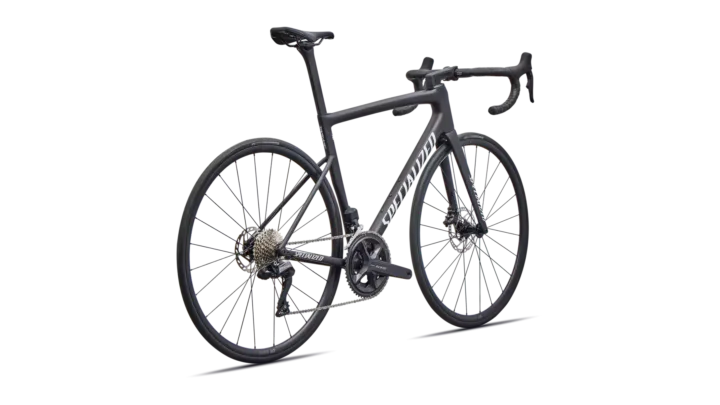

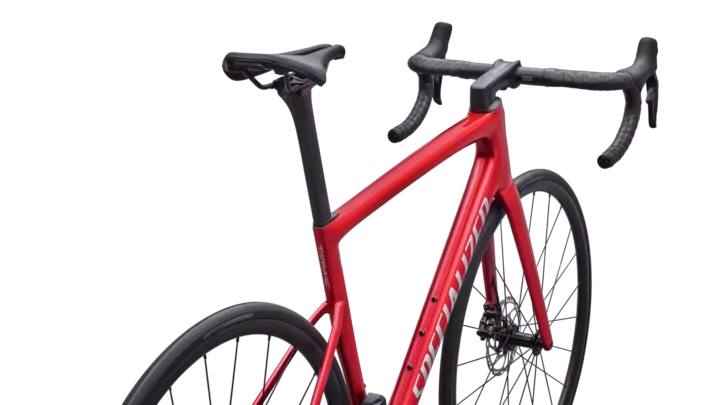

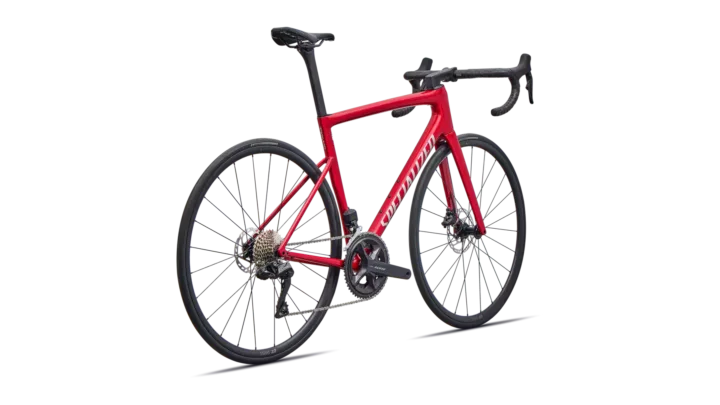

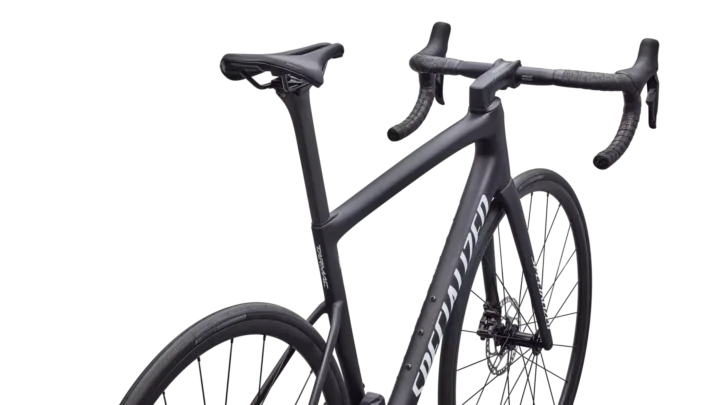

Gallery8 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
