Velopedia Bicycle Archive

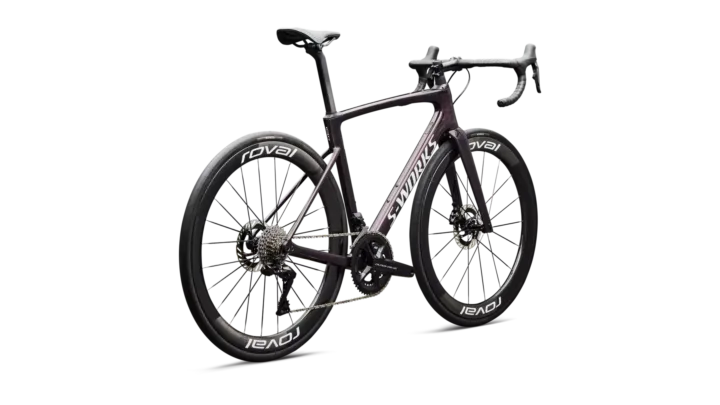

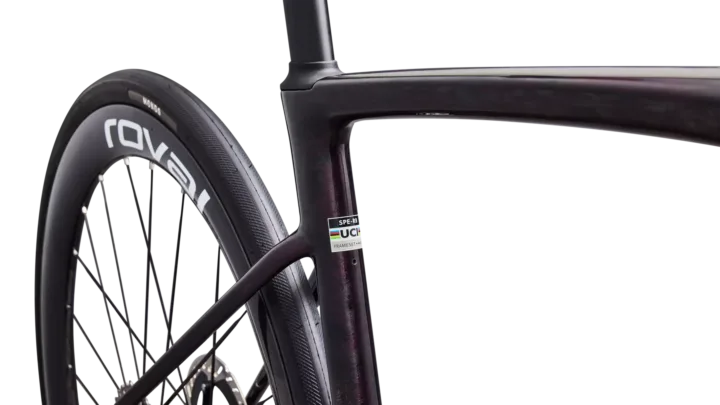

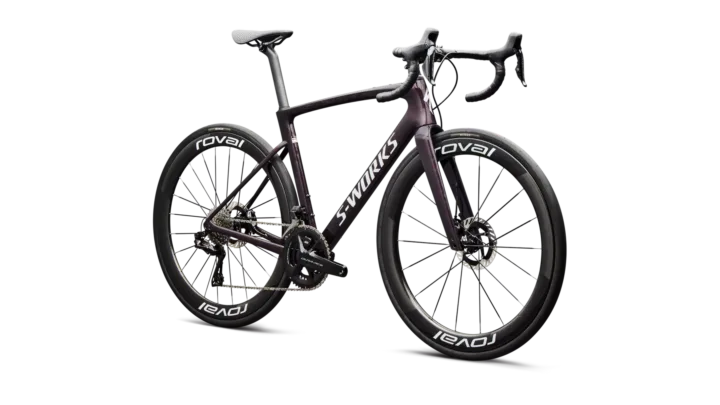

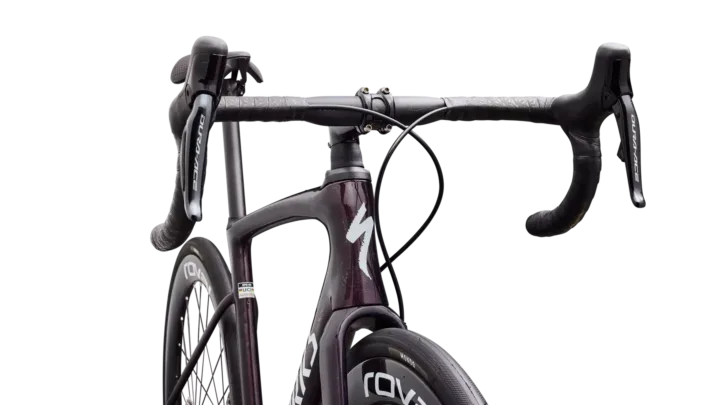

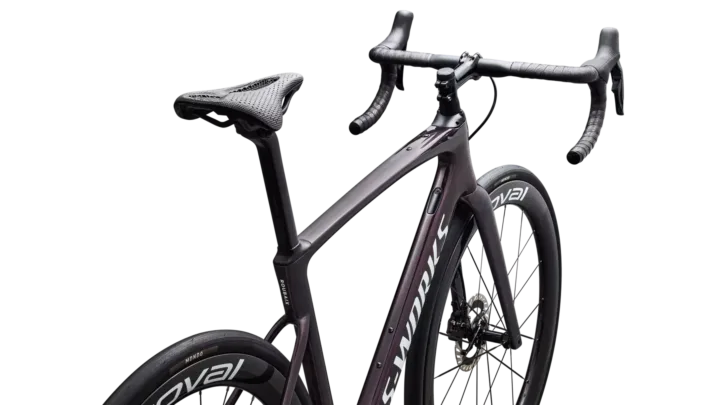

2026 Specialized S-Works Roubaix SL8 - Shimano Dura-Ace Di2

Original specifications: 7.61 kg (16 lb, 12.4 oz) published weight · geometry for 7 published sizes.

Share owner experience

Selling this bike? Create a shareable bike record

At a glance

Model year
2026
Category
Road
Original MSRP
$12,499.99
Sizes
44, 52, 54, 56, 58, 61
Colors
Gloss Carbon Bordeaux
Weight
7.61 kg (16 lb, 12.4 oz)
Geometry
7 manufacturer sizes
In this record
19 specifications · 6 archived images · original MSRP · geometry
Archive ID
900001124
Model history 1 other year
Original buildCarbon Fiber

Manufacturer catalog

Published sizes and colors

6 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

445254565861

Published colors

Gloss Carbon Bordeaux

Frameset

Frame ConstructionFACT 12R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc
Frame MaterialCarbon Fiber
ForkFuture Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Fork MaterialCarbon Fiber

Drivetrain

ShiftersShimano Dura-Ace R9270, hydraulic disc
Front DerailleurShimano Dura-Ace R9250, braze-on
Rear DerailleurShimano Dura-Ace R9250, 12-speed
CranksetShimano Dura-Ace R9200, HollowTech II, 12-speed with 4iiii Precision Pro dual-sided powermeter 50/34t
Bottom BracketShimano Dura-Ace, BB-R9100
CassetteShimano Dura-Ace CS-R9200, 12-speed, 11-34t
ChainShimano XTR M9100, 12-speed w/ quick link

Brakes

Brakes(F) Shimano Dura-Ace BR-R9270 hydraulic disc / (R) Shimano Dura-Ace BR-R9270 hydraulic disc

Cockpit & Contact Points

HandlebarRoval Alpinist Carbon Handlebar, 125mm drop, 75mm reach
StemRoval Alpinist Stem, alloy, titanium bolts, 6-degree rise
SaddleS-Works Power with Mirror
SeatpostS-Works Pave

Wheels & Tires

Wheels(F) Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, Roval LF18-F hub w/DT Ceramic Sinc bearings, 18h, Carbon spokes / (R) Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 48mm depth, Win Tunnel Engineered, Roval LF19-R hub w/DT Ceramic Sinc bearings, 24h, Carbon spokes
Front TireMondo TLR Endurance Tire, 700x32, GRIPTON T2/T5
Rear TireMondo TLR Endurance Tire, 700x32, GRIPTON T2/T5

Geometry

7 sizes · 19 measurements

Frame measurements by size.

All geometry measurements7 sizes · 19 measurements
Measurement44495254565861
Seat tube365 mm410 mm445 mm465 mm485 mm505 mm545 mm
Effective top tube503 mm523 mm534 mm550 mm569 mm584 mm600 mm
Head tube90 mm90 mm105 mm122 mm140 mm168 mm202 mm
Head-tube angle69.3°70.8°71.5°72.3°73°73°73.5°
Seat-tube angle75°74°74°74°73.5°73.5°73.5°
Chainstay / rear center418 mm418 mm418 mm420 mm420 mm423 mm423 mm
Wheelbase994 mm992 mm988 mm1005 mm1012 mm1031 mm1042 mm
Bottom-bracket drop80 mm80 mm80 mm78 mm78 mm78 mm78 mm
Bottom-bracket height269 mm269 mm269 mm270 mm270 mm271 mm271 mm
Reach353 mm363 mm370 mm381 mm389 mm397 mm403 mm
Stack543 mm549 mm566 mm585 mm605 mm630 mm665 mm
Standover height686 mm719 mm747 mm766 mm787 mm809 mm847 mm
Fork offset / rake52 mm52 mm52 mm47 mm47 mm47 mm47 mm
Front center589 mm587 mm593 mm598 mm604 mm620 mm631 mm
Trail76 mm66 mm62 mm61 mm57 mm57 mm54 mm
Fork length / axle-to-crown375 mm375 mm375 mm375 mm375 mm375 mm375 mm
Crank length165 mm165 mm170 mm172.5 mm172.5 mm175 mm175 mm
Stem length70 mm80 mm90 mm100 mm100 mm110 mm110 mm
Handlebar width360 mm380 mm400 mm420 mm420 mm440 mm440 mm

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.

Gearing

Chainring ÷ rear sprocket

Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.

All published sizes50/34T · 11–34T · 12-speed
Lowest1.00:1 Highest4.55:1 Total range455%

7.2–32.9 mph at 90 rpm, estimated from the published rear tire size 700×32c · 32-622 ETRTO.
