Rear tire: 24×2.1.
Velopedia Bicycle Archive

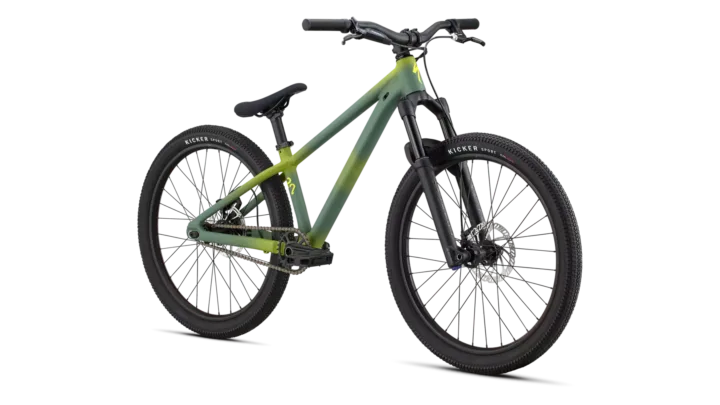

2025 Specialized P.2
Original specifications: geometry for 1 published size.
Planning to sell? Draft your listing
At a glance
Archive #900001021- Model year
- 2025
- Category
- Specialty
- Original MSRP
- $1,249.99
- Colors
- Satin Sage Green / Olive Diffused / Team Yellow
- Geometry
- 1 manufacturer size
- In this record
- 19 specifications · 3 archived images · original MSRP · geometry
Model history 9 other years
Browse other years
Compare side by side
Identification clues
2025 archived details
- Published colors
- Satin Sage Green / Olive Diffused / Team Yellow
- Frame
- Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum
Frameset
| Frame Construction | Specialized A1 Premium Aluminum, 24" Compatible, fully butted tubing, tapered head tube, BSA threaded 73mm BB shell, 12x148 thru-axle sliding dropouts, Single speed or geared compatibile, internal cable routing, 30.9mm seat tube, dropper post compatible |
|---|---|
| Frame Material | Aluminum |
| Fork | Manitou J-Unit Comp 24", 100mm Travel, DJ Tune, 15x110mm thru-axle, Tapered ST |
Drivetrain
| Crankset | Prowheel, BSA-73, 140mm, Forged Arm, 30T, Boost |
|---|---|
| Bottom Bracket | 73mm BSA,24mm Spindle Diameter |
| BB Shell Width | 73 mm |
| Cassette | 13T |
| Chain | KMC Z610, single speed, 1/2x3/32" |
| Pedals | Specialized, platform |
Brakes
| Brakes | (F) Tektro, mechanical disc, resin pads, 160mm / (R) SRAM Level T hydraulic disc, 2-Piston Caliper |
|---|
Cockpit & Contact Points
| Handlebar | Specialized P.Series MTB Dirt, 6061 alloy, 9-degree backsweep, 6-degree upsweep, 38mm rise, 750mm width, 31.8mm clamp |
|---|---|
| Stem | 35mm Specialized Alloy Trail Stem |
| Saddle | Soder Dirt, steel rails |
| Seatpost | Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm |
Wheels & Tires
| Hubs | (F) Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h / (R) Bear Pawl, 6-bolt, 12x148TA, 32h, single speed |
|---|---|
| Rims | P.Series, 32 Hole, 26mm ID, disc brake only |
| Spokes | Stainless, 14g |
| Front Tire | Specialized Kicker Sport, 24x2.1" |
| Rear Tire | Specialized Kicker Sport, 24x2.1" |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurements1 size · 16 measurements
| Measurement | 24" |
|---|---|
| Seat tube | 300 mm |
| Effective top tube | 530 mm |
| Head tube | 95 mm |
| Head-tube angle | 68.5° |
| Seat-tube angle | 72° |
| Chainstay / rear center | 360 mm |
| Wheelbase | 958 mm |
| Bottom-bracket drop | 25 mm |
| Bottom-bracket height | 290 mm |
| Reach | 360 mm |
| Stack | 517 mm |
| Standover height | 656 mm |
| Fork offset / rake | 40 mm |
| Front center | 600 mm |
| Trail | 81 mm |
| Fork length / axle-to-crown | 455 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
24x2.1"
6061 alloy, 9-degree backsweep, 6-degree upsweep, 38mm rise, 750mm width, 31.8mm clamp
More parts (1)Fewer parts
6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Specialized Kicker Sport, 24x2.1"
- Rear tire
- Specialized Kicker Sport, 24x2.1"
- Seatpost diameter
- 30.9 mm
- Bottom bracket / shell
- 73mm BSA,24mm Spindle Diameter · 73 mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Specialized A1 Premium Aluminum, 24" Compatible, fully butted tubing, tapered head tube, BSA threaded 73mm BB shell, 12x148 thru-axle sliding dropouts, Single speed or geared compatibile, internal cable routing, 30.9mm seat tube, dropper post compatible · Fork: Manitou J-Unit Comp 24", 100mm Travel, DJ Tune, 15x110mm thru-axle, Tapered ST
Suspension
Evaluate the suspension →Archived: Fork: Manitou J-Unit Comp 24", 100mm Travel, DJ Tune, 15x110mm thru-axle, Tapered ST
Drivetrain
Check drivetrain wear →Archived: Crankset: Prowheel, BSA-73, 140mm, Forged Arm, 30T, Boost · Bottom bracket: 73mm BSA,24mm Spindle Diameter · Cassette: 13T · Chain: KMC Z610, single speed, 1/2x3/32"
Brakes
Inspect the brakes →Archived: Brakes: (F) Tektro, mechanical disc, resin pads, 160mm / (R) SRAM Level T hydraulic disc, 2-Piston Caliper
Wheels and tires
Check wheels and tires →Archived: Rims: P.Series, 32 Hole, 26mm ID, disc brake only · Hubs: (F) Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h / (R) Bear Pawl, 6-bolt, 12x148TA, 32h, single speed · Front tire: Specialized Kicker Sport, 24x2.1" · Rear tire: Specialized Kicker Sport, 24x2.1"
Controls and contact points
Archived: Handlebar: Specialized P.Series MTB Dirt, 6061 alloy, 9-degree backsweep, 6-degree upsweep, 38mm rise, 750mm width, 31.8mm clamp · Stem: 35mm Specialized Alloy Trail Stem · Seatpost: Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm · Saddle: Soder Dirt, steel rails · Pedals: Specialized, platform
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery3 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
