2023 Specialized P.1
Specialty bicycle from the Velopedia specification archive.
- Original MSRP
- $649.99
- Colors
- Satin Rusted Red Overspray / Blaze / Morning Mist; Gloss Deep Marine / Purple Haze
- Weight
- 9.37kg (20 lb, 10.5 oz)
- Geometry
- 1 manufacturer size
- Archive ID
- 900001022
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
Hydraulic disc brakes shift routine service toward pad and rotor condition, fluid leaks and use of the correct bleed fluid. On the alloy frame, dents and hairline cracks around welds, pivots and heavily loaded junctions matter more than cosmetic scratches. A threaded bottom bracket still requires the correct shell width, thread standard and crank-spindle interface before replacement.
Brake service
Hydraulic disc
Pad and rotor condition plus the correct bleed fluid are the primary service checks.
Frame material
Aluminum / alloy
Dents and cracking around welds, pivots and loaded junctions deserve attention.
Bottom bracket
Threaded interface
Shell width, thread standard and crank-spindle interface still require confirmation.
Published weight
9.37kg (20 lb, 10.5 oz)
Frame size, pedals, tire setup and production substitutions can change the measured result.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 18 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2023 Specialized P.1 · Specialty
Frame and fork
Inspect the frame and fork →Archived: Frame: Specialized P.1, A1 Premium Alloy, 20", Fully Butted Tubing, Tapered Head Tube, BSA 73mm BB Shell, 12x148TA Sliding Dropouts, Single Speed or Geared Compatible, 52mm CL, Internal cable routing, 30.9 Seat Tube, Dropper Post Compatible · Fork: Specialized A1 Alloy, 20" Rigid, Tapered Alloy Steer Tube, 15x110TA, 372mm Axle to Crown · Aluminum
Drivetrain
Check drivetrain wear →Archived: Crankset: Specialized P.series, 52mm CL, 115mm Length · Bottom bracket: BSA 73mm · Cassette: 13T SS Cog · Chain: KMC Z1, 1/2x3/32", Single Speed
Brakes
Inspect the brakes →Archived: Brakes: (F) Tektro HD-J285, Hydraulic Disc, 160mm Rotor / (R) Tektro HD-J285, Hydraulic Disc, 160mm Rotor
Wheels and tires
Check wheels and tires →Archived: Rims: Specialized P.Series, 20", 32h, 26mm ID, Disc Brake Only · Hubs: (F) Alloy, 6-Bolt, 28H, 15x110 Boost / (R) Alloy, 6-Bolt, 28H, 12x148 Boost, 11-speed compatiable · Front tire: Specialzied Kicker Sport, 20x2.1" · Rear tire: Specialzied Kicker Sport, 20x2.1"
Controls and contact points
Archived: Handlebar: Mini Rise, Alloy Double Butted, 6-degree Backsweep, 600mm Width, 31.8mm , 19mm Bar End Diameter · Stem: 3D-forged alloy, 31.8mm, 6-degree rise · Seatpost: Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm · Saddle: Specialized P.series, Steel Rails · Pedals: Specialized Platform Pedal
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Specialized P.1, A1 Premium Alloy, 20", Fully Butted Tubing, Tapered Head Tube, BSA 73mm BB Shell, 12x148TA Sliding Dropouts, Single Speed or Geared Compatible, 52mm CL, Internal cable routing, 30.9 Seat Tube, Dropper Post Compatible |
|---|---|
| Frame Material | Aluminum |
| Fork | Specialized A1 Alloy, 20" Rigid, Tapered Alloy Steer Tube, 15x110TA, 372mm Axle to Crown |
| Fork Material | Aluminum |
Drivetrain
| Crankset | Specialized P.series, 52mm CL, 115mm Length |
|---|---|
| Bottom Bracket | BSA 73mm |
| BB Shell Width | 73 mm |
| Cassette | 13T SS Cog |
| Chain | KMC Z1, 1/2x3/32", Single Speed |
| Pedals | Specialized Platform Pedal |
Brakes
| Brakes | (F) Tektro HD-J285, Hydraulic Disc, 160mm Rotor / (R) Tektro HD-J285, Hydraulic Disc, 160mm Rotor |
|---|
Cockpit & Contact Points
| Handlebar | Mini Rise, Alloy Double Butted, 6-degree Backsweep, 600mm Width, 31.8mm , 19mm Bar End Diameter |
|---|---|
| Stem | 3D-forged alloy, 31.8mm, 6-degree rise |
| Saddle | Specialized P.series, Steel Rails |
| Seatpost | Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm |
Wheels & Tires
| Hubs | (F) Alloy, 6-Bolt, 28H, 15x110 Boost / (R) Alloy, 6-Bolt, 28H, 12x148 Boost, 11-speed compatiable |
|---|---|
| Rims | Specialized P.Series, 20", 32h, 26mm ID, Disc Brake Only |
| Spokes | Stainless, 14g |
| Front Tire | Specialzied Kicker Sport, 20x2.1" |
| Rear Tire | Specialzied Kicker Sport, 20x2.1" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 20" |
|---|---|
| Seat tube | 265 mm |
| Effective top tube | 449 mm |
| Head tube | 90 mm |
| Head-tube angle | 68.5° |
| Seat-tube angle | 72° |
| Chainstay / rear center | 320 mm |
| Wheelbase | 840 mm |
| Bottom-bracket drop | 5 mm |
| Bottom-bracket height | 259 mm |
| Reach | 310 mm |
| Stack | 429 mm |
| Fork offset / rake | 40 mm |
| Front center | 520 mm |
| Trail | 61 mm |
| Fork length / axle-to-crown | 380 mm |
| Crank length | 115 mm |
| Stem length | 35 mm |
| Handlebar width | 600 mm |
| Wheel size | 20inch |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.

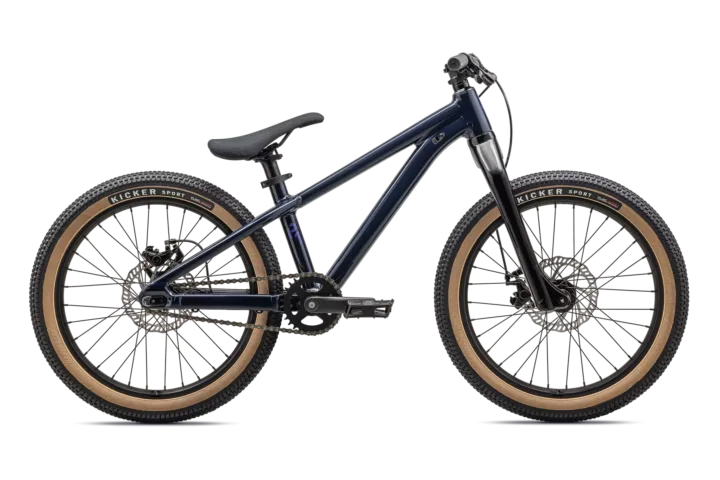

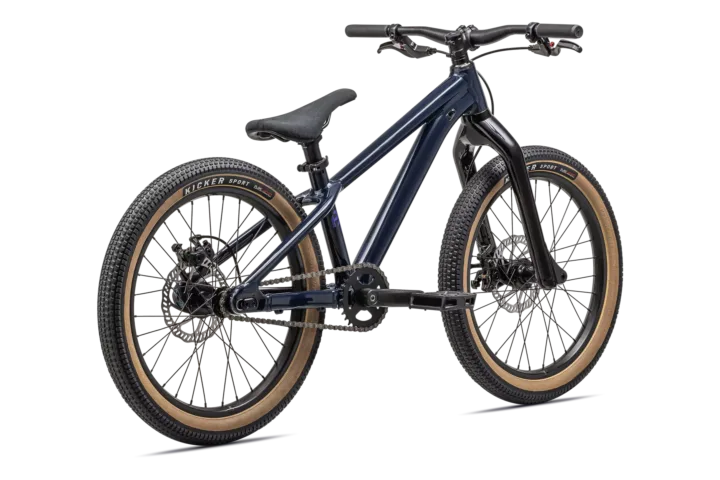

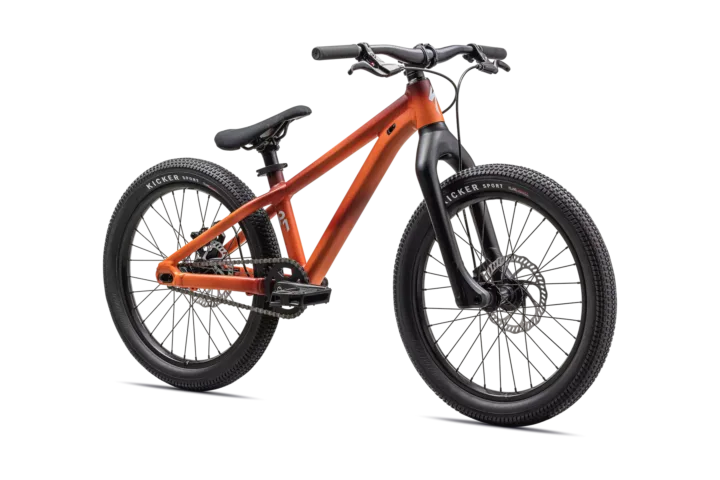

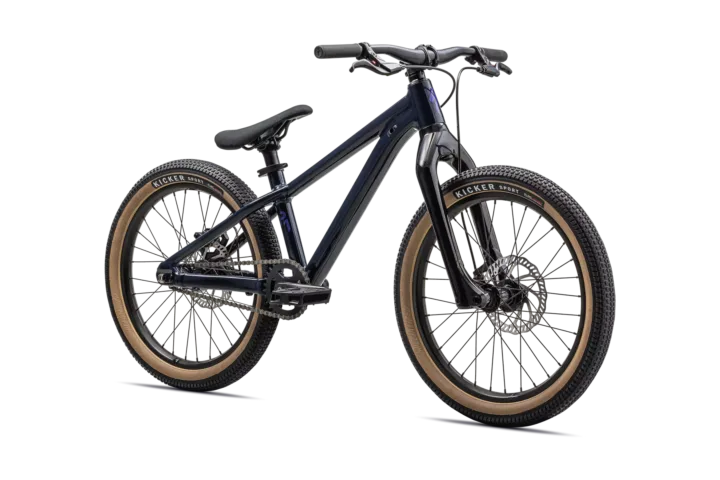

Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
