Velopedia Bicycle Archive

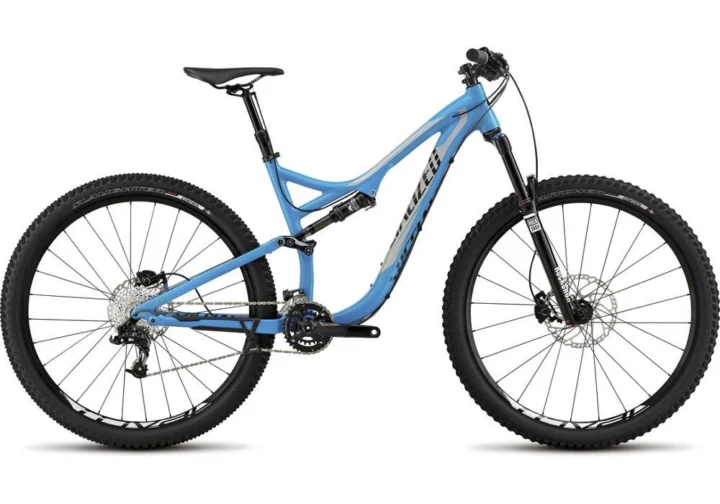

2015 Specialized STUMPJUMPER FSR COMP EVO 29
Mountain Dual Suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $3,400.00
- Sizes
- S, M, L, XL
- Colors
- GLOSS CYAN/FILTHY WHITE/BLACK, SATIN MET BLACK/HYPER/MOTO GREEN
- Archive ID
- 1243017
Current market
Checking current listings…Frameset
| Frame Construction | M5 hydroformed tubing, EVO 29" geometry, tapered headtube, PF30 BB, ISCG ’05, Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox Revelation RC 29, tapered alloy steerer, w/ lockout, compression, rebound adjust, 15mm thru-axle, 140mm travel |
| Fork Material | Suspension |
| Rear Shock | Custom FOX Float CTD Evolution w/ AUTOSAG, Climb, Trail, Descend settings and rebound adj., 195x48mm |
Drivetrain
| Component Group | SRAM mix |
|---|---|
| Shifters | SRAM X7, 10-speed, w/ MatchMaker clamp |
| Front Derailleur | SRAM X7, 2x10, S3 direct mount |
| Rear Derailleur | SRAM X9 Type 2, 10-speed, mid cage |
| Crankset | Custom SRAM S-1250, 7050 alloy arms, 10-speed Trail double, PF30 spindle, 36/22, 104/64mm BCD spider |
| Bottom Bracket | SRAM, PF30, OS press-in bearings, sealed cartridge |
| Rear Cogs | SRAM PG 1030, 10-speed, 11-36 |
| Chain | SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish |
| Pedals | Resin test ride, w/ toe clips, CEN std. |
Brakes
| Brakes | Shimano Deore BR-M615, hydraulic disc, Ice Tech pads, S/M: 180mm rotor, Others: 200mm, Shimano Deore BR-M615, hydraulic disc, Ice Tech pads, S/M: 160mm rotor, Others: 180mm |
|---|
Cockpit & Contact Points
| Headset | 1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings |
|---|---|
| Handlebar | Specialized XC, mini rise, 6000 butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm |
| Stem | Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise |
| Saddle | Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm |
| Seatpost | Command Post BlackLite, alien head design, single bolt head, w/ remote adjust lever, 30.9mm, S: 100mm travel, Others: 125mm |
Wheels & Tires
| Hubs | Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h, Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 32h |
|---|---|
| Rims | Roval Traverse Fattie 29, alloy disc, 29mm inner width, 32h |
| Spokes | DT Swiss Industry, stainless |
| Wheel Size | 29 |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
