Velopedia Bicycle Archive

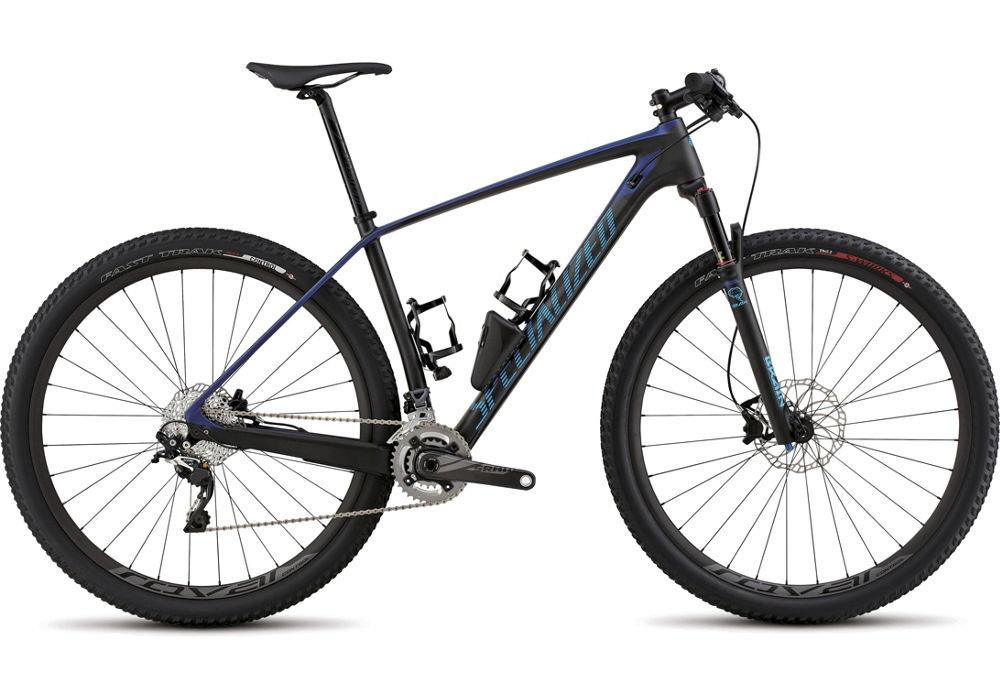

2015 Specialized STUMPJUMPER EXPERT CARBON 29
Mountain Hardtail bicycle from the Velopedia specification archive.
- Original MSRP
- $5,000.00
- Sizes
- S, M, L, XL
- Colors
- Satin Charcoal Tint/Black/Red, Satin Carbon/Cyan/Deep Blue
- Archive ID
- 1465772
Current market
Checking current listings…Frameset
| Frame Construction | FACT 10m carbon, 29" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142mm dropouts, PM 160 rear brake, replaceable alloy rear derailleur hanger |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox SID 29 Brain, Solo Air spring, tapered alloy steerer, bottom-mount BrainFade, rebound adjust, 15mm thru-axle, S: 80mm travel, Others: 90mm |
| Fork Material | Suspension |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano SLX, 10-speed, trigger |
| Front Derailleur | SRAM X7, 10-speed, top pull |
| Rear Derailleur | Shimano XTR Shadow Plus, 10-speed, GS mid cage |
| Crankset | Custom SRAM S-2200, carbon, PF30 spindle, 36/22, 104/64mm BCD spider |
| Bottom Bracket | SRAM, PF30, OS press-in bearings, sealed cartridge |
| Rear Cogs | SRAM PG 1050, 10-speed, 11-36 |
| Chain | SRAM PC 1051, 10-speed, w/ PowerLink |
| Pedals | Resin test ride, w/ toe clips, CEN std. |
Brakes
| Brakes | Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor, S/M: 180mm rotor, Others: 160mm, Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, 160mm Storm SL rotor |
|---|
Cockpit & Contact Points
| Headset | 1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings |
|---|---|
| Handlebar | Specialized flat, 8-degree backsweep, 31.8mm |
| Stem | Specialized, forged alloy, 6-degree rise |
| Saddle | Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm |
| Seatpost | Specialized alloy, single bolt, 27.2mm |
Wheels & Tires
| Hubs | Roval Control Carbon 29, 15mm thru-axle, 32h, Roval Control Carbon 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 32h |
|---|---|
| Rims | Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h |
| Spokes | DT Swiss Revolution |
| Front Tire | S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.2", Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0" |
| Wheel Size | 29 |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
