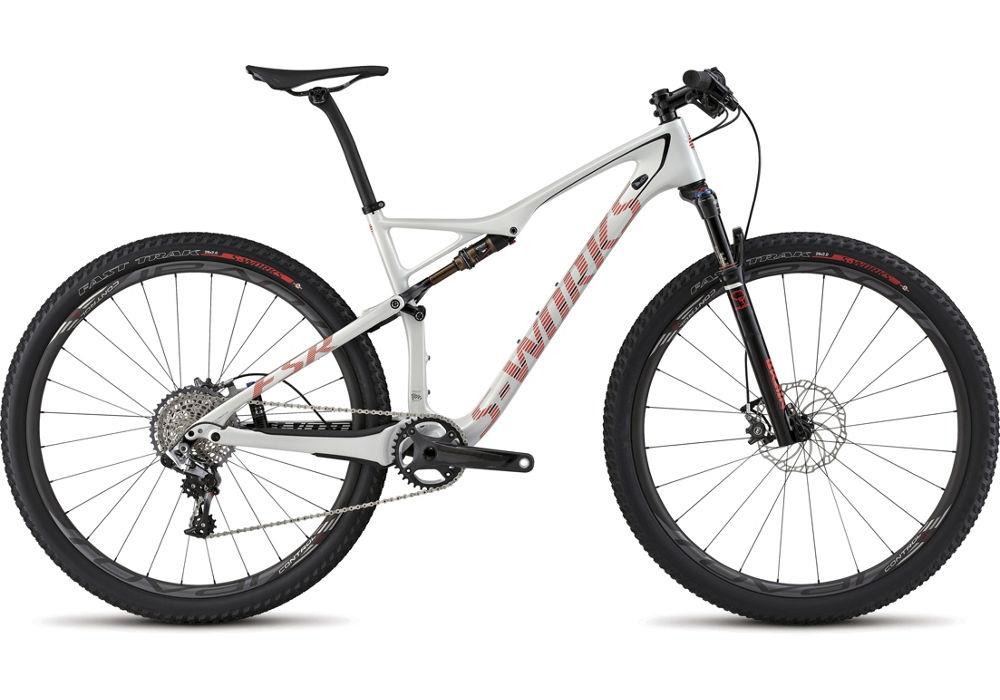

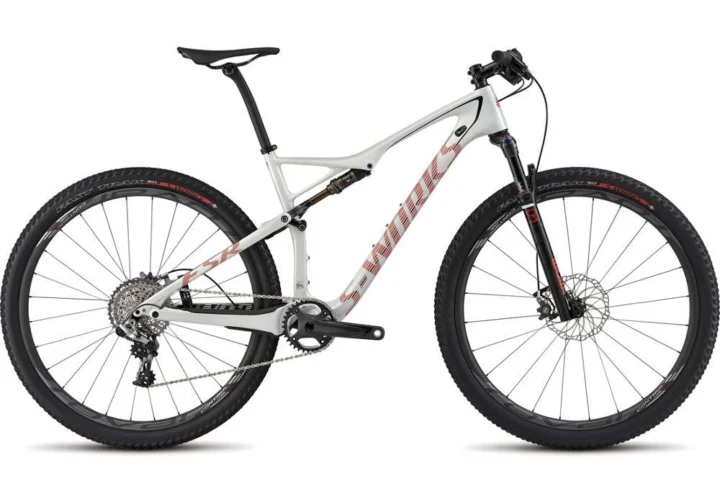

2015 Specialized S-Works Epic 29 World CUP

Archived: 2015 Specialized S-Works Epic 29 World CUP · Mountain Dual Suspension · Published sizes: S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Carbon Fiber · Fork: RockShox SID World Cup 29 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, 95mm travel · Suspension

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: RockShox SID World Cup 29 Brain, Solo Air spring, tapered carbon steerer, top-mount BrainFade, rebound adjust, 15mm thru-axle, 95mm travel · Rear shock: FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve, BrainFade adjust, 200x48mm, 95mm travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Group: SRAM XX1 · Shifters: SRAM XX1, 11-speed, trigger · Rear derailleur: SRAM XX1, 11-speed · Crankset: S-Works FACT carbon, custom XX1 chainring, OSBB, 32T, 104mm BCD spider · Bottom bracket: Praxis, PF30, OS press-in bearings, sealed cartridge · Rear cogs: SRAM XX1, 11-speed, 10-42 · Chain: SRAM PC-XX1, 11-speed, w/ PowerLink

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Magura MT8, hydraulic disc, Hi Friction pad, carbon master cylinder, alloy caliper, 180mm Storm SL rotor, Magura MT8, hydraulic disc, Hi Friction pad, carbon master cylinder, alloy caliper, 160mm Storm SL rotor

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 29 · Rims: Roval Control SL 29, alloy hub body w/ Labyrinth design, 15mm thru-axle, 24h, Roval Control SL 29, carbon disc, 22mm internal width, 24/28h · Hubs: Roval Control SL 29 142+, DT Swiss Star Ratchet, XX1 driver body, 12mm thru-axle, 28h · Front tire: S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.0", S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.0"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: 1-1/8" and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings · Handlebar: Specialized flat, carbon, 8-degree backsweep, 31.8mm · Stem: Syntace F109, 6-degree rise · Seatpost: S-Works FACT carbon, 20mm offset, 27.2mm · Saddle: Body Geometry Phenom Pro, carbon rails, 143mm · Pedals: Resin test ride, w/ toe clips, CEN std.

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
