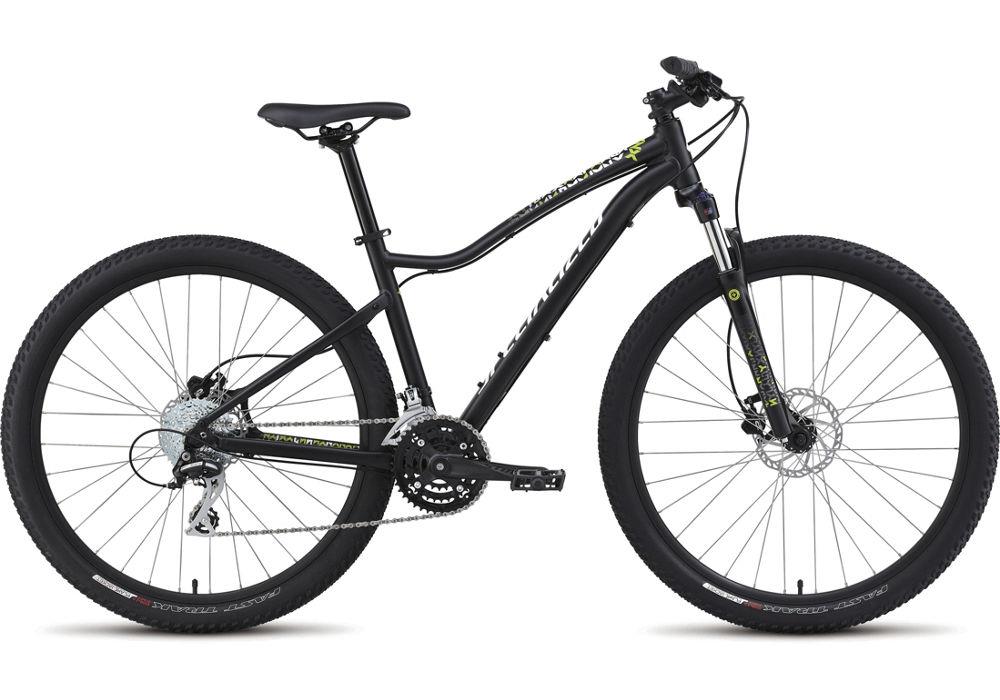

2015 Specialized Jynx Sport 650B

Archived: 2015 Specialized Jynx Sport 650B · Mountain Hardtail · Published sizes: XS, S, M, L

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Specialized A1 Premium Aluminum, Women's Recreational XC Geometry, women's butted tubesets, forged dropouts, replaceable derailleur hanger, kickstand mount · Fork: Custom SR Suntour XCT 650b, w/ custom Multi-Circuit Damping, alloy lowers, custom coil/MCU spring weights, Hi-Ten 28mm stanchions, 1-1/8" steerer, hydraulic lockout w/ preload adjust, disc mount, 80mm travel · Suspension

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: Custom SR Suntour XCT 650b, w/ custom Multi-Circuit Damping, alloy lowers, custom coil/MCU spring weights, Hi-Ten 28mm stanchions, 1-1/8" steerer, hydraulic lockout w/ preload adjust, disc mount, 80mm travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Group: Mountian mix · Shifters: Shimano Altus Rapidfire Plus, SL type, w/ optical display · Front derailleur: Shimano Altus, high mount, bottom swing, dual-pull · Rear derailleur: Shimano Acera, 8-speed, SGS cage · Crankset: Specialized Stout, forged alloy, 8-speed, square taper spindle · Bottom bracket: Square taper, cartridge bearings · Rear cogs: Sunrace, 8-speed, 11-34 · Chain: KMC X8, 8-speed, reusable Missing Link

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Tektro Auriga, hydraulic disc, resin/metallic pads, tooled women's reach adjust

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 27.5 · Rims: Specialized Stout, 650b disc, alloy double-wall, pin joint, 25mm inner width, 32h · Hubs: Specialized Hi Lo disc, alloy double-sealed, ground race, QR, 32h, Specialized Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h · Front tire: Specialized Fast Trak Sport, 40TPI, wire bead, Flak Jacket protection, 650bx2.0", Specialized Fast Trak Sport, 40TPI, wire bead, Flak Jacket protection, 650bx2.0"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: 1-1/8" upper/lower, Zerostack 44, steel cups, loose ball bearings · Handlebar: Specialized, low rise, double butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm · Stem: Specialized 3D forged alloy, 4-bolt, 7-degree rise, anti-corrosion hardware · Seatpost: Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware · Saddle: Body Geometry Women's Riva Sport Plus, steel rails, 155mm · Pedals: Composite platform, w/ reflectors, 9/16"

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
