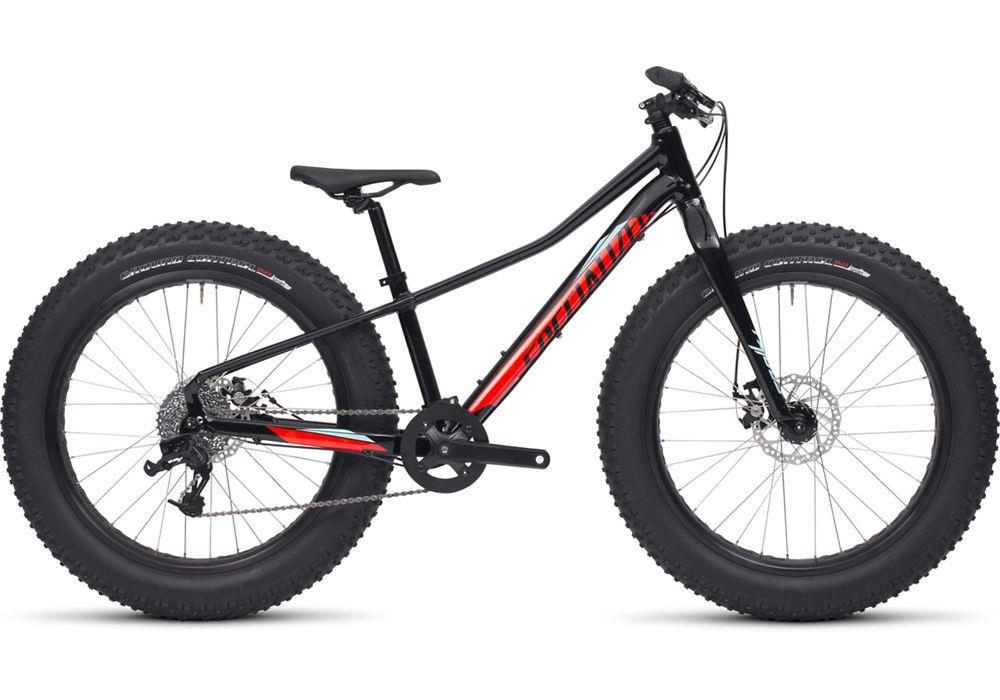

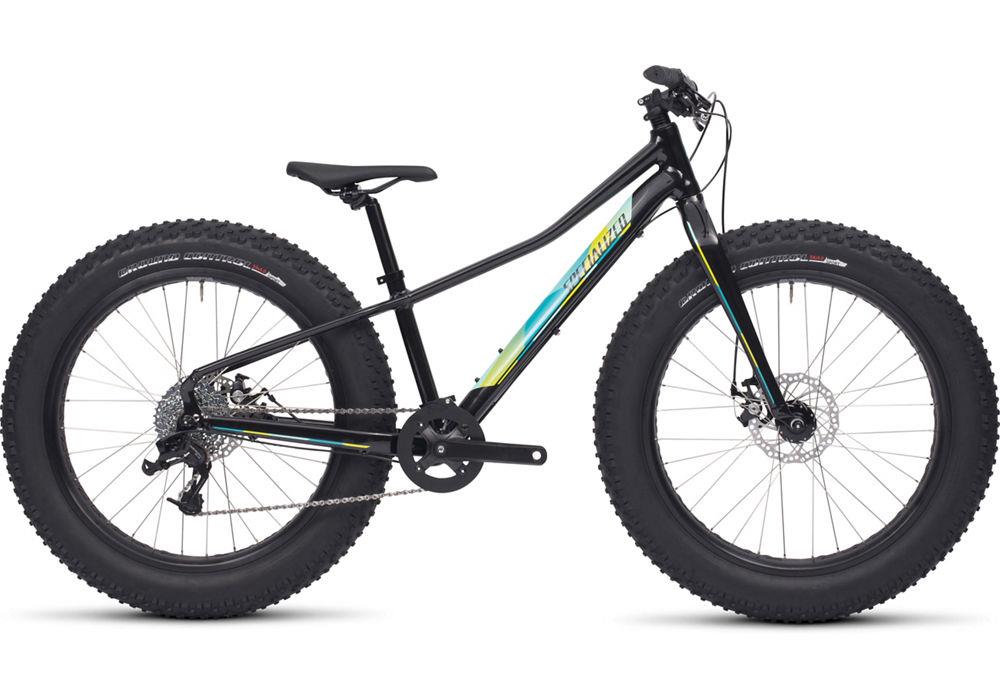

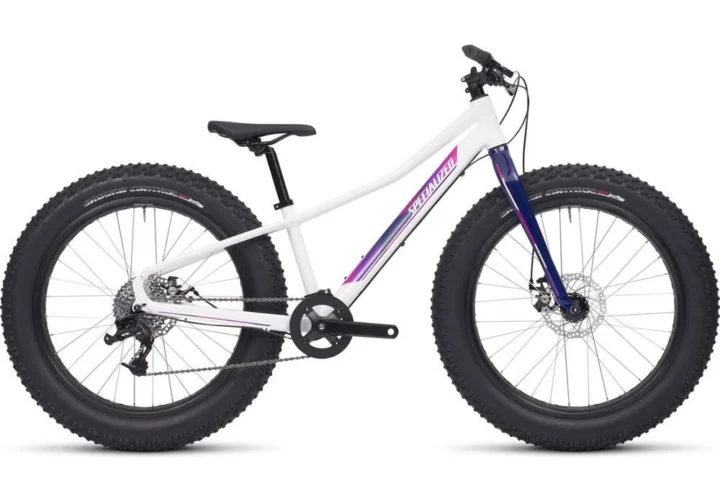

2015 Specialized Fatboy 24

Archived: 2015 Specialized Fatboy 24 · Fat Bike · Published sizes: One Size

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Specialized A1 Premium Aluminum, fully butted w/ smooth welds, ZeroStack headtube, 170mm rear hub spacing, replaceable alloy derailleur hanger · Fork: Specialized A1 Premium Aluminum, 1-1/8" alloy steerer · Aluminum

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Group: Mountian mix · Shifters: SRAM X4, 9-speed, trigger · Rear derailleur: SRAM X4, 9-speed, mid cage · Crankset: Forged alloy, 32T, w/ chainguard · Bottom bracket: Square taper, sealed cartridge bearings, 100mm shell, 164mm axle · Rear cogs: Sunrace, 9-speed, 11-34 · Chain: KMC X9, 9-speed, reusable Missing Link

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Tektro Aries, mechanical disc, organic pads

• Check both cables and housings for corrosion, fraying or drag. Confirm each caliper releases cleanly, then inspect pad thickness, rotor wear and rotor alignment.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 24 · Rims: Specialized Fatboy, alloy disc, single wall, 90mm wide, sleeve joint, 32h · Front tire: Specialized Ground Control Fat, 60TPI, wire bead, 24x4.0", Specialized Ground Control Fat, 60TPI, wire bead, 24x4.0"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: 1-1/8" threadless, ZeroStack, semi-cartridge bearings · Handlebar: Specialized flat, 6061 double butted alloy, 9-degree backsweep, 31.8mm · Stem: Specialized 3D forged alloy, 4-bolt, 7-degree rise · Seatpost: Alloy, single bolt, 27.2mm · Saddle: Specialized youth, steel rails · Pedals: Composite platform, w/ reflectors, 9/16"

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
