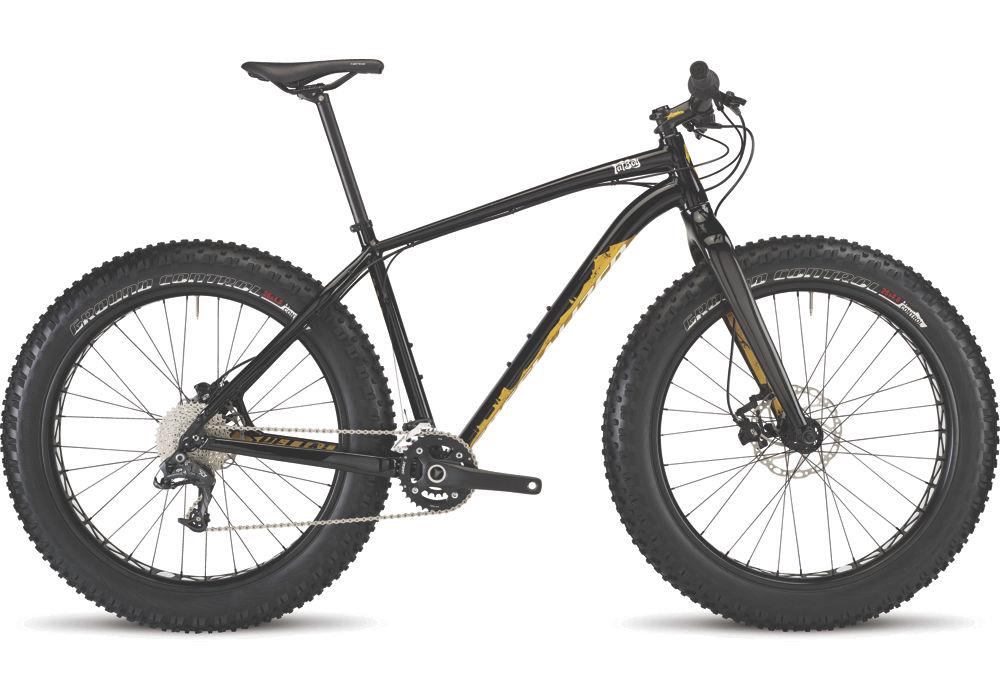

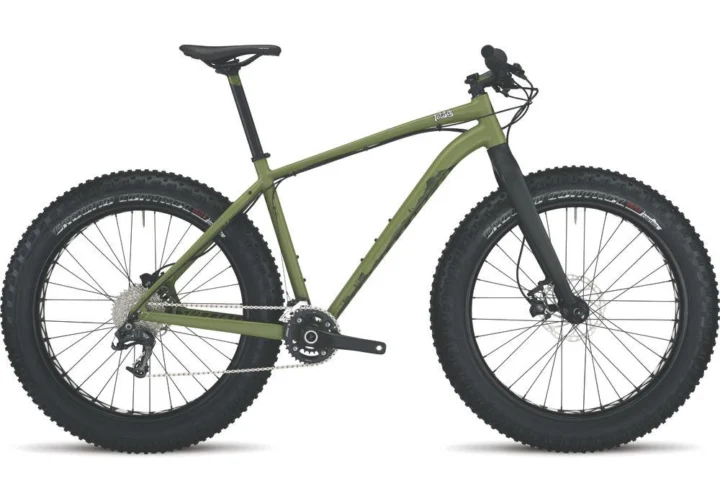

2015 Specialized FATBOY
Fat Bike bicycle from the Velopedia specification archive.
- Original MSRP
- $2,100.00
- Sizes
- S, M, L, XL
- Colors
- Satin Army Green/Forest Green, Gloss Black/Gold/White, Gloss Gallardo Orange/Cyan/White
- Archive ID
- 1292468
Frameset
| Frame Construction | Specialized M4 Premium Aluminum, fully butted w/ smooth welds, tapered headtube, post-mount disc dropouts, 190mm rear hub spacing, replaceable alloy derailleur hanger |
|---|---|
| Frame Material | Aluminum |
| Fork | Specialized FACT carbon, full monocoque, tapered steerer, 135mm hub spacing |
| Fork Material | Carbon Fiber |
Drivetrain
| Component Group | Mountian mix |
|---|---|
| Shifters | SRAM S-Series, Grip Shift, 10-speed |
| Front Derailleur | SRAM X7, 2x10, low direct mount |
| Rear Derailleur | SRAM X7 Type 2, 10-speed, medium cage |
| Crankset | Custom Samox, 2x10, alloy, 100mm CNC spindle, w/ BB, 104/64mm BCD spider |
| Bottom Bracket | Samox, PF30 |
| Rear Cogs | Sunrace, 10-speed, 11-36 |
| Chain | KMC X10L, 10-speed, reusable Missing Link |
| Pedals | Resin test ride, w/ toe clips, CEN std. |
Brakes
| Brakes | Tektro Gemini, hydraulic disc, resin pads |
|---|
Cockpit & Contact Points
| Headset | 1-1/8" upper, 1-1/2" lower, Campy style, integrated sealed cartridge bearings, split crown race, 3.8mm cone spacer |
|---|---|
| Handlebar | Specialized, low rise, double butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm |
| Stem | Specialized, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware |
| Saddle | Body Geometry mountain, steel rails, 143mm |
| Seatpost | Alloy, 2-bolt, 12.5mm offset, 30.9mm, anti-corrosion hardware |
Wheels & Tires
| Hubs | Specialized MTB Hi Lo disc, alloy, sealed cartridge bearings, 135mm wide, QR, 32h |
|---|---|
| Rims | Specialized Fatboy SL, alloy disc, single wall, 90mm wide, sleeve joint, hookless design, 32h |
| Spokes | Stainless, 14g |
| Front Tire | Specialized Ground Control Fat, 120TPI, folding bead, 26x4.6", Specialized Ground Control Fat, 120TPI, folding bead, 26x4.6" |
| Wheel Size | 26 |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
