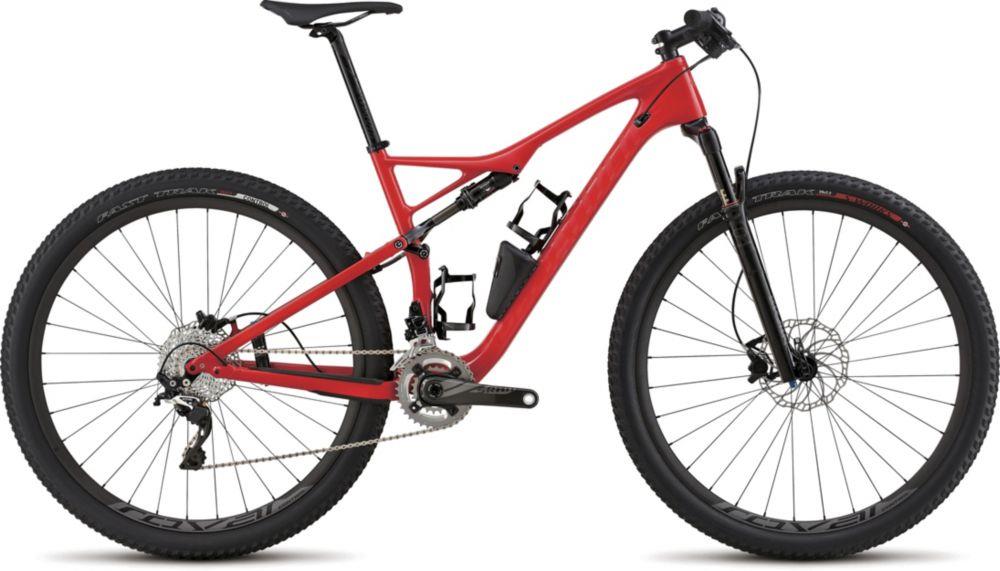

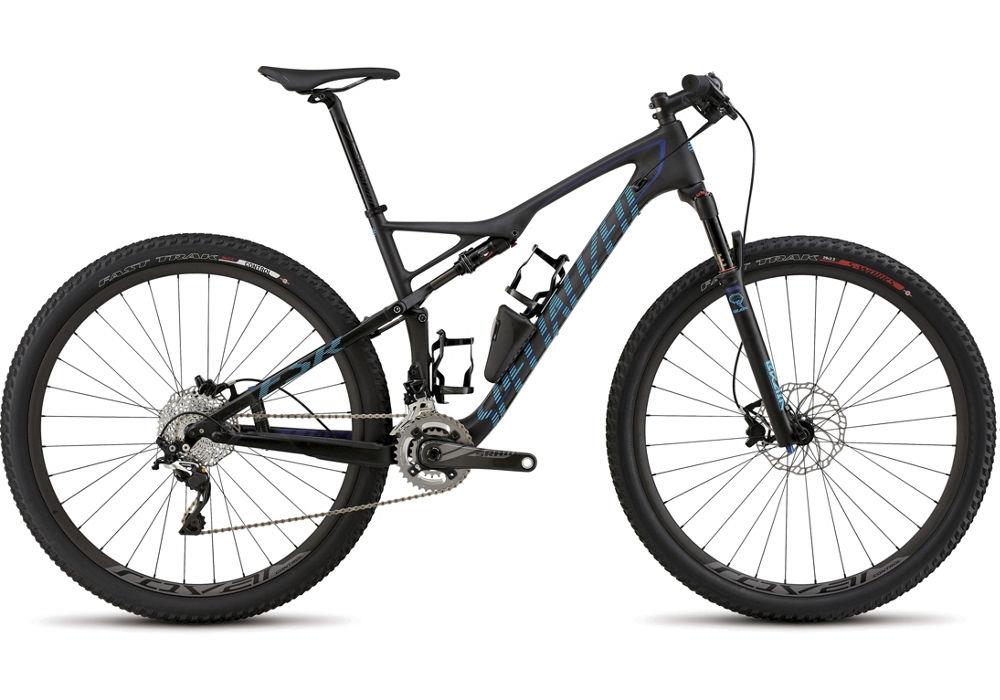

2015 Specialized EPIC EXPERT CARBON 29
Mountain Dual Suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $6,300.00
- Sizes
- S, M, L, XL
- Colors
- Satin Charcoal Tint/Black/Red, Gloss/Satin Red, Satin Carbon/Cyan/Deep Blue
- Archive ID
- 1140136
Frameset
| Frame Construction | FACT 9m carbon, 29" geometry, FACT IS construction, FACT carbon front triangle, M5 alloy rear triangle, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, 100mm travel |
|---|---|
| Frame Material | Carbon Fiber/Aluminum |
| Fork | RockShox SID 29 Brain, Solo Air spring, tapered alloy steerer, bottom-mount BrainFade, rebound adjust, 15mm thru-axle, 100mm travel |
| Fork Material | Suspension |
| Rear Shock | FOX/Specialized remote Mini-Brain w/ AUTOSAG, inertia valve, BrainFade adjust, 205x53mm, 100mm travel |
Drivetrain
| Component Group | Mountian mix |
|---|---|
| Shifters | Shimano SLX, 10-speed, trigger |
| Front Derailleur | Custom SRAM X0, 2x10, high direct mount |
| Rear Derailleur | Shimano XTR Shadow Plus, 10-speed, GS mid cage |
| Crankset | Custom SRAM S-2200, carbon, PF30 spindle, 22/36, 104/64mm BCD spider |
| Bottom Bracket | SRAM, PF30, OS press-in bearings, sealed cartridge |
| Rear Cogs | SRAM PG 1050, 10-speed, 11-36 |
| Chain | SRAM PC 1051, 10-speed, w/ PowerLink |
| Pedals | Resin test ride, w/ toe clips, CEN std. |
Brakes
| Brakes | Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor, S/M: 160mm rotor, Others: 180mm, Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, 160mm Storm SL rotor |
|---|
Cockpit & Contact Points
| Headset | 1-1/8" and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings |
|---|---|
| Handlebar | Specialized flat, 8-degree backsweep, 31.8mm |
| Stem | Specialized, forged alloy, 6-degree rise |
| Saddle | Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm |
| Seatpost | Specialized alloy, single bolt, 27.2mm |
Wheels & Tires
| Hubs | Roval Control Carbon 29, 15mm thru-axle, 32h, Roval Control Carbon 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 32h |
|---|---|
| Rims | Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h |
| Spokes | DT Swiss Revolution |
| Front Tire | S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.2", Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0" |
| Wheel Size | 29 |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
