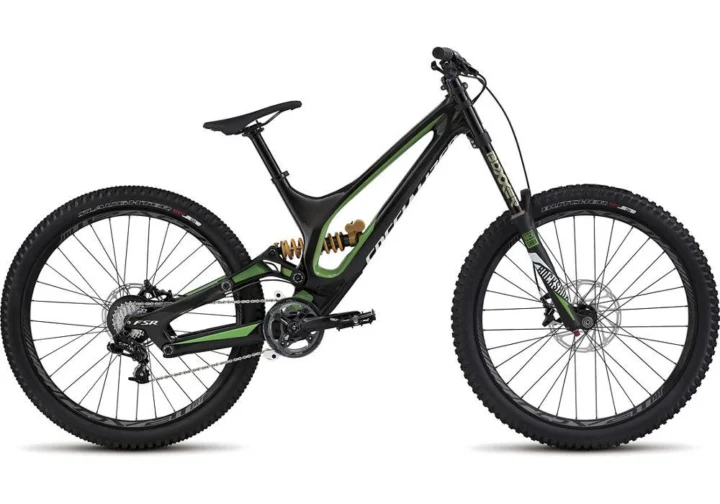

2015 Specialized Demo 8 I Carbon

Archived: 2015 Specialized Demo 8 I Carbon · Mountain Dual Suspension · Published sizes: Short, M, Long, X-Long

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: FACT 10m carbon, S3 Geometry, carbon front triangle, carbon seat stay, FACT IS construction, PF30 BB, full internal cable routing, 135mm dropouts, lipped and sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm · Fork: RockShox Boxxer RC 650b, alloy steerer, compression and rebound adj., 20mm Maxle DH thru-axle, S: extra-soft spring, M: soft spring, L/XL: medium spring, 200mm travel · Suspension

• Inspect composite areas in bright light for impact marks, cracks, ripples or crushed clamp zones. Check metal sections and welds separately for dents or cracking.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: RockShox Boxxer RC 650b, alloy steerer, compression and rebound adj., 20mm Maxle DH thru-axle, S: extra-soft spring, M: soft spring, L/XL: medium spring, 200mm travel · Rear shock: Custom Öhlins TTX22M, coil over w/ piggy back, spherical bearing mount, high/low speed compression, rebound adj., 9.5x3.0", M: 76x434lb, L: 84x479lb, XL: 92x525lb

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Group: DH mix · Shifters: SRAM X7, 10-speed, w/ MatchMaker clamp · Rear derailleur: SRAM X9 Type 2, 10-speed w/ shift limit, mid cage · Crankset: Custom SRAM, PB30, 7050 alloy arms, 36T ring · Bottom bracket: SRAM, BB30, 83mm adapter · Rear cogs: SRAM PG 1030, hot rod 7-speed setup, 11-24

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: SRAM Guide R, metallic pads, Guide R caliper, 200mm rotor, SRAM Guide R, metallic pads, Guide R caliper, 200mm rotor

• Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 27.5 · Rims: Roval 650b, alloy, 24mm inner width, 32h · Hubs: Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 32h, Specialized Hi Lo disc, sealed cartridge bearings, 12x135mm, 32h · Front tire: Specialized Butcher DH, 60TPI, wire bead, dual compound, 650bx2.5", Specialized Slaughter DH, 60TPI, wire bead, dual compound, 650bx2.3"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: 1-1/2" semi-integrated for 1-1/8" steerer, cartridge bearings · Handlebar: Specialized Demo, low-rise, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 31.8mm · Stem: Specialized P.Series MTB, direct mount, forged alloy, 4-bolt · Seatpost: Specialized 6061 alloy, 2-bolt, 0mm setback, 30.9mm · Saddle: Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm · Pedals: Specialized Boomslang, 10mm low-profile, sealed bearing

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
