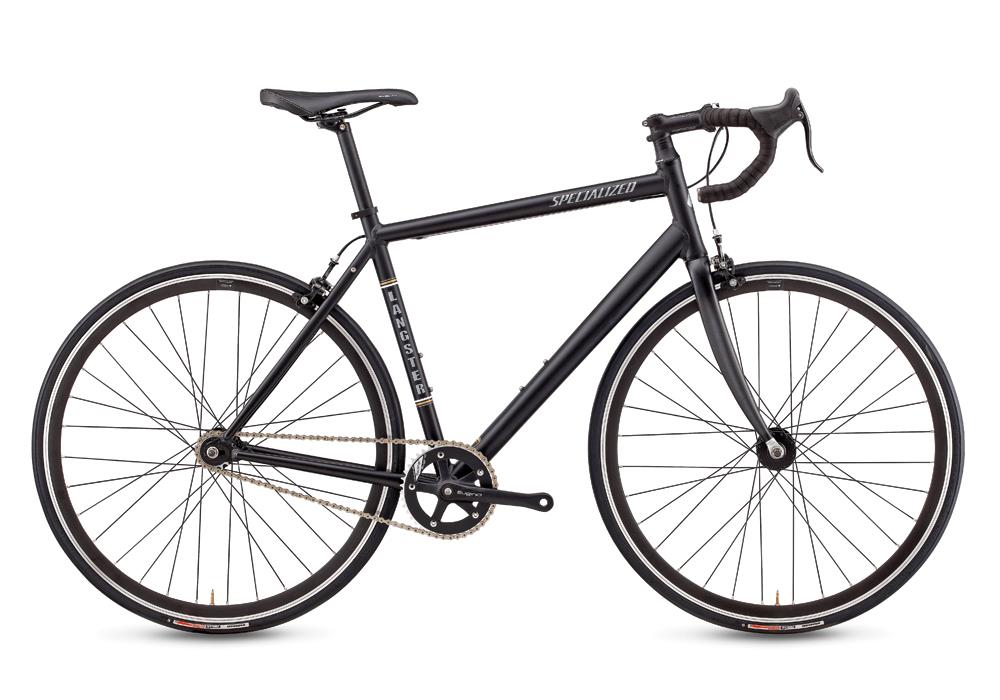

2010 Specialized Langster

Original specifications: Track Mix drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #19245
Model year
2010
Category
Track
Sizes
49cm, 52cm, 54cm, 56cm, 58cm, 61cm
Colors
Black
In this record
24 specifications · archived image
Model history 11 other years

Browse other years

Compare side by side

Identification clues

2010 archived details

Published colors
Black
Frame
A1 Premium aluminum
Original equipment
Track Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildA1 Premium aluminum · Track Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

6 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

49cm52cm54cm56cm58cm61cm

Published colors

Black
View 6 archived size/color combinations
SizeColor
49cmBlack
52cmBlack
54cmBlack
56cmBlack
58cmBlack
61cmBlack

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialA1 Premium aluminum
ForkSpecialized FACT carbon
Fork MaterialCarbon/aluminum steerer, aero crown

Drivetrain

Component GroupTrack Mix
CranksetSugino Zen Messenger, 42 teeth
Bottom BracketSealed cartridge, 103mm spindle
BB Shell Width68mm
CassetteShimano MX30
Rear Cogs1-speed, 16 teeth
ChainKMC Z510HX
PedalsAlloy Cage toe/clip & strap

Brakes

BrakesLight dual pivot brakes, Tektro short reach for drop bars levers

Cockpit & Contact Points

Headset1 1/8" Specialized Mindset
HandlebarSpecialized Elite 6061 alu short drop
Handlebar ExtensionsNot included
Stem3D Forged
SaddleSpecialized Rival Cr-Mo
SeatpostSpecialized Sport aluminum, 27.2mm diameter

Wheels & Tires

HubsTrack bolt-on
RimsAlex Race 32, 32-hole
SpokesStainless, 14ga. (2.0mm)
Front Tire700 x 23c Specialized Mondo Sport
Wheel Size700c wheels

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
700 x 23c Specialized Mondo Sport
Seatpost · Original
Specialized Sport aluminum

27.2mm diameter

Saddle · Original
Specialized Rival Cr-Mo
More parts (3)Fewer parts
Handlebar · Original
Specialized Elite 6061 alu short drop
Headset · Original
1 1/8" Specialized Mindset
Rims · Original
Alex Race 32

32-hole

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 23c Specialized Mondo Sport
Drivetrain
1-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Sealed cartridge, 103mm spindle · 68mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Specialized FACT carbon · Carbon/aluminum steerer, aero crown

Archived: Group: Track Mix · Crankset: Sugino Zen Messenger, 42 teeth · Bottom bracket: Sealed cartridge, 103mm spindle · Cassette: Shimano MX30 · Rear cogs: 1-speed, 16 teeth · Chain: KMC Z510HX

Archived: Brakes: Light dual pivot brakes, Tektro short reach for drop bars levers

Archived: Wheel size: 700c wheels · Rims: Alex Race 32, 32-hole · Hubs: Track bolt-on · Front tire: 700 x 23c Specialized Mondo Sport

Controls and contact points

Archived: Headset: 1 1/8" Specialized Mindset · Handlebar: Specialized Elite 6061 alu short drop · Stem: 3D Forged · Seatpost: Specialized Sport aluminum, 27.2mm diameter · Saddle: Specialized Rival Cr-Mo · Pedals: Alloy Cage toe/clip & strap
