Uses front tire 20×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

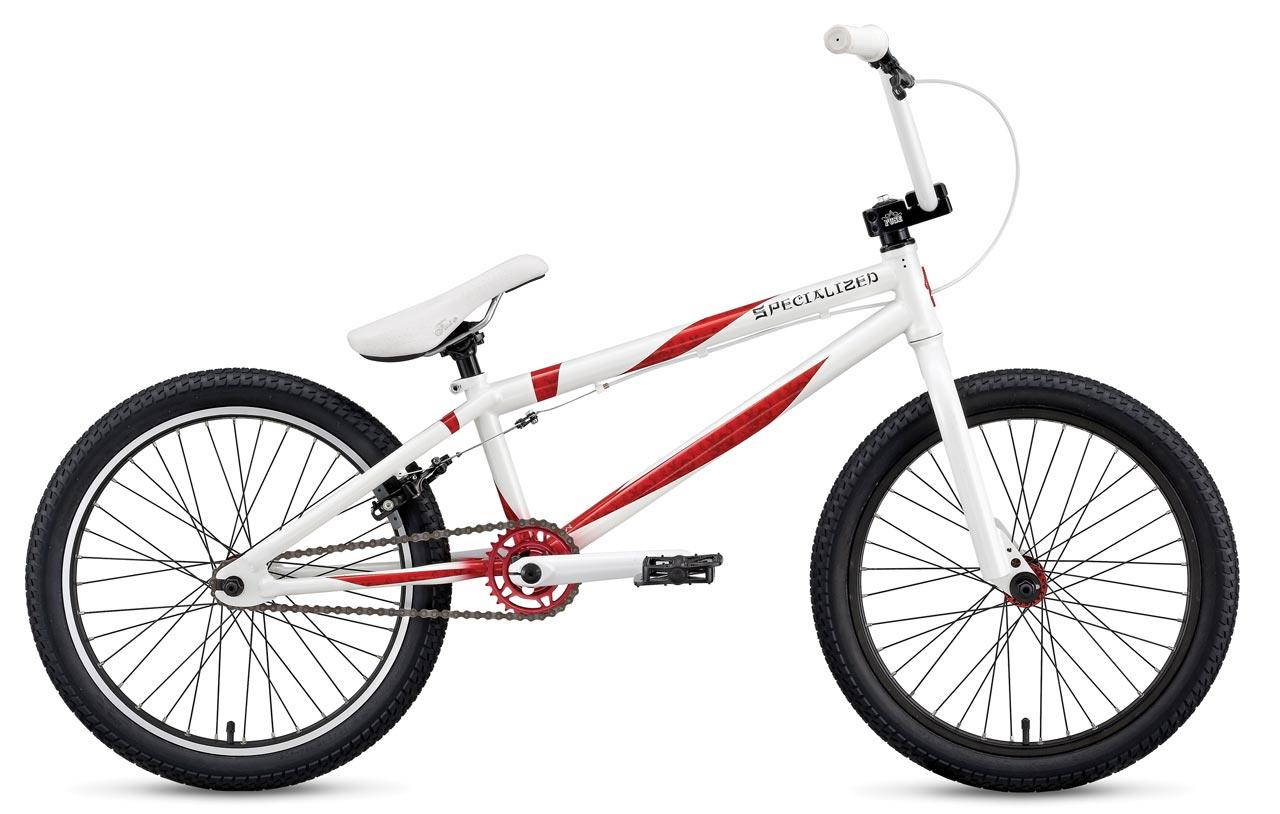

2009 Specialized Fuse 3
Original specifications: BMX drivetrain · 20" wheels.
Planning to sell? Draft your listing
At a glance
Archive #15732- Model year
- 2009
- Category
- BMX
- Original MSRP
- $480.00
- Sizes
- 20.75" TT
- Colors
- Gloss Eggplant, Gloss White
- In this record
- 24 specifications · archived image · original MSRP
Model history 4 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Gloss Eggplant, Gloss White
- Frame
- Chromoly
- Original equipment
- BMX
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildChromoly · BMX · 20" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly |
| Fork | Specialized |
| Fork Material | Chromoly/Hi-ten, unicrown crown |
Drivetrain
| Component Group | BMX |
|---|---|
| Crankset | Tubular Chromoly, 28 teeth |
| Bottom Bracket | Mid BB |
| Cassette | Odyssey |
| Rear Cogs | 1-speed, 13 teeth |
| Chain | KMC Z510H, 1/2 x 1/8" |
| Pedals | Specialized alloy platform |
Brakes
| Brakes | Tektro FX-15 U-brake rear brakes, Unspecified front/Tektro 275A two finger rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA Impact |
|---|---|
| Handlebar | Hi-Ten |
| Handlebar Extensions | Not included |
| Stem | Specialized Fuse |
| Saddle | Specialized Fuse Jump |
| Seatpost | Specialized alloy two bolt, 25.4mm diameter |
Wheels & Tires
| Hubs | Specialized Fuse 14mm |
|---|---|
| Rims | Specialized Fuse, 36-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) |
| Spoke Nipples | Brass nipples |
| Front Tire | 20 x 2.10" Specialized Rhythm Lite Sport |
| Wheel Size | 20" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
More parts (4)Fewer parts
25.4mm diameter
36-hole
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 20 x 2.10" Specialized Rhythm Lite Sport
- Drivetrain
- 1-speed
- Seatpost diameter
- 25.4 mm
- Bottom bracket / shell
- Mid BB
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Specialized · Chromoly/Hi-ten, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: BMX · Crankset: Tubular Chromoly, 28 teeth · Bottom bracket: Mid BB · Cassette: Odyssey · Rear cogs: 1-speed, 13 teeth · Chain: KMC Z510H, 1/2 x 1/8"
Brakes
Inspect the brakes →Archived: Brakes: Tektro FX-15 U-brake rear brakes, Unspecified front/Tektro 275A two finger rear levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 20" wheels · Rims: Specialized Fuse, 36-hole · Hubs: Specialized Fuse 14mm · Front tire: 20 x 2.10" Specialized Rhythm Lite Sport
Controls and contact points
Archived: Headset: 1 1/8" FSA Impact · Handlebar: Hi-Ten · Stem: Specialized Fuse · Seatpost: Specialized alloy two bolt, 25.4mm diameter · Saddle: Specialized Fuse Jump · Pedals: Specialized alloy platform
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
