Velopedia Bicycle Archive

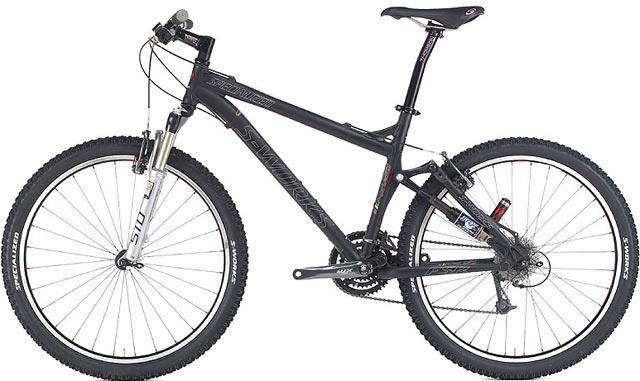

2003 Specialized S-Works FSR
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $4,880.00
- Sizes
- Large, medium, small, xlarge
- Colors
- Black Ano
- Archive ID
- 30181
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Specialized M5 Aluminum |
| Fork | Rock Shox Sid World Cup, 80mm travel |
| Fork Material | Aluminum/magnesium, single crown |
| Rear Shock | Specialized BRAIN |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano XTR Dual Control STI |
| Front Derailleur | Shimano Deore XT top-swing, bottom-pull/clamp-on 34.9mm |
| Rear Derailleur | Shimano XTR SGS |
| Crankset | Shimano XTR M960, 22/32/44 teeth |
| Bottom Bracket | Shimano XTR |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano CN-HG92, 1/2 x 3/32" |
| Pedals | Not included |
Brakes
| Brakes | Shimano XTR V-Brake brakes, Shimano XTR RapidFire SL levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Specialized cartridge |
|---|---|
| Handlebar | Specialized Carbon |
| Handlebar Extensions | Not included |
| Stem | Thomson Elite |
| Saddle | Specialized S-Works |
| Seatpost | Thomson Elite, 30.9mm diameter |
Wheels & Tires
| Hubs | Front: Specialized S-Works, Rear: DT Hugi |
|---|---|
| Rims | Mavic X517, 28-hole/32-hole |
| Spokes | DT stainless steel, 15/17ga. (1.8/1.5mm) double-butted |
| Front Tire | 26 x 2.00" Specialized S-Works Roll-X |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
