Ratio2.25:1
Estimated speed At 90 RPM
Gear
Uses front tire 16×2.125; rear size isn’t listed.
Velopedia Bicycle Archive

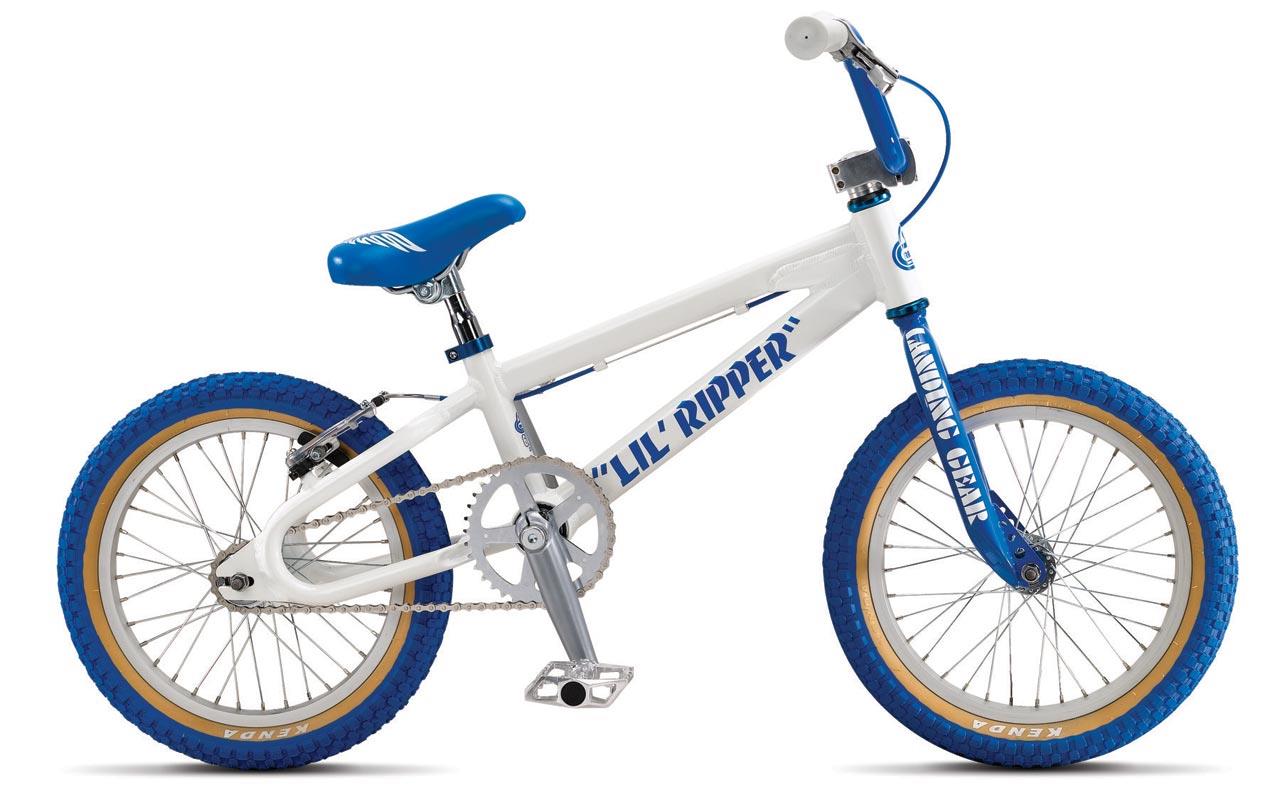

2010 SE Racing Lil' Ripper
Original specifications: BMX drivetrain · 16" wheels.
Planning to sell? Draft your listing
At a glance
Archive #20086- Model year
- 2010
- Category
- BMX
- Sizes
- 16.5" TT
- Colors
- Cool White
- In this record
- 23 specifications · archived image
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Cool White
- Frame
- 6061 Alloy
- Original equipment
- BMX
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061 Alloy · BMX · 16" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 Alloy |
| Fork | Lil' Landing Gear |
| Fork Material | Unicrown |
Drivetrain
| Component Group | BMX |
|---|---|
| Crankset | 3-piece chromoly 140mm, 36T teeth |
| Bottom Bracket | Euro sealed bearing Alloy cups |
| Cassette | Freewheel |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC Z410 |
| Pedals | FPD Alloy platform |
Brakes
| Brakes | Rush Mini V-Brake rear brakes, Rush 2-finger rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Tange Threadless |
|---|---|
| Handlebar | SE Wing Bar, 20.5" X 6" |
| Handlebar Extensions | Not included |
| Stem | SE Front Load alloy |
| Saddle | SE Slim Seat |
| Seatpost | SE Straight Post, 27.2mm diameter |
Wheels & Tires
| Hubs | SE Racing alloy |
|---|---|
| Rims | Alex C-1000, 32-hole |
| Spokes | 14ga. (2.0mm) |
| Front Tire | 16 x 2.125" Tioga Power Block |
| Wheel Size | 16" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
SE Straight Post
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
16 x 2.125" Tioga Power Block
Replacement search: 16x2.125 bicycle tire Before ordering: Check rim type and tire clearance.
Rush Mini V-Brake rear brakes
Rush 2-finger rear levers
More parts (1)Fewer parts
Alex C-1000
32-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 16 x 2.125" Tioga Power Block
- Drivetrain
- 1-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Euro sealed bearing Alloy cups
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Lil' Landing Gear · Unicrown
Drivetrain
Check drivetrain wear →Archived: Group: BMX · Crankset: 3-piece chromoly 140mm, 36T teeth · Bottom bracket: Euro sealed bearing Alloy cups · Cassette: Freewheel · Rear cogs: 1-speed, 16 teeth · Chain: KMC Z410
Brakes
Inspect the brakes →Archived: Brakes: Rush Mini V-Brake rear brakes, Rush 2-finger rear levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 16" wheels · Rims: Alex C-1000, 32-hole · Hubs: SE Racing alloy · Front tire: 16 x 2.125" Tioga Power Block
Controls and contact points
Archived: Headset: 1 1/8" Tange Threadless · Handlebar: SE Wing Bar, 20.5" X 6" · Stem: SE Front Load alloy · Seatpost: SE Straight Post, 27.2mm diameter · Saddle: SE Slim Seat · Pedals: FPD Alloy platform
