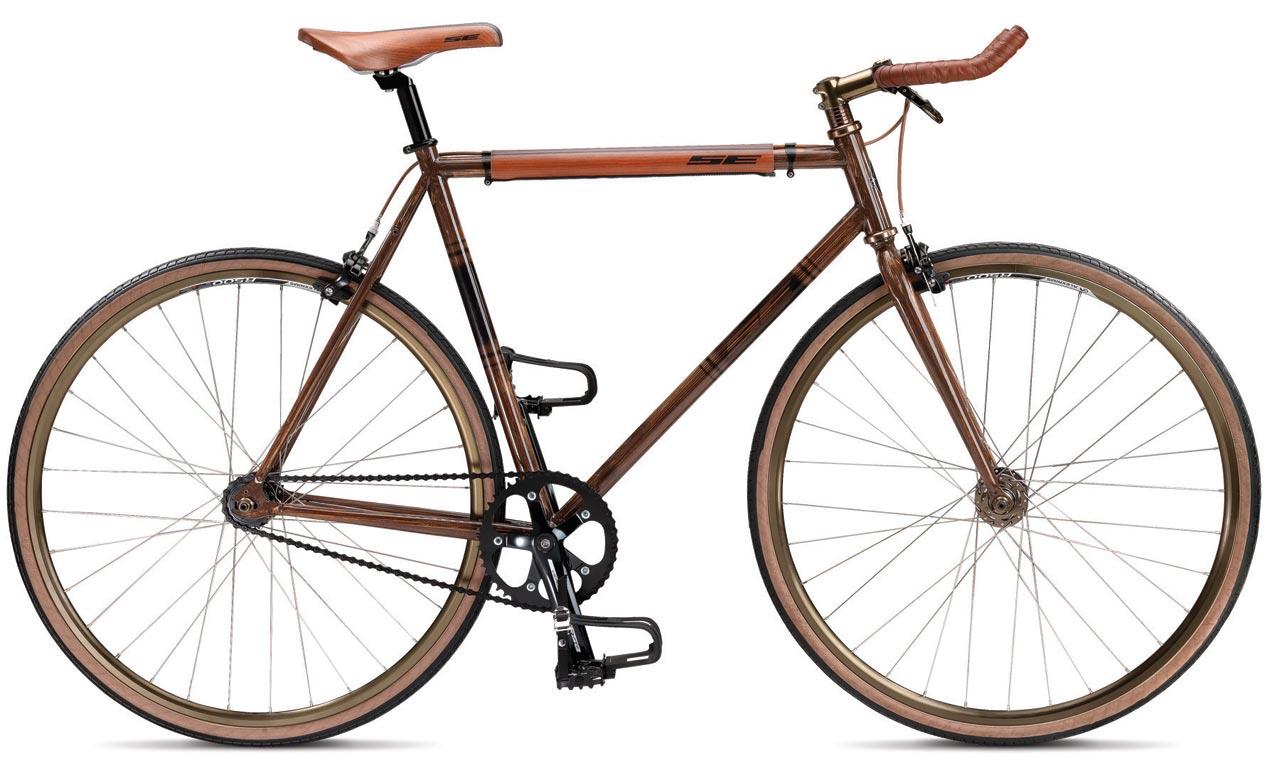

2010 SE Racing 700C Lager

Original specifications: Track Mix drivetrain · 700c wheels.

Share owner experience

At a glance

Archive #20116

Model year: 2010
Category: Track
Sizes: 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm
Colors: Midnight Black, Team Blue, Wood Grain
In this record: 22 specifications · archived image

Original buildCro-Moly Steel · Track Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

21 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

47cm49cm52cm54cm56cm58cm61cm

Published colors

Midnight BlackTeam BlueWood Grain

View 21 archived size/color combinations

Size	Color
47cm	Midnight Black
49cm	Midnight Black
52cm	Midnight Black
54cm	Midnight Black
56cm	Midnight Black
58cm	Midnight Black
61cm	Midnight Black
47cm	Team Blue
49cm	Team Blue
52cm	Team Blue
54cm	Team Blue
56cm	Team Blue
58cm	Team Blue
61cm	Team Blue
47cm	Wood Grain
49cm	Wood Grain
52cm	Wood Grain
54cm	Wood Grain
56cm	Wood Grain
58cm	Wood Grain
61cm	Wood Grain

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame Construction	TIG-welded
Frame Material	Cro-Moly Steel
Fork Material	CrMo Steel, unicrown crown

Drivetrain

Component Group	Track Mix
Crankset	FSA Vero, 46 teeth
Bottom Bracket	Euro Sealed
Cassette	Freewheel/cog
Rear Cogs	1-speed, 17 teeth
Chain	KMC Z410
Pedals	Wellgo alloy cage w/clip and strap

Brakes

Brakes	Tektro R316 Dual Pivot brakes, Tektro RL-570 Cross top mount levers

Cockpit & Contact Points

Headset	1 1/8" threadless Tange Alloy DX4
Handlebar	Alloy Bull-Horn
Handlebar Extensions	Not included
Stem	SE 3D Forged Alloy 0-degree
Saddle	SE Super Classic w/ Bottle Opener
Seatpost	SE Micro Adjust Alloy, 27.2mm diameter

Wheels & Tires

Hubs	SE Racing high flange sealed
Rims	Alex R-500, 32-hole
Spokes	Stainless, 14ga. (2.0mm)
Front Tire	700 x 28c Kenda Kwick Roller Sport
Wheel Size	700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

All published sizes46T · 17T · 1-speed

Ratio2.71:1

Estimated speed At 90 RPM Gear19.3 mph

Uses front tire 700C×28; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

700 x 28c Kenda Kwick Roller Sport

Search Amazon Search eBay

Retailer offers

Vittoria Zaffiro Pro V Clincher Tire Black, 700x28

700x28c

Replacement option

Competitive Cyclist ↗$31.21

Other replacement options (1)

Specialized SW Mondo 2Bliss Tire Black, 700x28

700x28c

Replacement option

Backcountry ↗$67.45

Seatpost · Original

SE Micro Adjust Alloy

27.2mm diameter

Search Amazon Search eBay

Retailer offers

Race Face Ride XC Seatpost Black, 27.2x375mm

Replacement option

Competitive Cyclist ↗$38.99

Backcountry ↗$38.99

Brake pads · Original

Tektro R316 Dual Pivot brakes

Tektro RL-570 Cross top mount levers

Search Amazon Search eBay

More parts (3)Fewer parts

Pedals · Original

Wellgo alloy cage w/clip and strap

Search Amazon Search eBay

Crankset · Original

FSA Vero

46 teeth

Search eBay

Rims · Original

Alex R-500

32-hole

Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 700 x 28c Kenda Kwick Roller Sport
Drivetrain: 1-speed
Seatpost diameter: 27.2 mm
Bottom bracket / shell: Euro Sealed

Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: · CrMo Steel, unicrown crown

Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.

Drivetrain

Check drivetrain wear →

Archived: Group: Track Mix · Crankset: FSA Vero, 46 teeth · Bottom bracket: Euro Sealed · Cassette: Freewheel/cog · Rear cogs: 1-speed, 17 teeth · Chain: KMC Z410

Check chain tension and chainline, rotate the drivetrain through a full revolution and confirm the rear axle or tensioning hardware cannot slip.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Tektro R316 Dual Pivot brakes, Tektro RL-570 Cross top mount levers

Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 700c wheels · Rims: Alex R-500, 32-hole · Hubs: SE Racing high flange sealed · Front tire: 700 x 28c Kenda Kwick Roller Sport

Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Controls and contact points

Archived: Headset: 1 1/8" threadless Tange Alloy DX4 · Handlebar: Alloy Bull-Horn · Stem: SE 3D Forged Alloy 0-degree · Seatpost: SE Micro Adjust Alloy, 27.2mm diameter · Saddle: SE Super Classic w/ Bottle Opener · Pedals: Wellgo alloy cage w/clip and strap

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
