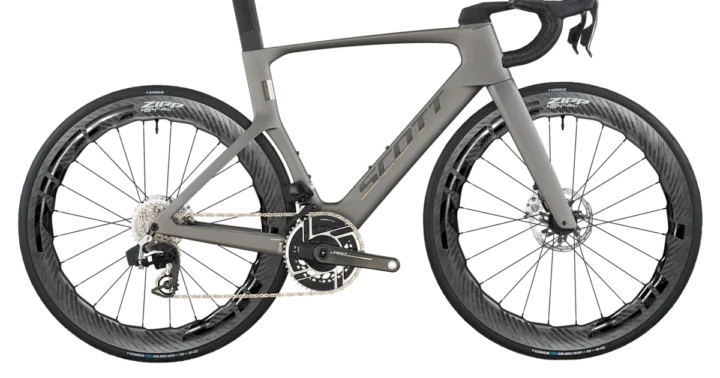

2026 Scott Foil RC Ultimate

Archived: Frame: FOIL RC HMX SL Road Race geometry, Replaceable Derailleur Hanger Internal cable routing · Fork: FOIL RC HMX SL Flatmount Disc 1" Eccentric Carbon steerer · Carbon Fiber

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: SRAM RED AXS HRD Shift-Brake System · Front derailleur: SRAM RED AXS Electronic Shift System · Rear derailleur: SRAM RED AXS 24 Speed Electronic Shift System · Crankset: SRAM RED Power Meter Crankset 48/35 · Bottom bracket: SRAM DUB PF ROAD 86.5 · Cassette: SRAM RED XG1290 E1 10-33 · Chain: SRAM RED

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: SRAM RED AXS HRD Shift-Brake System; Rotors: SRAM PACELINE X rotor 160/F and 140/R

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheel size: 700c · Wheels: Zipp 454 NSW TL Carbon, Front 12x100mm, Rear 12x142mmTA, Syncros SL Axle, Removable Lever with Tool · Front tire: Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C · Rear tire: Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: Acros AIF-626S · Handlebar: Syncros Creston iC SL Aero · Seatpost: Syncros Duncan SL Aero CFT · Saddle: Syncros Belcarra V 1.0 NEO Cut Out

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
