Velopedia Bicycle Archive

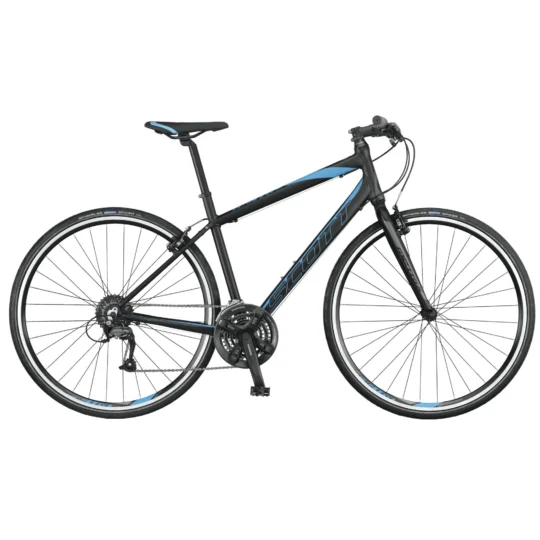

2013 Scott Metrix 40 Solution

Original specifications.

Share owner experience

No archive photo is available for this record.

At a glance

Archive #9240441

Model year: 2013
Category: City & Commuter
Sizes: XS, S, M, L
Colors: Gray
In this record: 18 specifications

Model history 1 other year

Browse other years

Compare side by side

Identification clues

2013 archived details

Published colors: Gray
Frame: Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAluminum

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSML

Published colors

Gray

Frameset

Frame Material	Aluminum
Fork	Aluminum

Drivetrain

Shifters	Shimano EF51 EZ Fire
Front Derailleur	Shimano
Rear Derailleur	Shimano Acera
Crankset	Shimano 48/38/28t
Bottom Bracket	Square Taper
Cassette	Shimano HG31 11x32t
Rear Cogs	3x8 Speeds
Chain	KMC Z7
Pedals	Wellgo 127S

Brakes

Brakes	Linear Pull

Cockpit & Contact Points

Headset	1 1/8" Threadless
Handlebar	Syncros R2.5
Stem	Alloy
Saddle	Scott SC-19
Seatpost	Alloy

Wheels & Tires

Front Tire	Schwalbe Road Cruiser 700x32

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes48/38/28T · 11–32T

Lowest0.88:1 Highest4.36:1 Total range499%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Chain · Original

KMC Z7

Search Amazon Search eBay

Retailer offers

SRAM PC-830 Chain One Color, 8 Speed

Replacement option

Competitive Cyclist ↗$11.00

Front tire · Original

Schwalbe Road Cruiser 700x32

Search Amazon Search eBay

Retailer offers

Goodyear Eagle Tubeless Tire Black, 700x32

700x32c

Replacement option

Competitive Cyclist ↗$59.95

Other replacement options (1)

Challenge Strada Pro Tubeless Tire Tan, 700x32

700x32c

Replacement option

Backcountry ↗$89.99

Cassette · Original

Shimano HG31 11x32t

Search Amazon Search eBay

More parts (4)Fewer parts

Brake pads · Original

Linear Pull

Search Amazon Search eBay

Pedals · Original

Wellgo 127S

Search Amazon Search eBay

Rear derailleur · Original

Shimano Acera

Search eBay

Handlebar · Original

Syncros R2.5

Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Schwalbe Road Cruiser 700x32
Bottom bracket / shell: Square Taper

Equipment inspection checks 8 checks based on 4 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: Aluminum · Fork: Aluminum

Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Drivetrain

Check drivetrain wear →

Archived: Shifters: Shimano EF51 EZ Fire · Front derailleur: Shimano · Rear derailleur: Shimano Acera · Crankset: Shimano 48/38/28t · Bottom bracket: Square Taper · Cassette: Shimano HG31 11x32t · Rear cogs: 3x8 Speeds · Chain: KMC Z7

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Linear Pull

Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.

Controls and contact points

Archived: Headset: 1 1/8" Threadless · Handlebar: Syncros R2.5 · Stem: Alloy · Seatpost: Alloy · Saddle: Scott SC-19 · Pedals: Wellgo 127S

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
