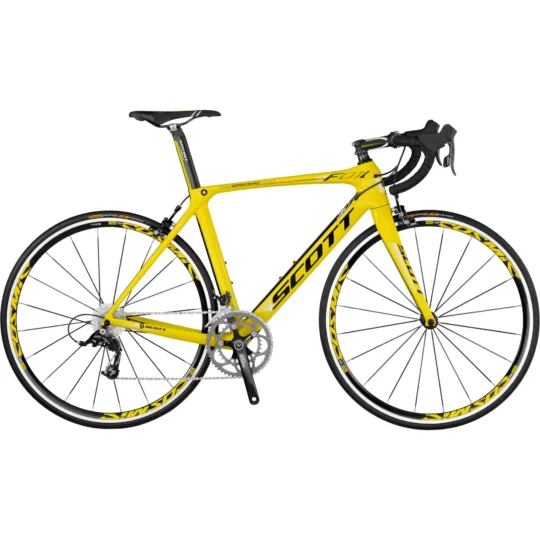

2013 Scott Foil 30
Original manufacturer specifications.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2013
- Category
- Road
- Sizes
- 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Black/Yellow
- Record coverage
- 21 preserved details · archived image
- Archive ID
- 9239475
Model history 1 other year
Frameset
| Frame Material | Carbon HMF NET |
|---|---|
| Fork | Carbon HMF NET |
Drivetrain
| Shifters | SRAM Rival |
|---|---|
| Front Derailleur | SRAM Rival |
| Rear Derailleur | SRAM Rival |
| Crankset | SRAM Rival 50/34t |
| Bottom Bracket | SRAM Press Fit |
| Cassette | Shimano Ultegra 11x28t |
| Rear Cogs | 2x10 Speeds |
| Chain | Shimano 105 |
Brakes
| Brakes | SRAM Rival |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Top/1 1/4" Lower |
|---|---|
| Handlebar | Syncros RR2.0 |
| Stem | Syncros FL2.0 |
| Saddle | Syncros RP2.0 |
| Seatpost | Ritchey Aero WCS |
Wheels & Tires
| Front Tire | Continental Ultra Race 700x25c |
|---|
Parts & serviceability
Find replacement parts
Shimano Ultegra 11x28t
Interpreted as Shimano Ultegra · 10-speed Named component · published drivetrain speed — verify exact version
Continental Ultra Race 700x25c
Named tire and published size
SRAM Press Fit
Named archived component — verify dimensions
More qualified parts (6)
Syncros RP2.0
Named archived component — verify exact version
SRAM Rival 50/34t
Component family — verify exact version
SRAM Rival
Interpreted as SRAM Rival · 10-speed Named component · published drivetrain speed — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
SRAM Rival
Interpreted as SRAM Rival · 10-speed Named component · published drivetrain speed — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
SRAM Rival
Interpreted as SRAM Rival · 10-speed Named component · published drivetrain speed — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Syncros RR2.0
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 16 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2013 Scott Foil 30 · Road Double · Published sizes: 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon HMF NET · Fork: Carbon HMF NET
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Rival · Front derailleur: SRAM Rival · Rear derailleur: SRAM Rival · Crankset: SRAM Rival 50/34t · Bottom bracket: SRAM Press Fit · Cassette: Shimano Ultegra 11x28t · Rear cogs: 2x10 Speeds · Chain: Shimano 105
Brakes
Inspect the brakes →Archived: Brakes: SRAM Rival
Controls and contact points
Archived: Headset: 1 1/8" Top/1 1/4" Lower · Handlebar: Syncros RR2.0 · Stem: Syncros FL2.0 · Seatpost: Ritchey Aero WCS · Saddle: Syncros RP2.0
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
