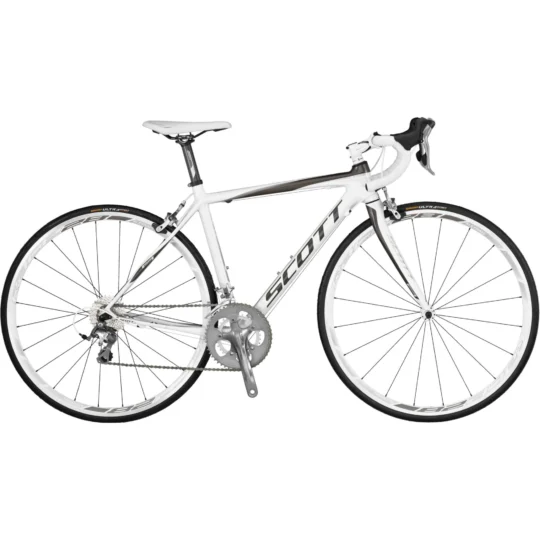

2013 Scott Contessa CR1 Comp

Archived: Frame: Carbon HMF NET · Fork: CR1 HMF NET

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano 105 · Front derailleur: Shimano Tiagra · Rear derailleur: Shimano 105 · Crankset: Shimano R565 50/34t · Bottom bracket: Shimano Hollowtech II · Cassette: Shimano Tiagra 12x30t · Rear cogs: 2x10 Speeds · Chain: Shimano Tiagra

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano R561

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Headset: 1 1/8" Threadless · Handlebar: Syncros RR2.0 · Stem: Syncros FL2.0 · Seatpost: Syncros R1.4 · Saddle: Syncros WR2.5

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
