Velopedia Bicycle Archive

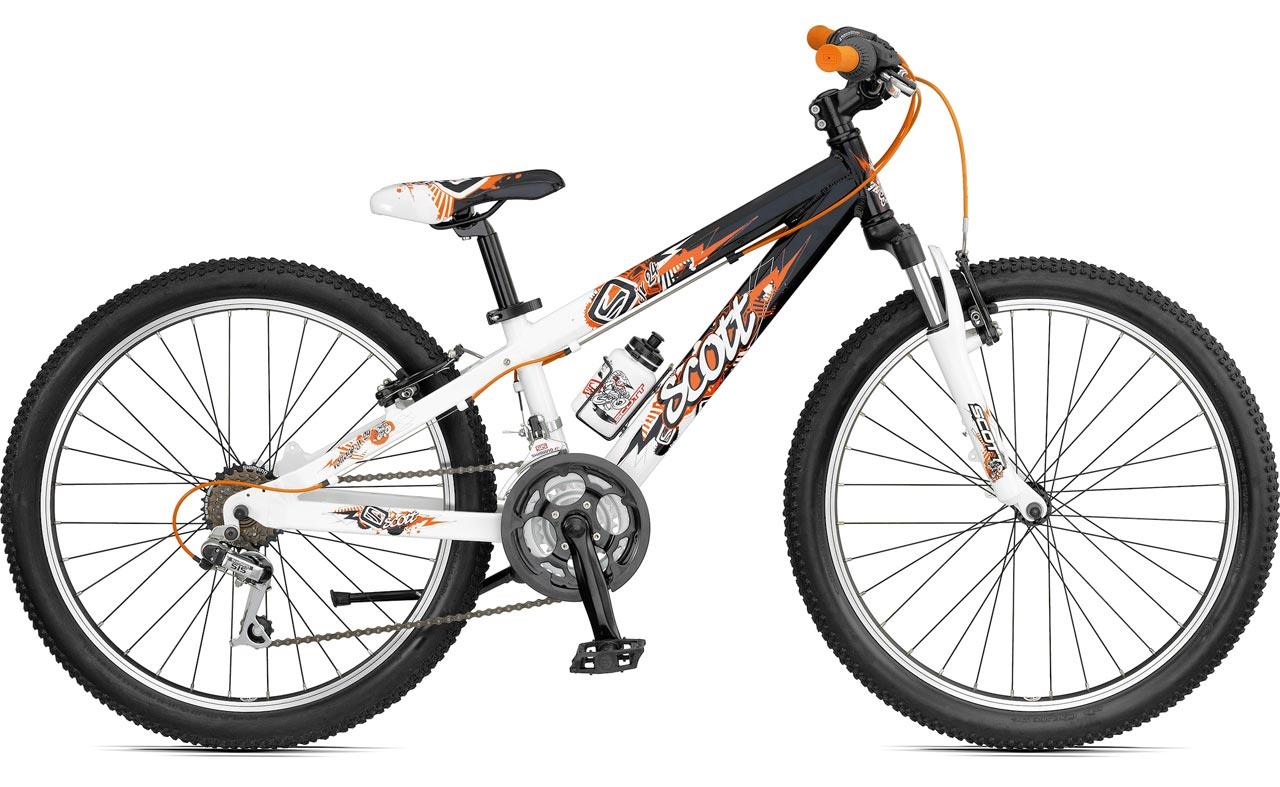

2010 Scott Voltage JR 24
Juvenile mountain bike, suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $349.99
- Sizes
- 24"
- Colors
- Black/White/Orange
- Archive ID
- 20467
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 Hydroformed Aluminum |
| Fork | RST Cappa C7, 50mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano SL-RS35-6 Revo Shifter |
| Front Derailleur | Shimano FD-M190, clamp on |
| Rear Derailleur | Shimano TY-22-6 |
| Crankset | Lasco Triple 152mm, 24/34/42 teeth |
| Bottom Bracket | TH M-1 |
| Cassette | Shimano MF-TZ 20 |
| Rear Cogs | 6-speed, 14 - 28 teeth |
| Pedals | VP-570 |
Brakes
| Brakes | Lee-Chi 209 P brakes, Tektro 325A-RS levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless VP-A71 |
|---|---|
| Handlebar | Scott Junior Uprise 560mm |
| Handlebar Extensions | Not included |
| Stem | HL-TDS-C41-8 15° |
| Saddle | SCT-6 Junior Version |
| Seatpost | Scott SP-252, 26.8mm diameter |
Wheels & Tires
| Hubs | Front: JY-431 Nutted, Rear: JY-432 Nutted |
|---|---|
| Rims | Alex C-1000, 32-hole |
| Spokes | UCP, 15ga. (1.8mm) straight gauge |
| Front Tire | 24 x 2.00" Scott Voltage |
| Wheel Size | 24" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
