Velopedia Bicycle Archive

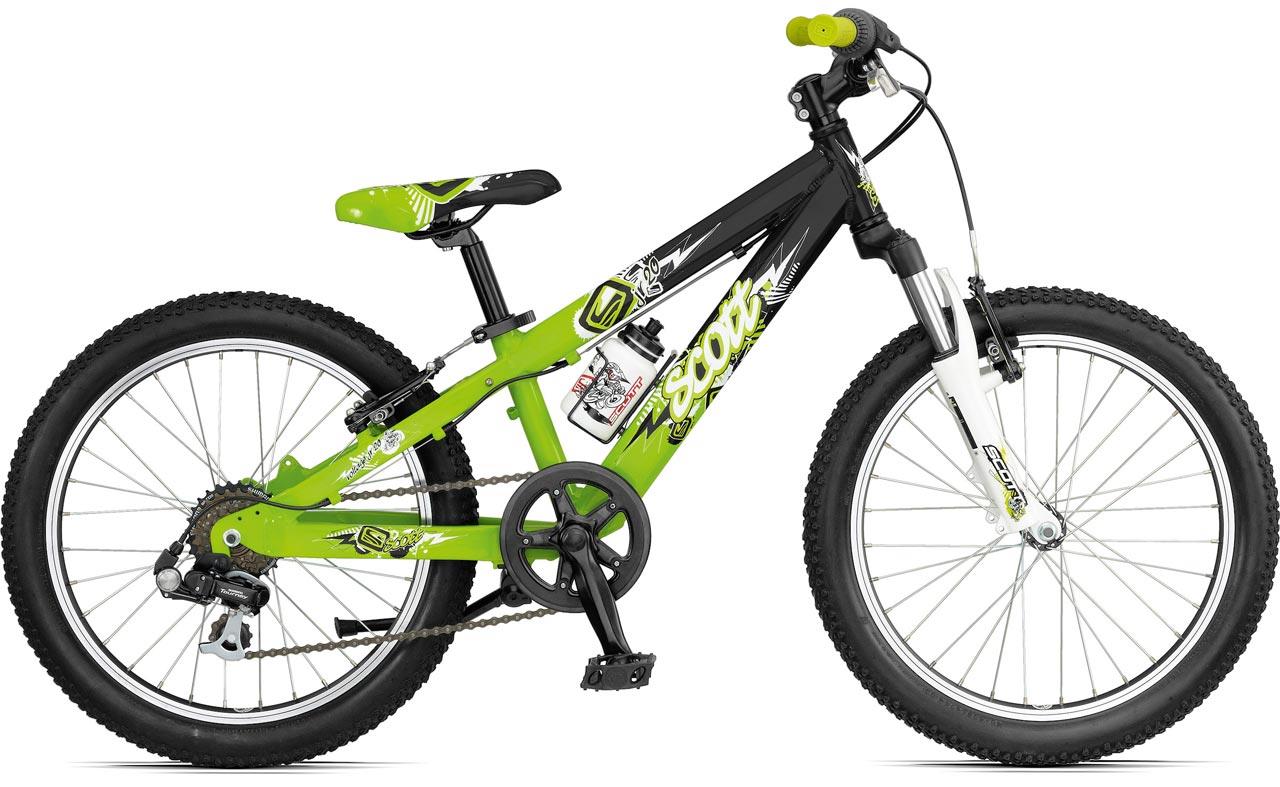

2010 Scott Voltage JR 20
Juvenile mountain bike, suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $299.99
- Sizes
- 20
- Colors
- Neon Green/Black
- Archive ID
- 20469
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 Alloy |
| Fork | RST Cappa 20, 50mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano SL-RS35-6 Revo Shifter |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano RD-FT30 |
| Crankset | Lasco Single 140mm, 36 teeth |
| Bottom Bracket | TH M-1 |
| Cassette | Shimano MF-TZ 20 |
| Rear Cogs | 6-speed, 14 - 28 teeth |
| Pedals | VP-580 |
Brakes
| Brakes | Lee-Chi 209 P brakes, Tektro JL510-TS levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless VP-A71 |
|---|---|
| Handlebar | Scott Junior Uprise 540mm |
| Handlebar Extensions | Not included |
| Stem | HL-TDS-C41-8 15° |
| Saddle | SCT-6 Junior Version |
| Seatpost | Scott SP-252, 26.8mm diameter |
Wheels & Tires
| Hubs | Front: JY-433 Nutted, Rear: JY-434 Nutted |
|---|---|
| Rims | Alex C-1000, 32-hole |
| Spokes | UCP, 15ga. (1.8mm) straight gauge |
| Front Tire | 20 x 2.0" Scott Voltage |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
