Lowest1.56:1
Highest4.82:1
Total range309%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

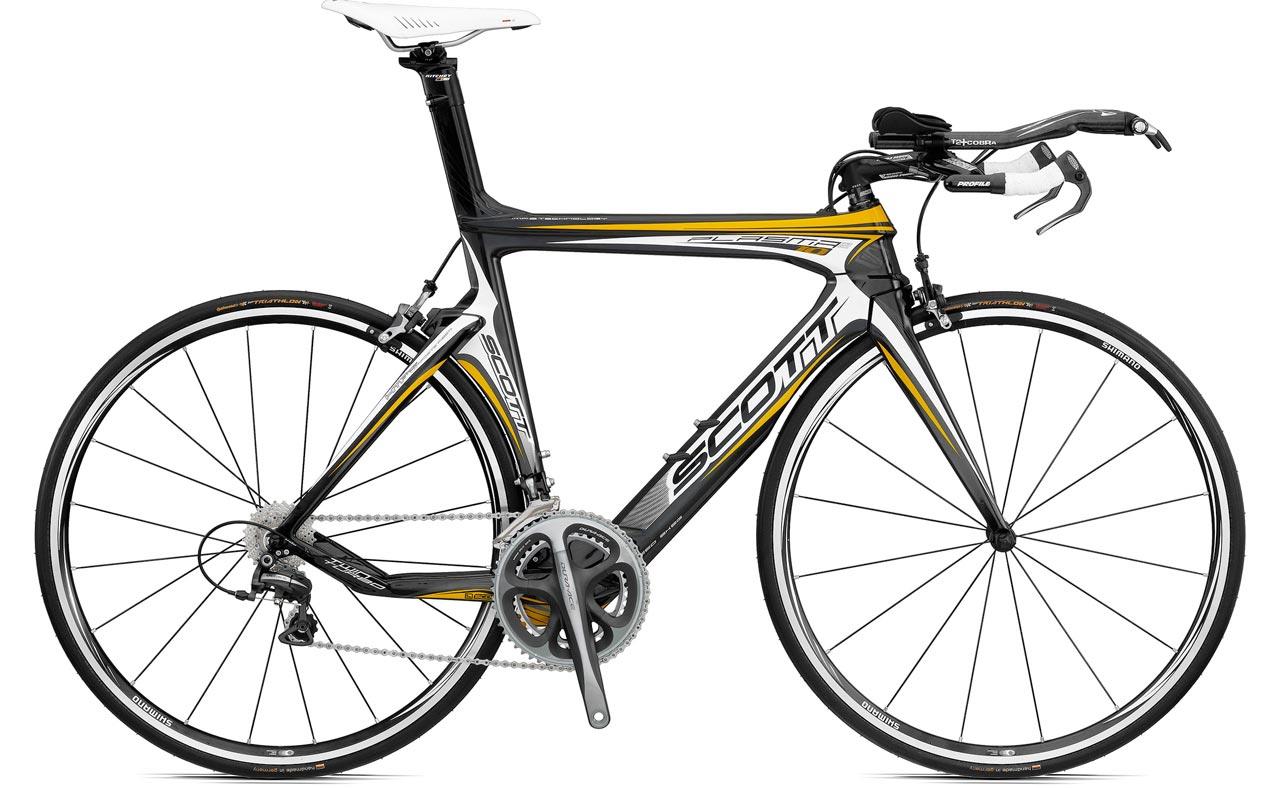

2010 Scott Plasma 10
Original specifications: Shimano Dura-Ace · 10-speed rear derailleur · 700c wheels · 18.94 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #20269- Model year
- 2010
- Category
- Road
- Original MSRP
- $4,499.99
- Sizes
- XXS/47, XS/49, S/52, M/54, L/56
- Colors
- Black/White/Yellow
- Weight
- 18.94 lb
- In this record
- 26 specifications · archived image · original MSRP
Model history 5 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Black/White/Yellow
- Frame
- Scott HMX NET carbon fiber
- Original equipment
- Shimano mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildScott HMX NET carbon fiber · Shimano mix · 700c wheels
Frameset
| Frame Construction | Monocoque |
|---|---|
| Frame Material | Scott HMX NET carbon fiber |
| Fork | Scott Plasma 2 |
| Fork Material | Carbon |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano Dura-Ace SL-BS 78 Bar End |
| Front Derailleur | Shimano Dura-Ace 7900, braze-on |
| Rear Derailleur | Shimano Dura-Ace 7900 |
| Crankset | Shimano Dura-Ace 7900, 39/53 teeth |
| Bottom Bracket | Shimano Dura-Ace |
| Cassette | Shimano Ultegra CS-6700 |
| Rear Cogs | 10-speed, 11 - 25 teeth |
| Chain | Shimano Ultegra 6700 |
| Pedals | Not included |
Brakes
| Brakes | Shimano Dura-Ace 7900 brakes, Profile QSC levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Ritchey Pro 45mm |
|---|---|
| Handlebar | Profile OZERO |
| Handlebar Extensions | Profile T2+ Cobra |
| Stem | Profile Hammer OS -80 degree |
| Saddle | Fizik Arione Tri 2 |
| Seatpost | Ritchey Stubby WCS, integrated diameter |
Wheels & Tires
| Hubs | Shimano WH-RS10 |
|---|---|
| Rims | Shimano WH-RS10, 16-hole/20-hole |
| Spokes | Shimano |
| Front Tire | 700 x 23c Continental Triathlon |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Shimano Ultegra 6700
Retailer offers
Shimano Ultegra CN-6701 Chain 10 Speed, 116 Link
Specification match
700 x 23c Continental Triathlon
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Continental Triathlon on eBaySponsored links
More parts (8)Fewer parts
Shimano Dura-Ace
Fizik Arione Tri 2
Shimano Dura-Ace 7900
39/53 teeth
Shimano Dura-Ace 7900
braze-on
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano Dura-Ace 7900
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Ritchey Stubby WCS
integrated diameter
1 1/8" integrated Ritchey Pro 45mm
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Continental Triathlon
- Drivetrain
- 10-speed
- Bottom bracket / shell
- Shimano Dura-Ace
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Monocoque · Fork: Scott Plasma 2 · Carbon
Drivetrain
Check drivetrain wear →Archived: Group: Shimano mix · Shifters: Shimano Dura-Ace SL-BS 78 Bar End · Front derailleur: Shimano Dura-Ace 7900, braze-on · Rear derailleur: Shimano Dura-Ace 7900 · Crankset: Shimano Dura-Ace 7900, 39/53 teeth · Bottom bracket: Shimano Dura-Ace · Cassette: Shimano Ultegra CS-6700 · Rear cogs: 10-speed, 11 - 25 teeth · Chain: Shimano Ultegra 6700
Brakes
Inspect the brakes →Archived: Brakes: Shimano Dura-Ace 7900 brakes, Profile QSC levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Shimano WH-RS10, 16-hole/20-hole · Hubs: Shimano WH-RS10 · Front tire: 700 x 23c Continental Triathlon
Controls and contact points
Archived: Headset: 1 1/8" integrated Ritchey Pro 45mm · Handlebar: Profile OZERO · Stem: Profile Hammer OS -80 degree · Seatpost: Ritchey Stubby WCS, integrated diameter · Saddle: Fizik Arione Tri 2 · Pedals: Not included
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
